Home> Ethernet optical module> 40g qsfp + optical module> Hz-qsfp28-40g-psm4 optical fiber module
Features· Hot Pluggable QSFP+ form factor· Supports bit rate up to 10.3125Gb/s per lane· Single MPO12 interface· 4x10.3125G/s 850nm VCSEL transmitter, PIN array detector· Operating case temperatu...
Features
·
Hot Pluggable QSFP+ form factor
· Supports bit rate up to 10.3125Gb/s per lane
· Single MPO12 interface
· 4x10.3125G/s 850nm VCSEL transmitter, PIN array detector
· Operating case temperature:0 to 70 °C
· Low power consumption <1.5W
· Maximum link length of 100m on OM3 Multimode Fi- ber (MMF)
· All-metal housing for superior EMI performance
· IIC management interface
· Single +3.3V power supply
· RoHS compliant (lead free)
Applications
· 40G Ethernet
· Infiniband QDR interconnects
· Breakout to 4x10G Base-SR Ethernet
Standards
· IEEE 802.3ba
· SFF-8636

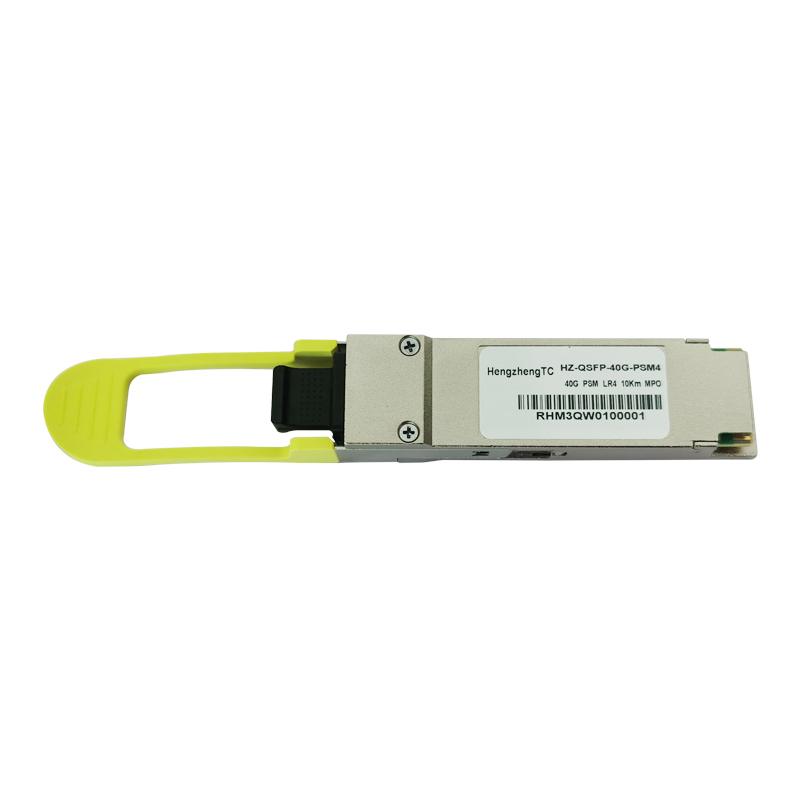

Product appearance:
