Achieve the functionality of a 1G domestically produced general-purpose network card chip

Possess completely independent intellectual property rights and achieve secure and controllable network card functionality

Possess network protocol hardware acceleration capability to achieve intelligent offloading of user network protocols

Supports different access speeds of 1G/100M/10M

Has a fully integrated Gigabit Ethernet Media Access Control (MAC) module and Physical Layer (PHY) module

Supports IP/TCP and IP/UDP checksum offloading

Supports packet filtering for MAC, VLAN, TCP_SYN, etc., as well as redirection of these packets

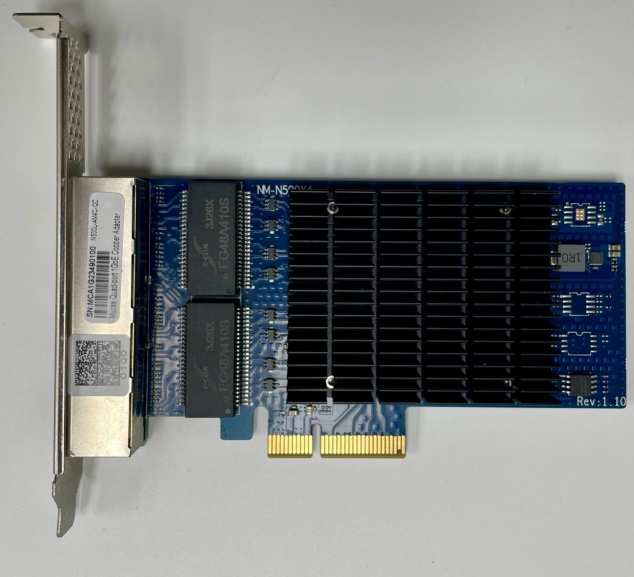

Supports 4-port 1 GbE network interfaces

Supports PCIe Gen2x4 host interface

Supports 1000Base-T/100Base-T/10Base-T, RGMII

Module with internally integrated Gigabit MAC and PHY

Supports network protocol acceleration (TCP/UDP, IP)

Supports 8 virtual machines (SR-IOV)

Supports remote network boot protocol (PXE)

Supports traffic control

Supports SM2/SM3/SM4 algorithms

Supports mainstream CPUs such as x86, MIPS, ARM, Alpha, etc.

Supports mainstream Windows and Linux operating systems

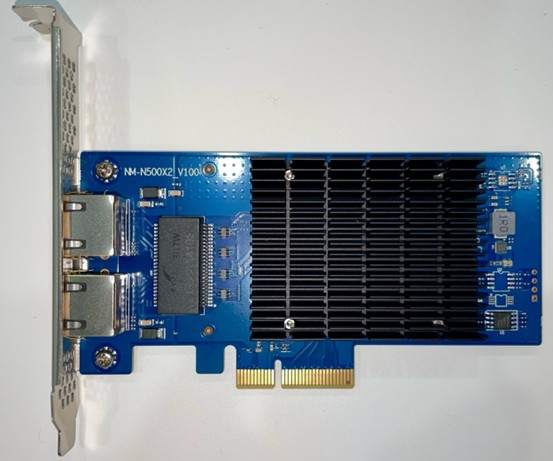

Supports 2 ports 1 GbE network interface

Supports PCIe Gen2x4 host interface

Supports 1000Base-T/100Base-T/10Base-T, RGMII

Module with internally integrated Gigabit MAC and PHY

Supports network protocol acceleration (TCP/UDP, IP)

Supports 8 virtual machines (SR-IOV)

Supports Remote Network Boot Protocol (PXE)

Supports flow control

Supports SM2/SM3/SM4 algorithms

Supports mainstream CPUs such as x86, MIPS1, ARM, Alpha, etc.

Supports mainstream Windows and Linux operating systems

Supports RSS, up to 256 queues (default configuration 32 queues)

Supports data packet offloading; supports IP/TCP and IP/UDP checksum offloading; supports TSO/GRO/TCO/RCO

Supports packet filtering; supports packet filtering and redirection based on MAC/VLAN/TCP_SYN and five-tuple.

Supports flow control mechanism; supports FC/PFC

Supports PTP; supports IEEE 1588v2; supports packet timestamp upload

Supports QoS, supports control of data traffic according to queue mechanisms

Supports a maximum 9564-byte jumbo frame

Supports IPV4/IPV6

Supports RSS, with each Ethernet port supporting up to 8 queues

Supports IPv4/IPv6, supports IP/TCP/UDP/SCTP checksum offloading, supports TSO/TCO/RCO

Supports MAC address filtering table, multicast address filtering table, VLAN filtering table

Supports redirection based on Layer 2 protocol numbers, five tuples (128 entries of SIP/DIP/SPORT/DPORT/PROTO), and TCP_SYN

Supports pause flow control, supports FC

Supports PTP, supports IEEE1588v2, supports packet upload with timestamps

Supports PXE

Supports sideband management NCSI

Supports a maximum 9564-byte jumbo frame, with 100% capture capability of all frames from 64 to 9564 bytes (including jumbo frames)

Supports VLAN, supports QinQ

IEEE Standard802.1P、802.1Q、802.2、802.3ac、802.3az、802.3x、802.3z、802.3ad

IEEE standards 802.1P, 802.1Q, 802.2, 802.3ac, 802.3az, 802.3x, 802.3z, 802.3ad support Virtual Ethernet Bridge (VEB)

Supports enabling up to 8 VFs, supports finding VF by VLAN/finding VF by destination MAC address

Achieve the functionality of a 1G domestically produced general-purpose network card chip

Possess completely independent intellectual property rights and achieve secure and controllable network card functionality

Possess network protocol hardware acceleration capability to achieve intelligent offloading of user network protocols

Using the domestic N500L-AM2 chip

With different access speeds of 1G/100M/10M

Supports IP/TCP and IP/UDP checksum offloading

Filtering of packets such as MACVLANTCP_SYN and redirection of these packets
