类型

光纤类型

连接器A,接口

连接器B,接口

芯数

线缆结构

外护套材质

极性

连接类型

展开更多

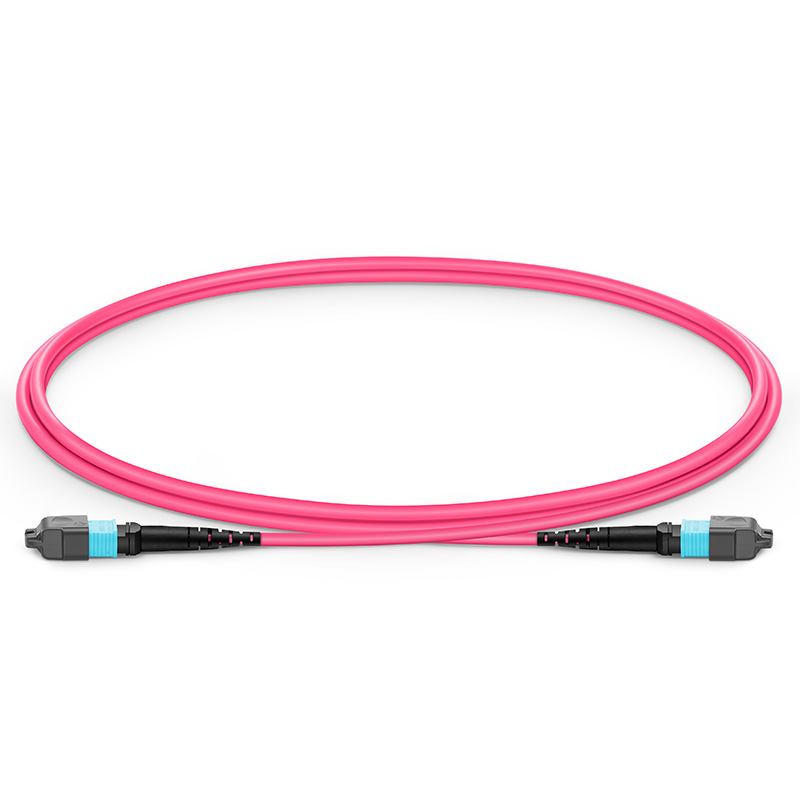

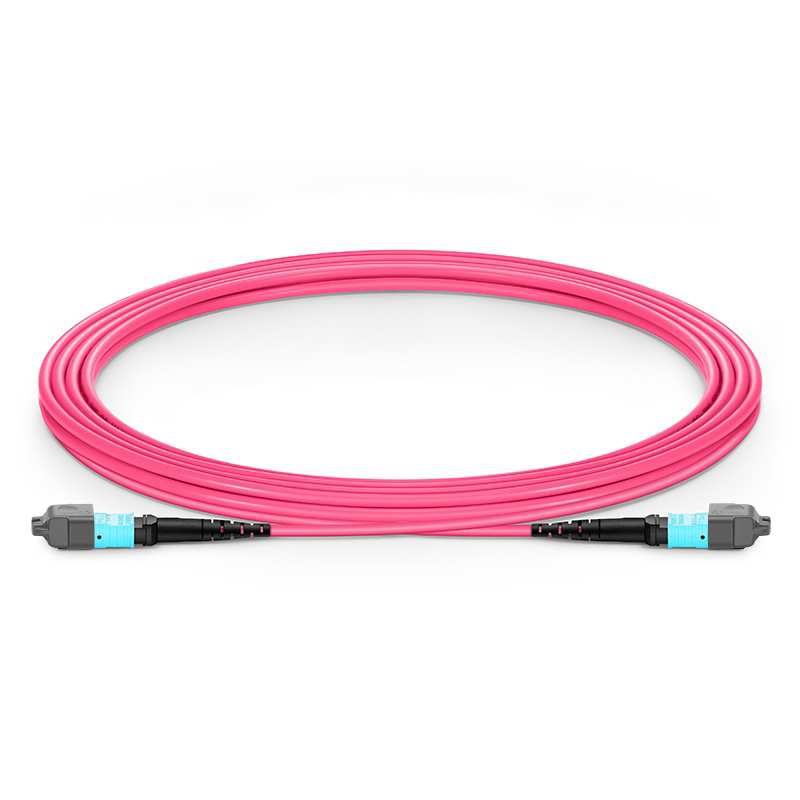

3m (10ft) OM4 8-Core MTP®-8 UPC (Female) to MTP®-8 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.25dB, Polarity A, Magenta

40/100G SR4

￥1

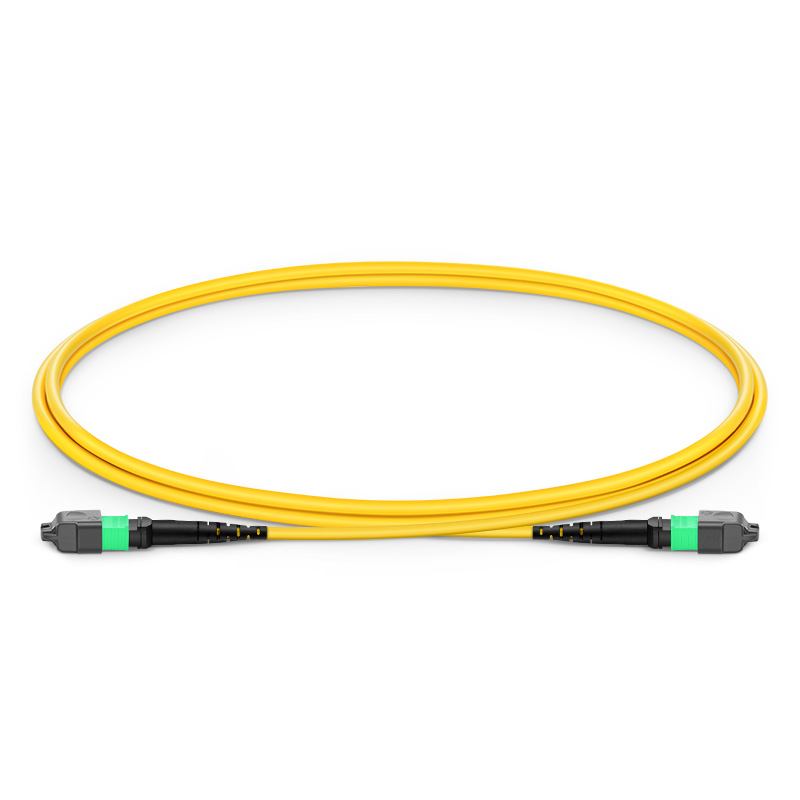

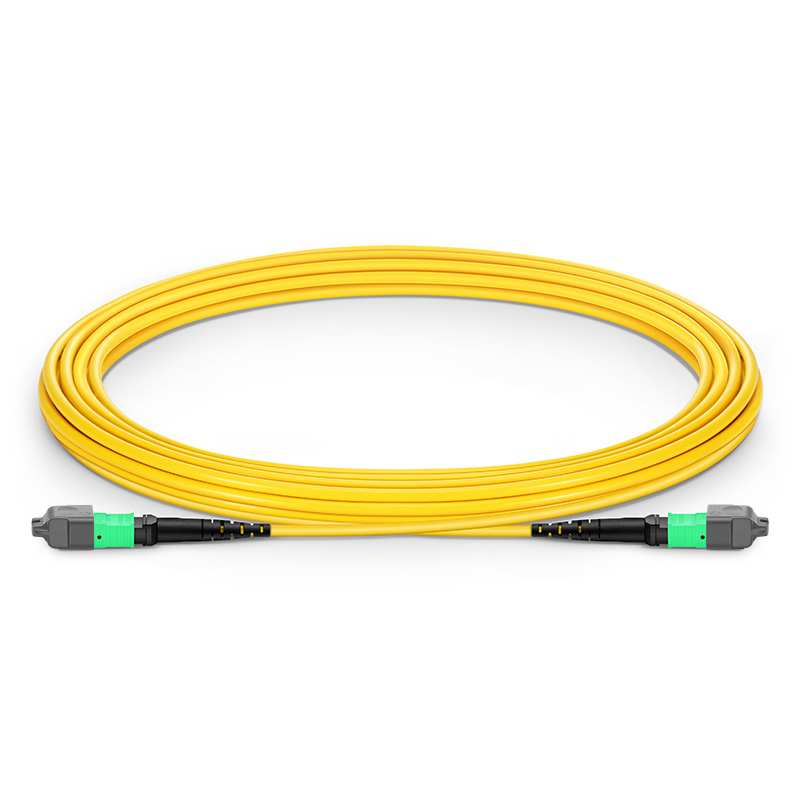

3m (10ft) OS2 12-core MTP®-12 APC (Female) to MTP®-12 APC (Female) Single-mode Fiber Patch Cord, LSZH, ≤0.75dB, Polarity B, Yellow

40G PLR4/100G PSM4/400G DR4/XDR4/PLR4

US Conec MTP® brand MPO connectors feature excellent low insertion loss of 0.35dB

Corning® SMF-28® Ultra fiber with a minimum bend radius of 10mm

OFNP flame rating, suitable for plenum spaces

Color-coded connector boots for easy identification

Supports InfiniBand and Ethernet protocols, ideal for high-speed fiber links

￥1

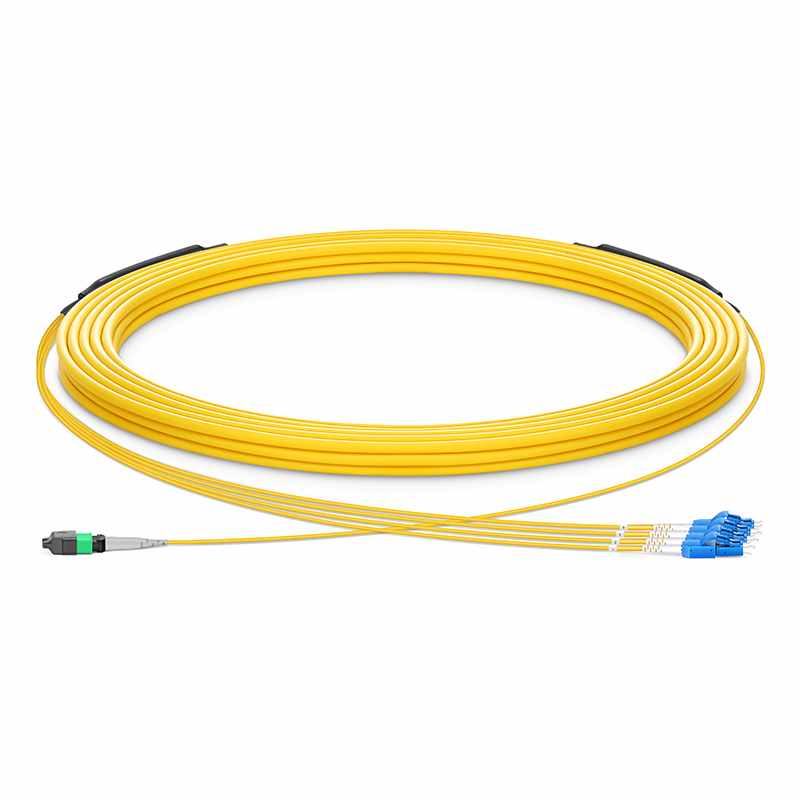

30m (98ft) OS2 8-Core MTP®-8 APC (Female) to 4LC UPC Uniboot Singlemode Hybrid Backbone Patch Cord, Duplex, PVC, 0.35dB, Polarity B, Double Sheath, Yellow

40/100G-10/25G

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for longer-distance applications between racks

￥980
1m (3ft) OM4 8-Core MTP®-8 UPC (Female) to 4 LC UPC Multimode Breakout Patch Cord, Duplex, PVC, 0.35dB, Polarity B, Magenta

40G SR4-10G SR|100G SR4-25G SR

￥330
1m (3ft) OM4 16-Core MTP®-16 APC (Female) to 8 LC UPC Uniboot Push-Pull Tab Multimode Breakout Patch Cord, Duplex, PVC, 0.35dB, Magenta

400G SR8-50G SR

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded MTP® connector boots for easy identification

Typically used for intra-rack cabling

￥830
1m (3ft) OS2 8-Core MTP®-8 APC (Female) to 4 MDC UPC Singlemode Breakout Patch Cord, Duplex, PVC, 0.35dB, Polarity B, Yellow

400G DR4-400G DR4

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Fiber cabling density is 3 times that of LC connectors

Tool-free A/B polarity reversal, simple and secure

￥1140
1m (3ft) OM4 12-core MTP®-12 APC (female) to 2x MTP®-4 APC (female) multimode conversion patch cord, PVC, 0.35dB, polarity B, magenta

IB 800G SR8 (2xSR4) to 4x200G SR2

US Conec MTP® connector with 0.35dB low insertion loss

Corning ClearCurve® Fiber Optic, minimum bend radius 7.5mm

Color-coded connector housing for easy identification

Convert 12 fiber connections into 4 fiber connections to achieve full utilization of the fibers

￥680
1m (3ft) OS2 12-core MTP®-12 APC (female) to 2x MTP®-4 APC (female) single-mode conversion patch cord, PVC, 0.35dB, polarity B, yellow

IB 800G DR8-4x200G FR4

US Conec MTP® connector with 0.35dB low insertion loss

Corning SMF-28® optical fiber, minimum bend radius 10mm

Color-coded connector housing for easy identification

Convert 12 fiber optic connections into 4 fiber optic connections to achieve full utilization of the fibers

￥830
1m（3ft）OM4 16芯MTP®-16 APC（母头）转2xMTP®-8 UPC（母头）多模转换跳线，PVC，0.35dB，极性B，品红色

Ethernet 400G SR8-2x200G SR4

US Conec MTP® connector with 0.35dB low insertion loss

Corning ClearCurve® Fiber Optic, minimum bend radius 7.5mm

Color-coded connector housing for easy identification

Convert 16 fiber optic connections into 8 fiber optic connections to make full use of the fibers

￥830
1m (3ft) OM4 24-fiber MTP®-24 UPC (female) to 2x MTP®-12 UPC (female) multimode breakout patch cord, PVC, 0.35dB, polarity A, magenta

MTP conversion jumper, MTP®-24 (female) UPC to 2x MTP®-12 (female) UPC, 24 fibers, OM4, LSZH

US Conec MTP® connector with 0.35dB low insertion loss

Corning ClearCurve® fiber optic cable, minimum bend radius 7.5mm

Color-coded connector housing for easy identification

Provides conversion from 24-core to 12-core fiber connections to achieve full utilization of fiber.

￥920
1m (3ft) OS2 24-core MTP®-24 APC (female) to 2x MTP®-12 APC (female) single-mode conversion patch cord, PVC, 0.35dB, polarity A, yellow

MTP® conversion jumper, MTP®-24 (female) APC to 2x MTP®-12 (female) APC, 24 cores, OS2, LSZH, polari

US Conec MTP® connector with 0.35dB low insertion loss

US Conec MTP® connector with 0.35dB low insertion loss

Color-coded connector housing for easy identification

Provides conversion from 24-core to 12-core fiber connections to achieve full utilization of fiber.

￥1400
1m (3ft) OS2 24-core MTP®-24 APC (female) to 2x MTP®-8 APC (female) single-mode conversion patch cord, PVC, 0.35dB, polarity B, yellow

MTP® conversion jumper, MTP®-24 (female) APC to 3x MTP®-8 (female) APC, 24 fibers, OS2, LSZH, polari

US Conec MTP® connector with 0.35dB low insertion loss

Corning SMF-28® optical fiber, minimum bend radius 10mm

Color-coded connector housing for easy identification

Provides conversion from 24-core to 8-core fiber connections to achieve full utilization of fiber.

￥1700
1m (3ft) OS2 16-Core MTP®-16 APC (Female) to 8 LC UPC Singlemode Breakout Patch Cord, Duplex, PVC, 0.75dB, Yellow

800G XDR8-100G FR

US Conec MTP® connector with a standard insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for intra-cabinet cabling

￥1140
3m (10ft) OM4 24-core 2x MTP®-12 UPC (male) to 3x MTP®-8 UPC (female) multimode conversion patch cord, PVC, maximum 0.35dB, Polarity A, magenta color

MTP® conversion jumper, 2xMTP®-12 (male) UPC to 3xMTP®-8 (female) UPC, 24 fibers, OM4, PVC, polarity

US Conec MTP® connector with 0.35/0.25dB low insertion loss

Corning ClearCurve® Fiber Optic, minimum bend radius 7.5mm

Color-coded connector housing for easy identification

Convert 12 fiber connections into 8 fiber connections to achieve full utilization of the fibers

￥1520
1m (3ft) OS2 8-Fiber MTP®-8 APC Female to 4 LC UPC Singlemode Breakout Patch Cord, Duplex, PVC, 0.35dB, Polarity B, Yellow

40G PLR4-10G LR |100G PSM4-25G LR

US Conec MTP® Connector with low insertion loss of 0.35dB

Corning SMF-28® Fiber with minimum bending radius of 10mm

Color-coded MTP® connector boots for easy identification

Typically used for intra-cabinet cabling

￥430

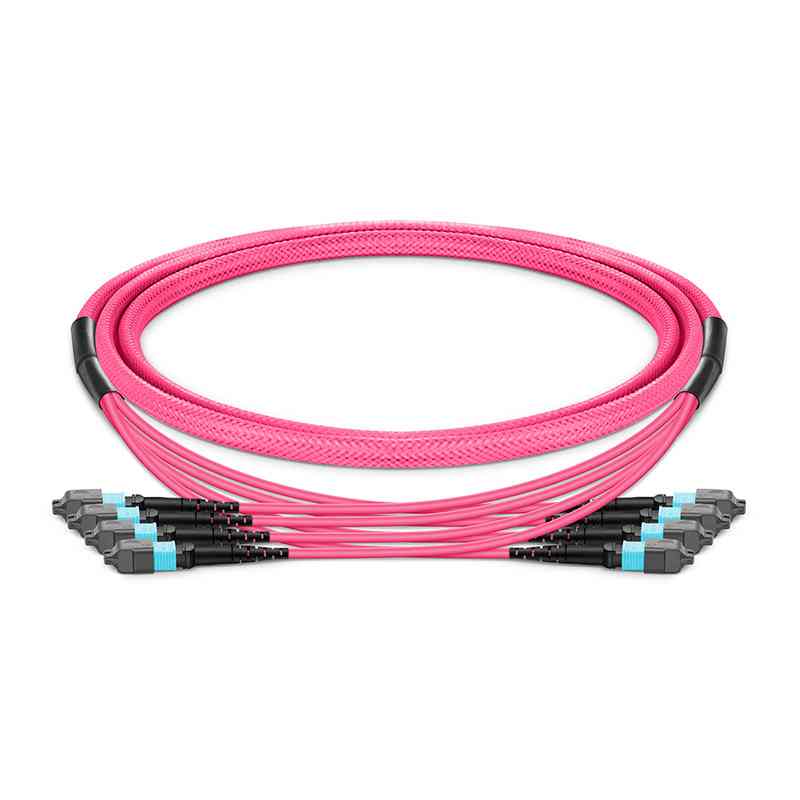

10m (33ft) OM4 48-Core (4x12-Core) MTP®-12 UPC (Male) to MTP®-12 UPC (Male) Multimode Backbone Patch Cord, LSZH, 0.35dB, Polarity B, Braided Mesh Outer Jacket, Magenta

40/100G

US Conec MTP® connector with low insertion loss of 0.25dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Suitable for plenum spaces

Color-coded connector boots for easy identification

Designed for longer-distance applications between racks

￥3560
