MTP/MPO fiber patch cord_MTP/MPO Fiber Patch Cord_Fiber Patch Cord_Product Center

Number of cores

Fiber optic type

Connector A, interface

Connector B, interface

Outer sheath material

Polarity

Connection Type

展开更多

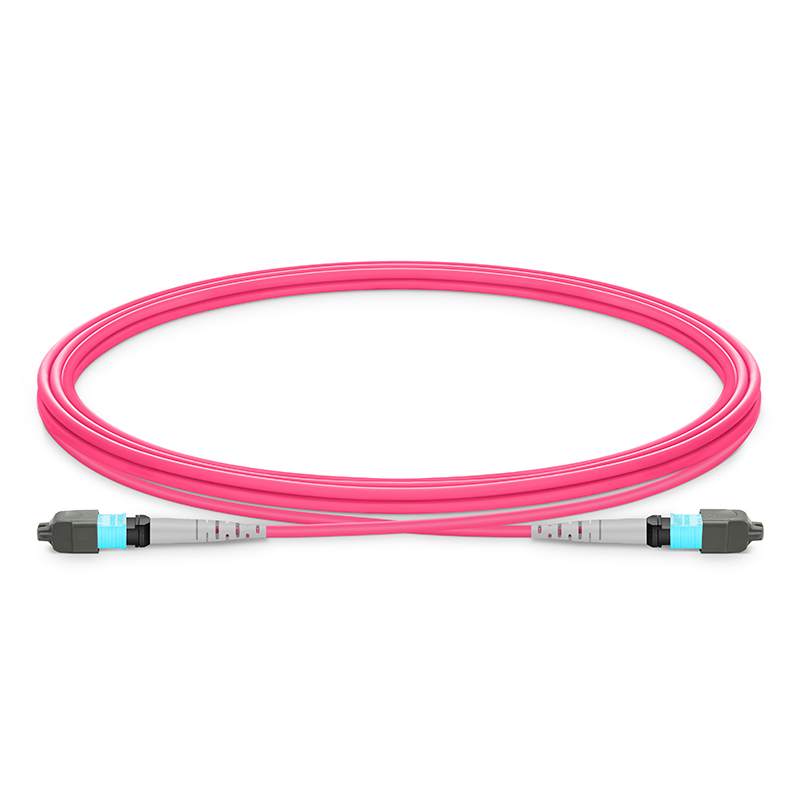

3m (10ft) OM4 8-Core MTP®-8 UPC (Female) to MTP®-8 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.25dB, Polarity A, Magenta

40/100G SR4

￥1

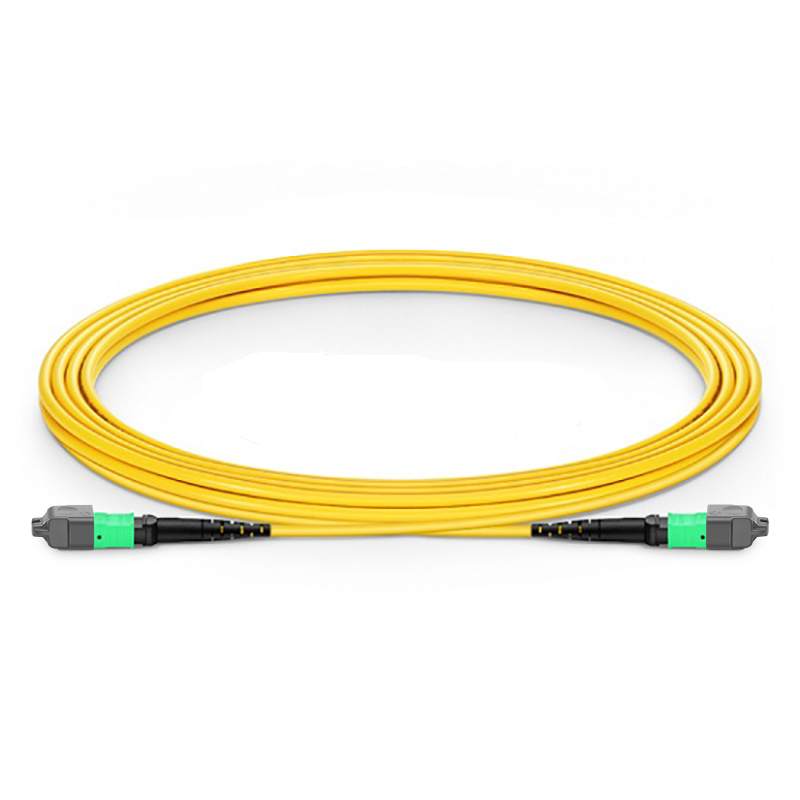

3m (10ft) OS2 12-core MTP®-12 APC (Female) to MTP®-12 APC (Female) Single-mode Fiber Patch Cord, LSZH, ≤0.75dB, Polarity B, Yellow

40G PLR4/100G PSM4/400G DR4/XDR4/PLR4

US Conec MTP® brand MPO connectors feature excellent low insertion loss of 0.35dB

Corning® SMF-28® Ultra fiber with a minimum bend radius of 10mm

OFNP flame rating, suitable for plenum spaces

Color-coded connector boots for easy identification

Supports InfiniBand and Ethernet protocols, ideal for high-speed fiber links

￥1
3m (10ft) OM4 12-Core MTP®-12 UPC (Female) to MTP®-12 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.25dB, Polarity B, Magenta

40/100G SR4

￥1
1m (3ft) Senko OM3 24-Core MPO®-24 UPC (Female) to MPO®-24 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity C, Aqua

100G SR10

￥1

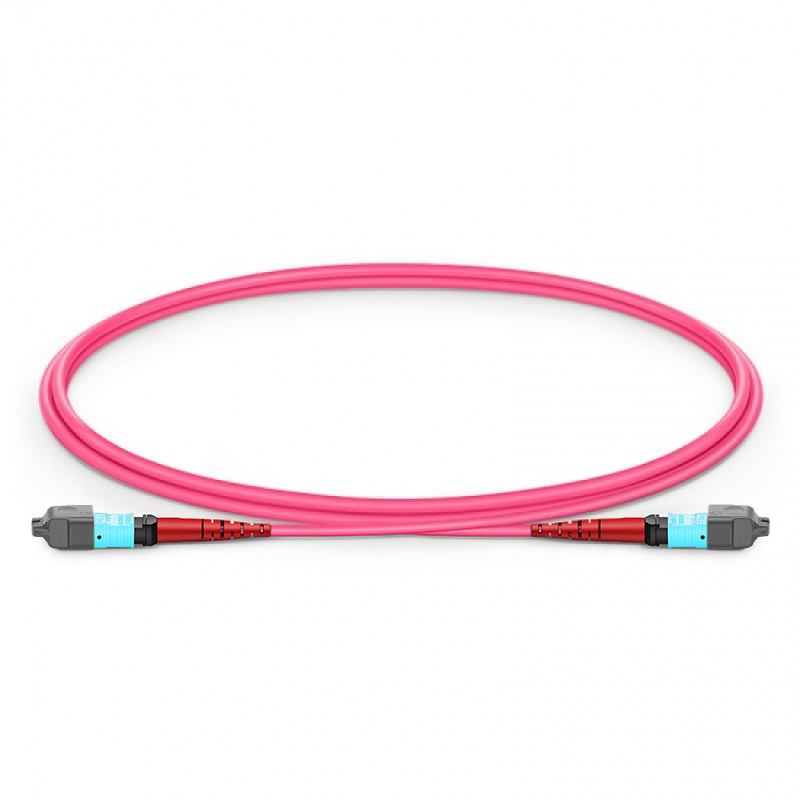

3m (10ft) OM4 8-Core MTP®-8 UPC (Female) to MTP®-8 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.25dB, Polarity B, Magenta

40/100G SR4

￥1
2m 12-Core MTP® (Female) to MTP® (Female) OS2 Single-mode Armored Backbone Fiber Patch Cord, Polarity B, LSZH, Yellow

40G PLR4/100G PSM4

Spiral armor provides impact resistance and rodent-proofing properties

US Conec MTP® connector with a typical insertion loss of 0.15dB

Corning bend-insensitive fiber with 20/10D (dynamic/static) minimum bend radius

Maximum tensile strength of 400N

Ideal choice for 40G/100G indoor connections

Indoor routing includes pathways between data center racks, raised floors, and underfloor areas

￥650
1m (3ft) OS2 16-Core MTP®-16 APC (Female) to MTP®-16 APC (Female) Single-mode Fiber Patch Cord, LSZH, 0.75dB, Yellow

800G DR8/XDR8

US Conec MTP® connector with a standard insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for intra-rack cabling

￥1940
3m (10ft) OM4 12-Core MTP®-12 UPC (Female) to MTP®-12 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.25dB, Polarity A, Magenta

40/100G SR4

￥1
1m (3ft) OM5 24-Core MTP®-24 UPC (Female) to MTP®-24 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity A, Lime Green

MTP®-24 Fiber Patch Cord, Female-Female, UPC, 12-Core, OM5, LSZH, 0.35dB, Polarity A

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

WBMMF solutions support at least 4 wavelengths

￥1290
1m (3ft) OM5 12-Core MTP®-12 UPC (Female) to MTP®-12 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity A, Lime Green

MTP-12光纤跳线，母-母，UPC，12芯，OM5，LSZH，0.35dB，极性A

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

WBMMF solutions support at least 4 wavelengths

￥600
2m 12-Core MTP® (Female) to MTP® (Female) 10G Multimode OM4 Armored Backbone Patch Cord, Polarity B, LSZH, Magenta

40/100G SR4

￥1
2m (7ft) OS2 12-Core MTP® PRO-12 APC (Male) to MTP® PRO-12 APC (Male) Singlemode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Yellow

Convert guide pins and polarity

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Allows field conversion of guide pins and polarity

￥830
2m (7ft) OM4 12-Core MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Magenta

转换引脚和极性

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

Allows field conversion of guide pins and polarity

￥760
1m (3ft) OM4 12-Core MTP®-12 APC (Female) to MTP®-12 APC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Magenta

InfiniBand NDR 400G SR4/800G SR8 PAM4

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

Allows field conversion of guide pins and polarity

￥1
1m (3ft) OM4 16-Core MTP®-16 APC (Female) to MTP®-16 APC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Magenta

400G SR8

￥1130
1m (3ft) OM4 24-Core MTP®-24 UPC (Female) to MTP®-24 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity A, Magenta

100G SR10

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

Typically used for intra-rack cabling

￥910
