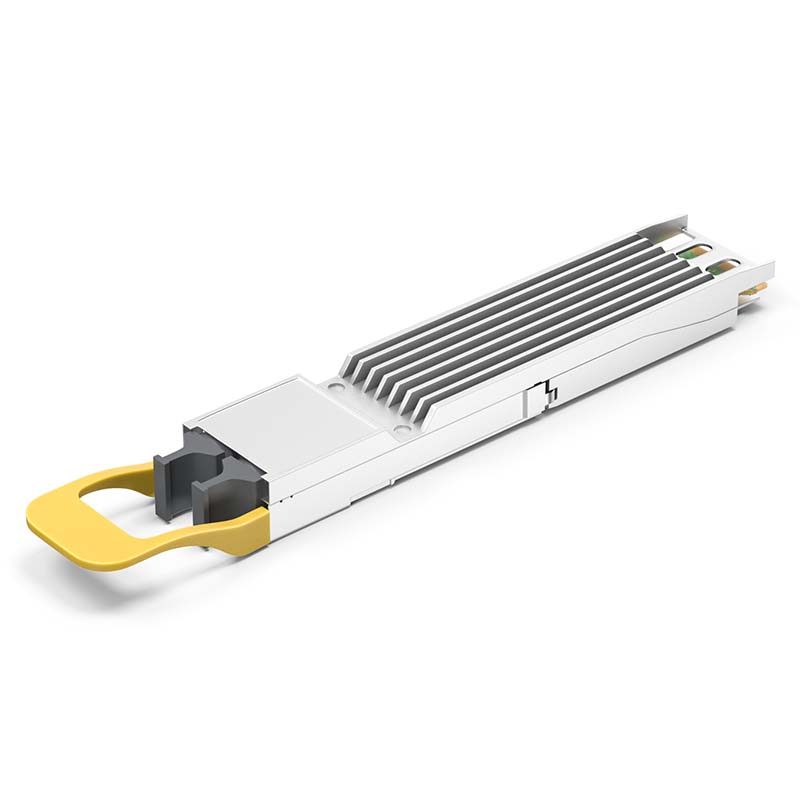

Meets InfiniBand NDR end-to-end system requirements

Built-in Marvell 6nm DSP chip, maximum power consumption: 16W

OSFP with top heatsink, designed for Quantum-2 liquid-cooled switches

Supports 800G-to-800G links between switches or 800G-to-dual 400G ConnectX-7 NIC connections

Converts 8×100G-PAM4 electrical signals into 2 parallel 4×100G-PAM4 optical signals

Hardware-verified for full compatibility with NVIDIA QM9700/9790 devices

Compliant with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety; supports digital diagnostic monitoring (DDM/DOM)

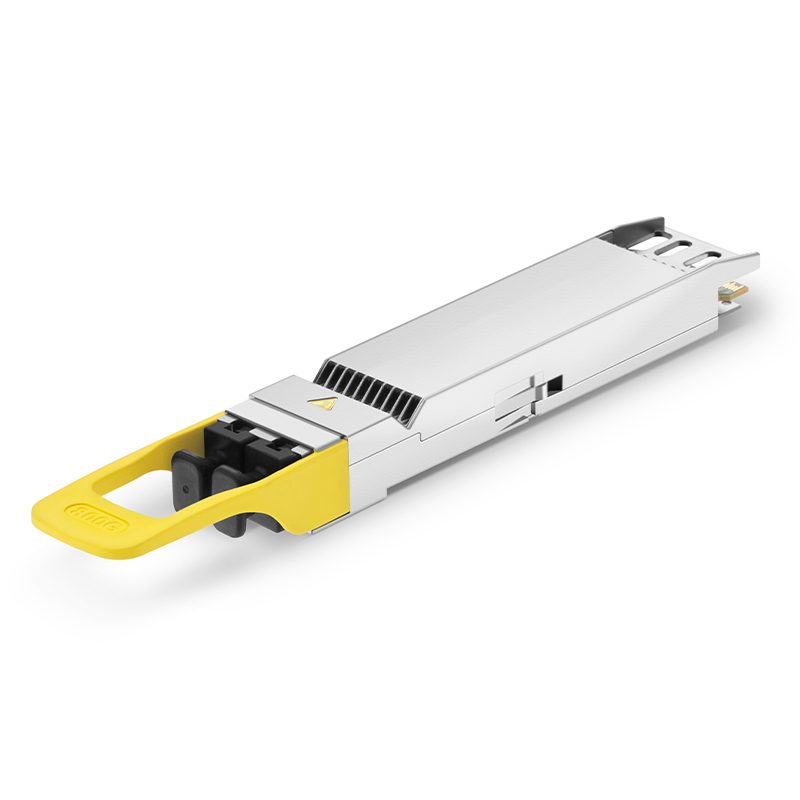

Meets InfiniBand NDR end-to-end system requirements

Built-in Broadcom 7nm DSP chip, maximum power consumption: 16.5W

OSFP with top heatsink, designed for Quantum-2 liquid-cooled switches

Supports 800G-to-800G links between switches or 800G-to-dual 400G ConnectX-7 NIC connections

Converts 8×100G-PAM4 electrical signals into 2 parallel 4×100G-PAM4 optical paths

Hardware-verified for full compatibility with NVIDIA QM9700/9790 devices

Compliant with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety; supports digital diagnostic monitoring (DDM/DOM)

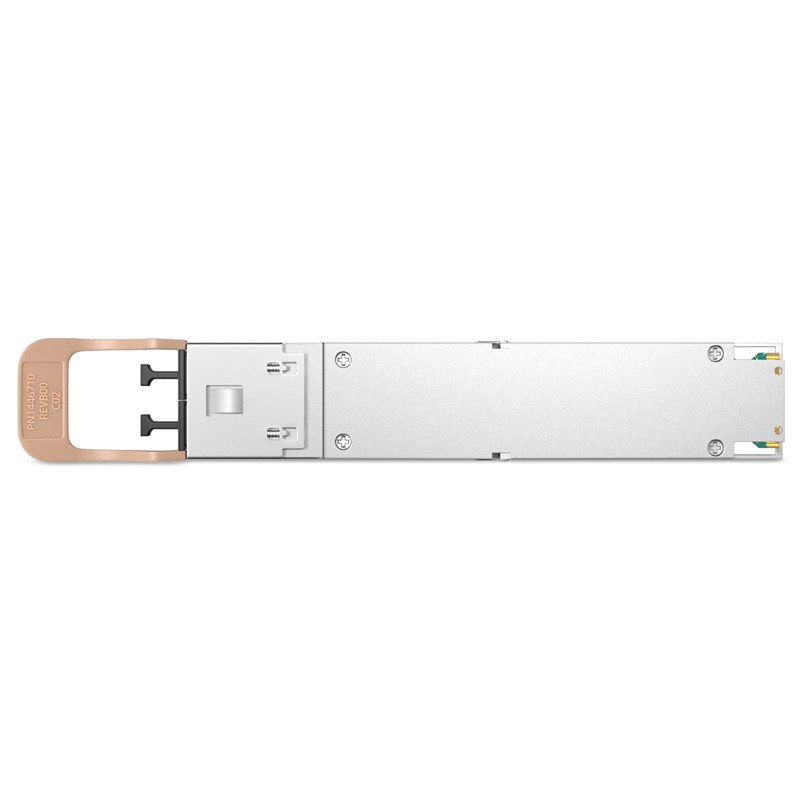

Meets InfiniBand NDR end-to-end system requirements

Maximum power consumption: 17W

OSFP with top heatsink, designed for Quantum-2 liquid-cooled switches

Supports 800G-to-800G links between switches or 800G-to-dual 400G ConnectX-7 NIC connections

Converts 8×100G-PAM4 electrical signals into 2 parallel 4×100G-PAM4 optical signals

Hardware-verified for full compatibility with NVIDIA QM9700/9790 devices

Compliant with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety; supports digital diagnostic monitoring (DDM/DOM)

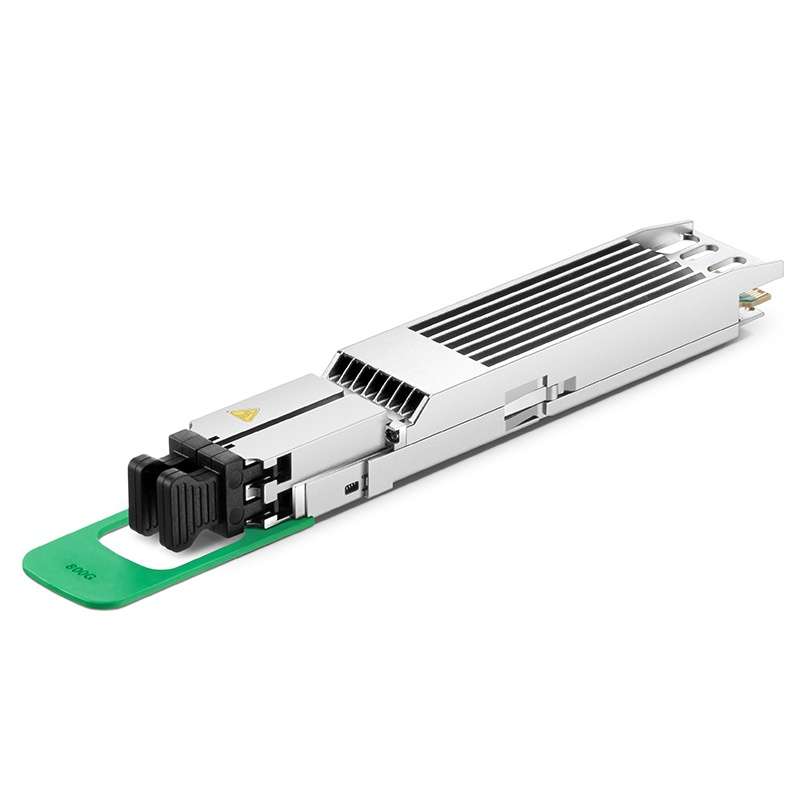

Meets InfiniBand NDR end-to-end system requirements

Built-in Broadcom 7nm DSP chip, maximum power consumption is 16.5W

OSFP with top heatsink for Quantum-2 liquid-cooled switches

Supports 800G to 800G links between switches

Converts 8×100G-PAM4 electrical signals into 2×4×100G-PAM4 optical signals for multiplexing

Verified on real hardware to ensure full compatibility with NVIDIA QM9700/9790 devices

Complies with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety, supports digital diagnostic monitoring (DDM/DOM)
