Model

HZ1I350F4OCP

Control chip

Intel MHI350AM4 Ethernet controller

Plate type

OCP add-in card

Bus type

OCP 2.0 x4

Network Cable Connector Type

SFP

Network port transmission rate

10/100/1000Mbps

I/O Port

4*SFP

Bus speed

OCP v2.0 8 GT/sec

Connector

OCP x4 gold fingers

Input voltage

Voltage: 3.3V_AUX，12V，3.3V

LED

Link up LED: Yellow when connected, off when not connected

Activity LED: Green (steady when no data, blinking when there is data)

Operating system support

Windows, Windows Server, Linux, Vmware ESX/ESXi, Ubuntu, CentOS，Red Hat，SUSE Linux Enterprise Sever，FreeBSD

Other technical parameters

Compatible CPUs: Shenwei, Phytium, Kunpeng, Hygon, Zhaoxin, Loongson, Intel, AMD, etc.

Interface adaptation medium: optical module

4 x 1GbE SFP

PCB Physical Data

Length and width:115*76mm

Stent:82.5mm*15.2mm

Operating temperature

0°C to 55°C

Working humidity

0%-85%, non-condensing

Storage Temperature

-10°C to 60°C

Lead-free process

RoHS-R6

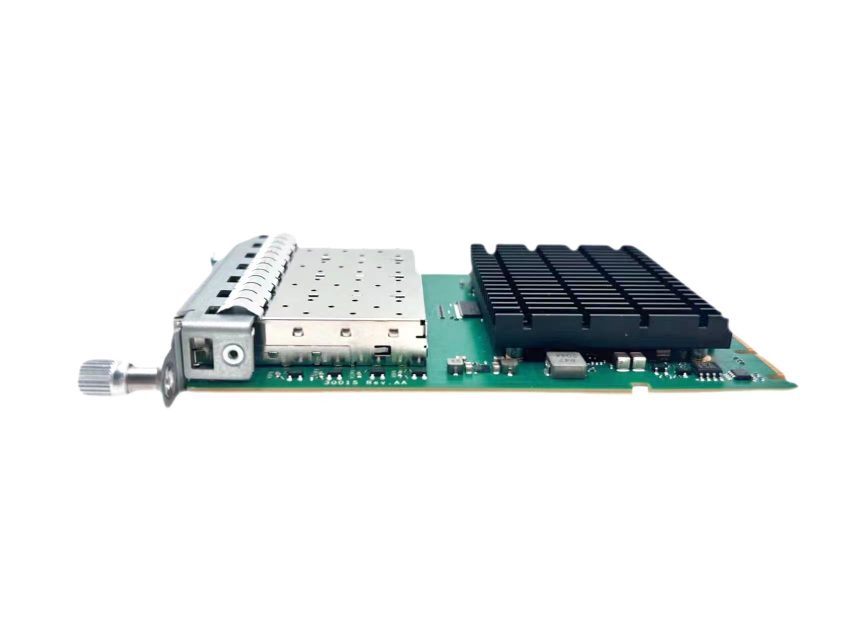

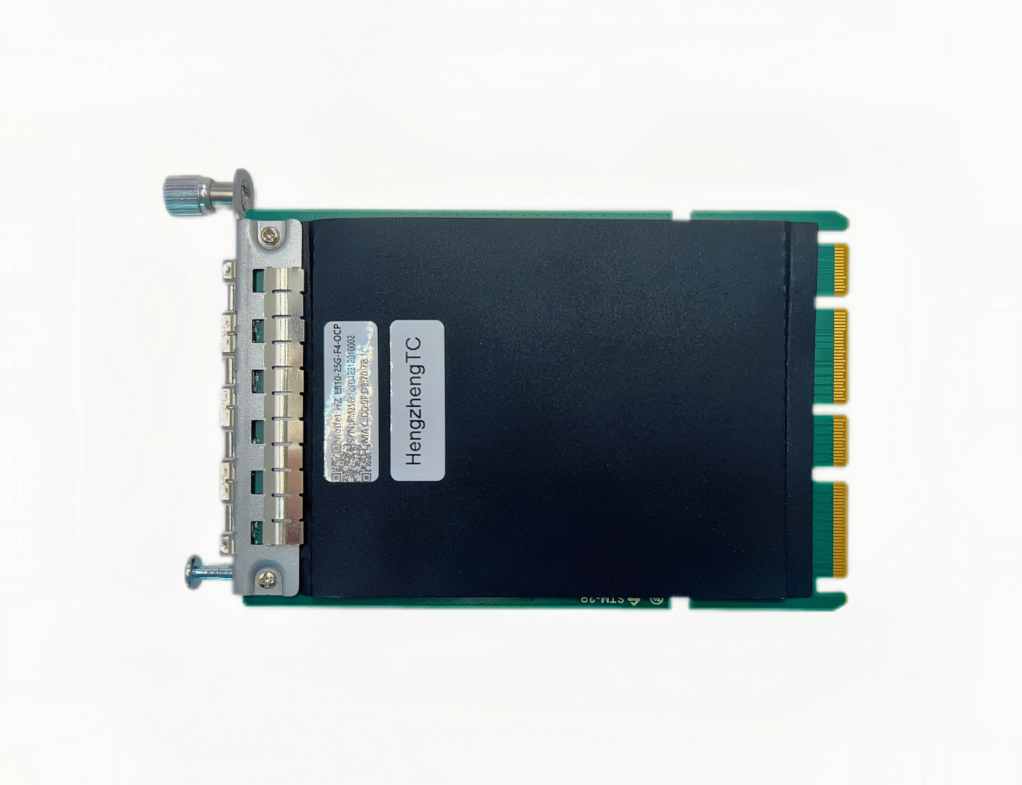

HZ1I350F4OCP

INTEL I350 chip, 4 x 1GE SFP ports, OCP3.0, PCIe Gen2.1x4, without module, 0℃-55℃

HengzhengTC

HZTS1SR

1.25G SFP SR,Dual LC,850nm VCSEL,550m

HengzhengTC

HZTS1LR

1.25G SFP LR,Dual LC,1310nm DFB,10km

HengzhengTC

HZ-LC-LC-DX-5M3

LC dual-core patch cord (OM3), LC/UPC-LC/UPC-MM (OM3)-DX-2.0mm-5M

HengzhengTC

HZ-LC-SC-SM-3M

LC/UPC-SC/UPC-SM-DX-2.0mm-3M
