Tri-mode Storage Interface

Hardware Secure Boot

Universal Bay Management (UBM) Ready (SFF-TA-1005)

13,700 MB/s (256K sequential)

3 Million IOPs (4K random read)

x8 PCIe Gen 4.0 Host Interface

Compliant with SFF-9402 standard connector pin assignment

Up to 1024 SAS/SATA devices

Up to 32 NVMe devices

Form-factor-friendly cable exit

Tri-mode Storage Interface Ports

Supports 12, 6 and 3Gb/s SAS, as well as 6, 3Gb/s SATA data transfer rates

Up to 8 storage interface PCIe lanes. Each lane supports up to 8.0 GT/s (PCIe Gen3) per channel with x4 or x2 lane width

Compliant with SFF-9402 standard, connector pin assignment

Compliant with SFF-8485 standard, SGPIO

PCIe 3.1 Host Interface

Connects up to 1024 SAS/SATA devices or 32 NVMe devices

Delivers maximum connectivity and performance for high-end servers and applications

Supports mission-critical applications via PCIe 4.0 connection bandwidth

Universal Bay Management (UBM) Ready

Multi-mode Integration: Supports SAS-3/SATA/NVMe tri-mode, enabling seamless integration of hybrid storage environments.

Ultra-high Speed Transmission: 12Gb/s SAS and PCIe 3.1 x8 interfaces ensure efficient data transfer.

Intelligent Optimization: Dual-core ROC controller with 4GB/8GB cache to enhance I/O efficiency; CacheVault technology protects data during power outages.

Flexible Adaptation: Low-profile design suitable for various scenarios, compatible with Windows/Linux/VMware systems.

Quality Assurance: Certified for Intel platforms and enterprise HDDs/SSDs, 3-year warranty, supports up to 1024 SAS/SATA + 24 NVMe devices, and provides comprehensive RAID 0/1/5/6/10/50/60 data protection.

12Gb/s SAS-3 interface + PCIe 3.1 x8 host channel, delivering up to 96Gb/s aggregate bandwidth to meet high-capacity storage requirements.

Supports up to 1,024 SAS/SATA devices, designed for large storage enclosures and ideal for enterprise-level storage deployments.

Built-in SAS3408 controller, supporting RAID 0/1/5/6/10/50/60 multi-level arrays with hot spare and online capacity expansion capabilities.

Certified for Windows/Linux/VMware systems, compatible with mainstream server environments. *High-efficiency design: typical power consumption of only 6.12W, low-profile form factor (167.65×68.90mm), compatible with various server chassis.

Tri-mode storage interface

Hardware Secure Boot

Universal Bracket Management (UBM) Ready (SFF-TA-1005)

13,700 MB (256K sequential streams)

300万IOPS（4K RR）

x8 PCIe Gen 4.0 host interface

Connector pinout compliant with SFF-9402

Up to 1024 SAS/SATA devices

Up to 32 NVMe devices

Cable exit with friendly form factor

Supports up to 63 SAS/SATA devices and 4 NVMe devices

Uses RAID 0, 00, 1, 10 to balance protection and performance for mission-critical applications

Supports mission-critical high-bandwidth applications via PCIe 4.0 connectivity

Advanced security through hardware secure boot

Each controller can connect up to 240 SAS/SATA devices or 24 NVMe devices

Suitable for rack mounted servers with thin profile and side mounted SAS connectors

Environmentally friendly cable outlet

Supports critical high bandwidth applications through PCIe 4.0 connectivity

Balance the protection and performance of critical applications through RAID 0, 1, 5, 6, 10, 50, and 60

JBOD mode, with RAID 0, 1, 10 and JBOD suitable for SDS environment

Providing more protection through CacheVault flash cache protection, allowing you to rest assured

Eight/four 12Gb/s SAS+SATA ports

Eight channel PCI Express 3.0

Thin profile

Mini SAS HD connector

SAS 3008 12Gb/s SAS+SATA Controller

Supports SSD, HDD, and tape drives

Eight/four 12Gb/s SAS+SATA ports

Eight channel PCI Express 3.0

Thin profile

Mini SAS HD connector

SAS 3008 12Gb/s SAS+SATA Controller

Supports SSD, HDD, and tape drives

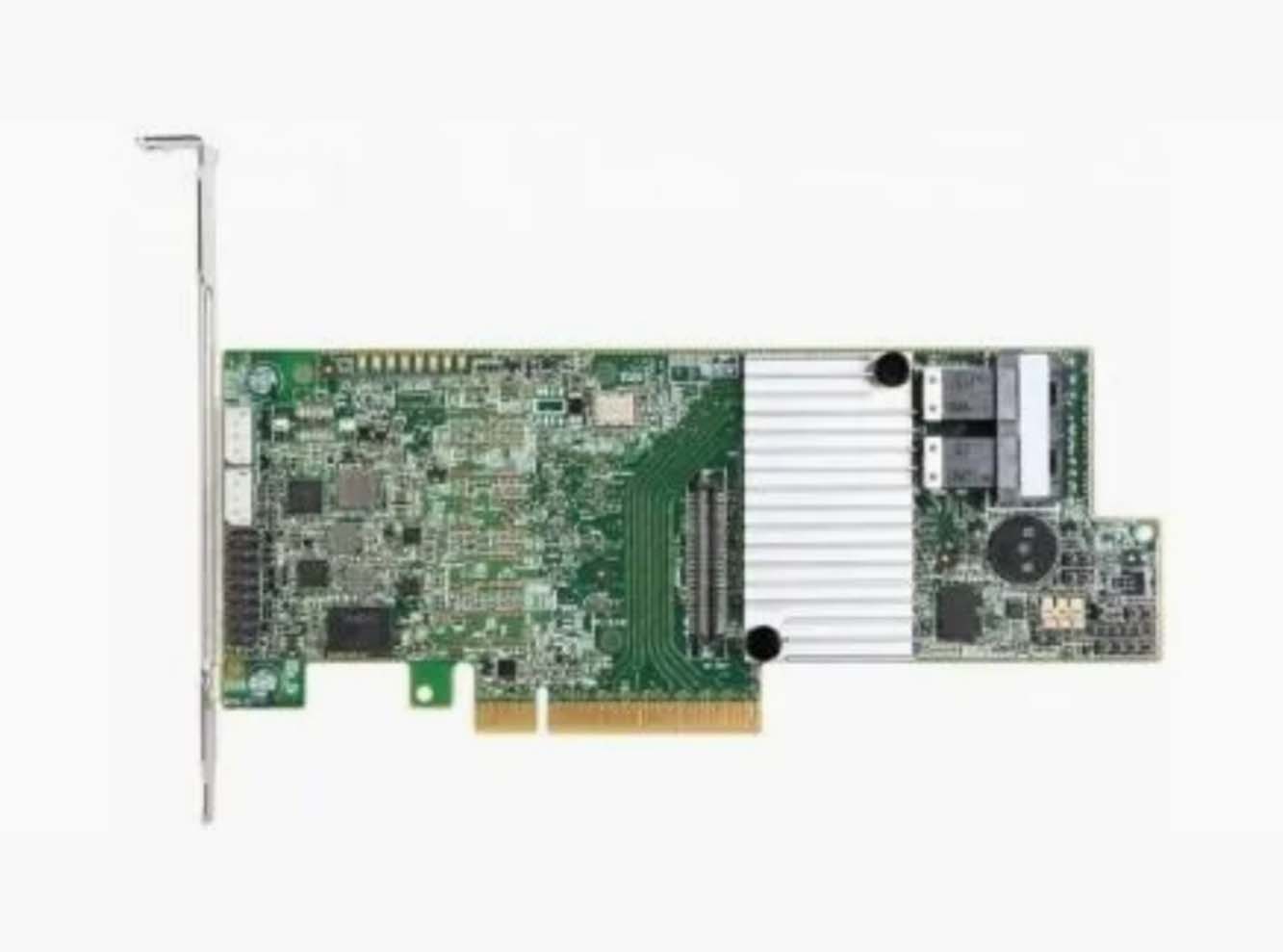

High-performance 12Gb/s data transfer rate

Eight internal 12Gb/s SATA+SAS ports

Two Mini SAS SFF8643 internal connectors (horizontal mounting)

LSI SAS 3108：1.2GHz PowerPC ® 476 dual core 12Gb/s on-chip RAID controller

PCI Express 3.0 host interface

1GB/2GB DDRIII cache

RAID levels 0, 1, 5, 6, 10, 50 and 60

Supports CacheVault® flash cache protection

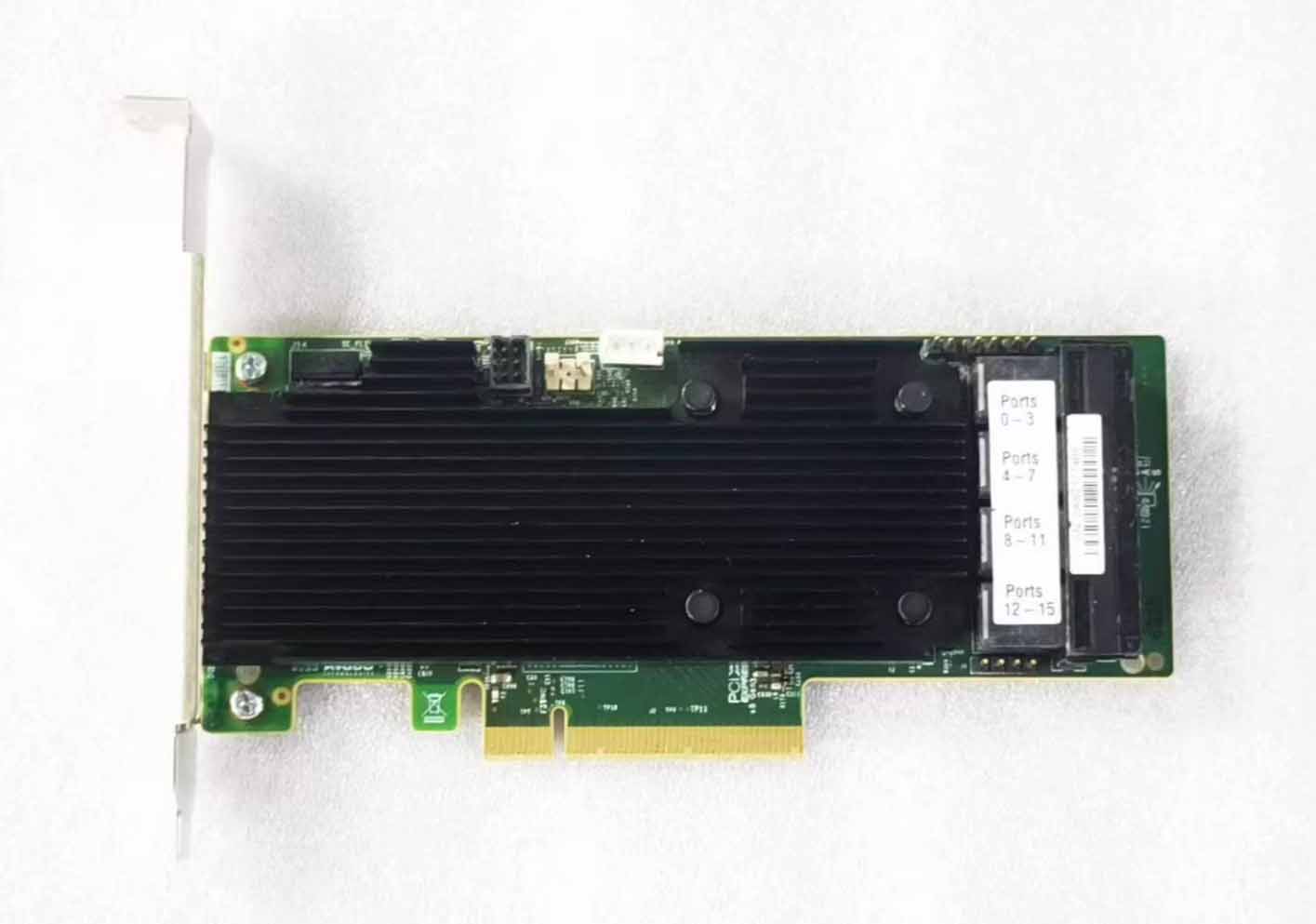

High-performance 12 Gb/s data transfer rate

16 internal 12 Gb/s SATA+SAS ports

Four Mini SAS SFF8643 internal connectors (horizontal mounting)

SAS3316 RAID-on-Chip

PCI Express 3.0 host interface

2 GB DDR3 cache

RAID levels 0, 1, 5, 6, 10, 50 and 60

Supports CacheVault flash cache protection
