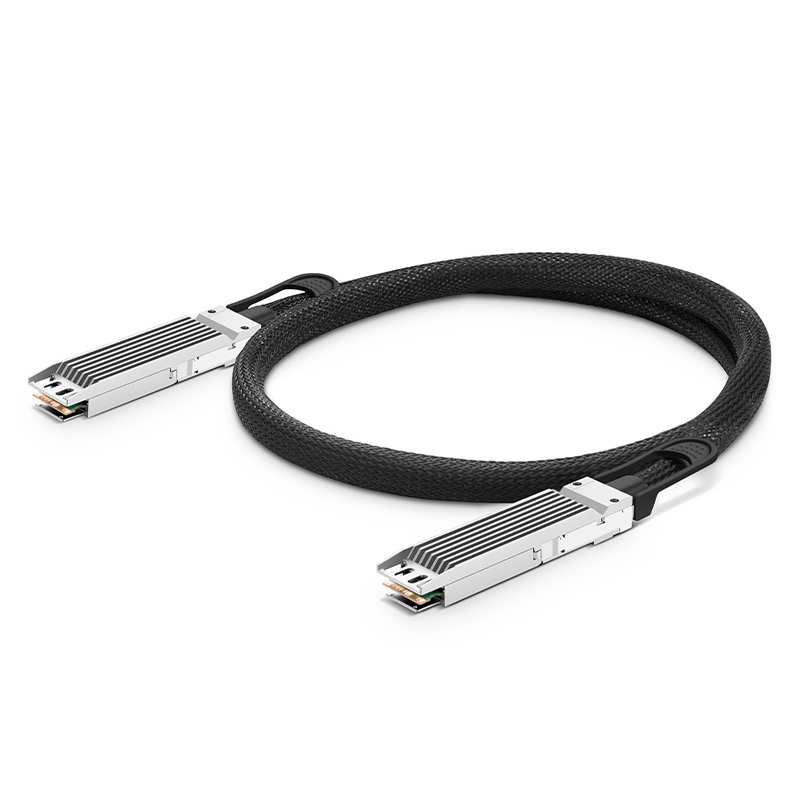

Complies with InfiniBand XDR end-to-end system requirements

Max power consumption: 0.1W

Up to 1600Gbps total throughput, compliant with IEEE 802.3 standards

8x 200G-PAM4 to 8x 200G-PAM4

Assembled with advanced dual-core 16-pair bulk cable

Excellent SI reliability and physical performance, with enhanced flexibility and bendability

Delivers superior mechanical durability and shielding to reduce crosstalk

Compliant with hot-pluggable OSFP MSA standards

Ideal for high-performance computing (HPC) and machine learning (ML) architectures

Meets InfiniBand XDR end-to-end system requirements

Maximum power consumption: 0.1W

Up to 1600Gbps total throughput, compliant with IEEE 802.3 specifications

8x 200G-PAM4 to 8x 200G-PAM4

Assembled with advanced dual-core 16-pair bulk cable

Excellent SI reliability and physical performance, with enhanced flexibility and bending capability

Delivers superior mechanical durability and shielding, reducing crosstalk

Compliant with hot-pluggable OSFP MSA standard

Suitable for high-performance computing (HPC) and machine learning (ML) architectures

Meets InfiniBand NDR end-to-end system requirements

Built-in Marvell 6nm DSP chip, maximum power consumption: 16W

OSFP with top heatsink, designed for Quantum-2 liquid-cooled switches

Supports 800G-to-800G links between switches or 800G-to-dual 400G ConnectX-7 NIC connections

Converts 8×100G-PAM4 electrical signals into 2 parallel 4×100G-PAM4 optical signals

Hardware-verified for full compatibility with NVIDIA QM9700/9790 devices

Compliant with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety; supports digital diagnostic monitoring (DDM/DOM)

Meets InfiniBand NDR end-to-end system requirements

Built-in Broadcom 7nm DSP chip, maximum power consumption: 16.5W

OSFP with top heatsink, designed for Quantum-2 liquid-cooled switches

Supports 800G-to-800G links between switches or 800G-to-dual 400G ConnectX-7 NIC connections

Converts 8×100G-PAM4 electrical signals into 2 parallel 4×100G-PAM4 optical paths

Hardware-verified for full compatibility with NVIDIA QM9700/9790 devices

Compliant with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety; supports digital diagnostic monitoring (DDM/DOM)

Meets InfiniBand NDR end-to-end system requirements

Maximum power consumption: 17W

OSFP with top heatsink, designed for Quantum-2 liquid-cooled switches

Supports 800G-to-800G links between switches or 800G-to-dual 400G ConnectX-7 NIC connections

Converts 8×100G-PAM4 electrical signals into 2 parallel 4×100G-PAM4 optical signals

Hardware-verified for full compatibility with NVIDIA QM9700/9790 devices

Compliant with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety; supports digital diagnostic monitoring (DDM/DOM)

Meets InfiniBand NDR end-to-end system requirements

Built-in Broadcom 7nm DSP chip, maximum power consumption is 16.5W

OSFP with top heatsink for Quantum-2 liquid-cooled switches

Supports 800G to 800G links between switches

Converts 8×100G-PAM4 electrical signals into 2×4×100G-PAM4 optical signals for multiplexing

Verified on real hardware to ensure full compatibility with NVIDIA QM9700/9790 devices

Complies with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety, supports digital diagnostic monitoring (DDM/DOM)

Meets InfiniBand NDR end-to-end system requirements

Built-in Macom chip, maximum power consumption is 10W

Supports 800G to 2×400G link connections between switch and network adapter

Supports 1/2-rate configuration for 200G (2×100G)

Converts 4×106.25G PAM4 electrical signals to 400GAUI-4 electrical signals for parallel transmission

Complies with the hot-pluggable QSFP112 standard

Complies with QSFP-112 MSA, CMIS Rev. 5.0, IEEE 802.3ck standards and Class 1 laser safety

Verified on real hardware to ensure full compatibility with NVIDIA ConnectX-7 network adapter

Meets InfiniBand NDR end-to-end system requirements

Built-in 7nm DSP, maximum power consumption 8.5W

InfiniBand NDR system features low bit error rate (BER)

Flat-top OSFP optical transceiver is compatible with ConnectX-7 HCA

Supports 800G to 2×400G network interface card (NIC) link connections

Converts 4×100G-PAM4 electrical signals to 4×100G-PAM4 optical signals for parallel transmission

Fully tested and fully compatible with NVIDIA ConnectX-7 HCA

Compliant with OSFP MSA, IEEE 802.3ck, RoHS and Class 1 laser safety, supports DDM (Digital Diagnostic Monitoring)

Meets InfiniBand NDR end-to-end system requirements

Built-in Marvell 6nm DSP chip, maximum power consumption is 10W

Low Bit Error Rate (BER) for InfiniBand NDR systems

Supports 800G to 2×400G link connections between switch and network adapter

4×106.25G PAM4 retimed 400GAUI-4 electrical interface

Hot-pluggable QSFP112 package form factor

Complies with QSFP-112 MSA, CMIS Rev. 4.0, IEEE 802.3cu standards and Class 1 laser safety

Complies with high-speed electrical port standards

Verified on real hardware to ensure full compatibility with NVIDIA ConnectX-7 network adapter

Meets InfiniBand NDR end-to-end system requirements

Meets InfiniBand NDR end-to-end system requirements; built-in Broadcom 7nm chip, maximum power consumption 10W

Supports 800G to 2×400G link connections between switch and network adapter

Supports 1/2-rate configuration for 2×200G

Converts 4×106.25G PAM4 electrical signals to 400GAUI-4 electrical signals for parallel transmission

Complies with hot-pluggable QSFP112 standard

Complies with QSFP-112 MSA, CMIS Rev. 5.0, IEEE 802.3ck standards and Class 1 laser safety

Verified on real hardware to ensure full compatibility with NVIDIA ConnectX-7 network adapter

Meets InfiniBand NDR end-to-end system requirements

Built-in Broadcom 7nm DSP chip, maximum power consumption 10W

Flat-top OSFP optical transceiver is compatible with ConnectX-7 HCA

Supports 800G to 2×400G links between switch and network adapter

Converts 4×100G-PAM4 electrical signals to 4×100G-PAM4 optical signals for parallel transmission

Verified on real hardware to ensure full compatibility with NVIDIA ConnectX-7 HCA

Compliant with OSFP MSA, IEEE 802.3ck standards and Class 1 laser safety, supports DDM (Digital Diagnostic Monitoring)

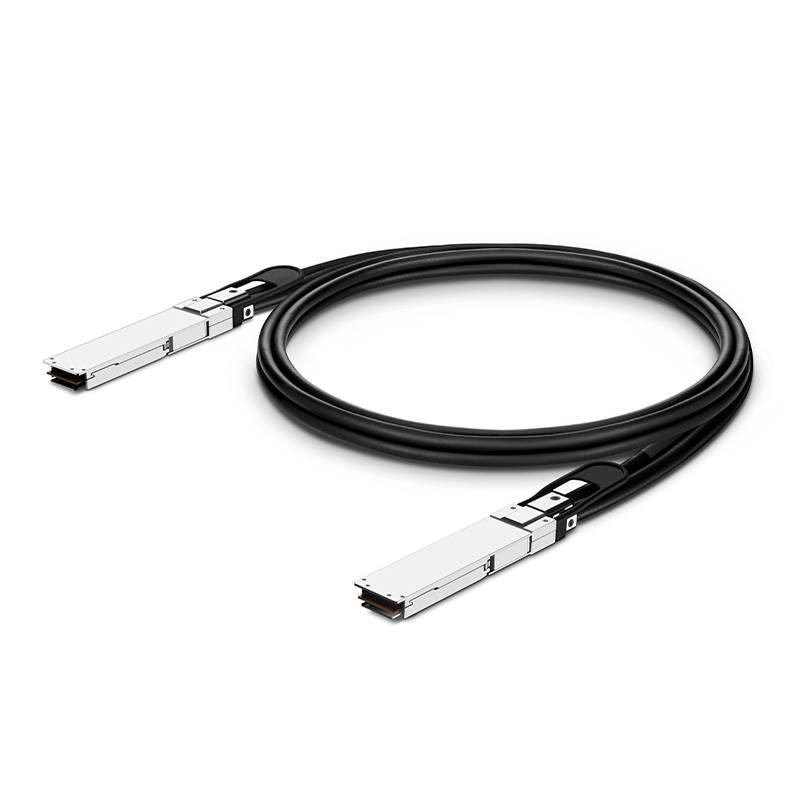

Complies with InfiniBand NDR end-to-end system requirements

Low latency, low insertion loss, low crosstalk, high-speed interconnect

8x 100G-PAM4 to 8x 100G-PAM4

Tested on real machines, fully compatible with NVIDIA DGX H100 systems

Minimum bend radius of 45mm for flexible cabling

Simplified cabling, providing cost-effective short-distance connection solutions

Complies with OSFP MSA, IEEE 802.3ck and CMIS v5.0 standards

Meets the requirements of InfiniBand NDR end-to-end systems

Low latency, low insertion loss, low crosstalk, high-speed interconnect

8x 100G-PAM4 to 8x 100G-PAM4

Tested on real machines, fully compatible with NVIDIA QM9700/9790 devices

Minimum bend radius of 30mm for flexible cabling

Simplified cabling, providing cost-effective short-distance connectivity

Compliant with OSFP MSA, IEEE 802.3bs and CMIS 4.0 standards

Complies with InfiniBand NDR end-to-end system requirements

Built-in Marvell 6nm chip, maximum power consumption 10W

Delivers ultra-low Bit Error Rate (BER) for FS InfiniBand NDR systems

Supports 800G to 2x400G link connections from switches to NICs

Converts 4 channels of 106.25G PAM4 electrical signals to 400GAUI-4 electrical signals for parallel transmission

Complies with hot-pluggable QSFP112 standard

Complies with QSFP-112 MSA, CMIS Rev 5.2, IEEE 802.3bs standards and Class 1 Laser Safety

Complies with InfiniBand HDR end-to-end system requirements

Built-in Marvell chip, maximum power consumption 5W

Supports 200G link connections between switches or switch-to-NIC connections

Converts 4 channels of 50G-PAM4 electrical signals to 4 channels of 50G-PAM4 optical signals for parallel transmission

Fully tested and fully compatible with NVIDIA QM8700/8790 switches and ConnectX-6 HCAs

Complies with QSFP56 MSA (Multi-Source Agreement) and IEEE 802.3 standards, Class 1 Laser Safety, with DDM support

Complies with InfiniBand NDR end-to-end system requirements

Low latency, low insertion loss, low crosstalk, high-speed interconnect

8x 100G-PAM4 to 8x 100G-PAM4

Fully validated and compatible with NVIDIA QM9700/9790 systems

Minimum bend radius of 69mm for easy cabling

Simplified cabling, providing cost-effective solutions for short-distance links

Complies with OSFP MSA, IEEE 802.3ck and CMIS v4.0 high-speed electrical port standards
