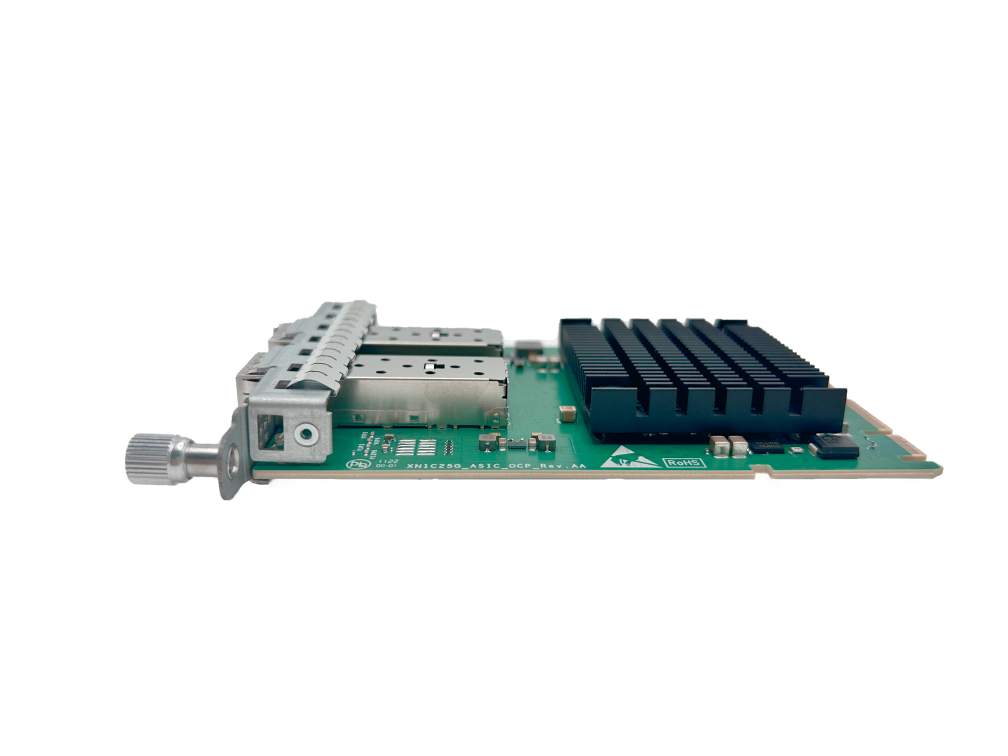

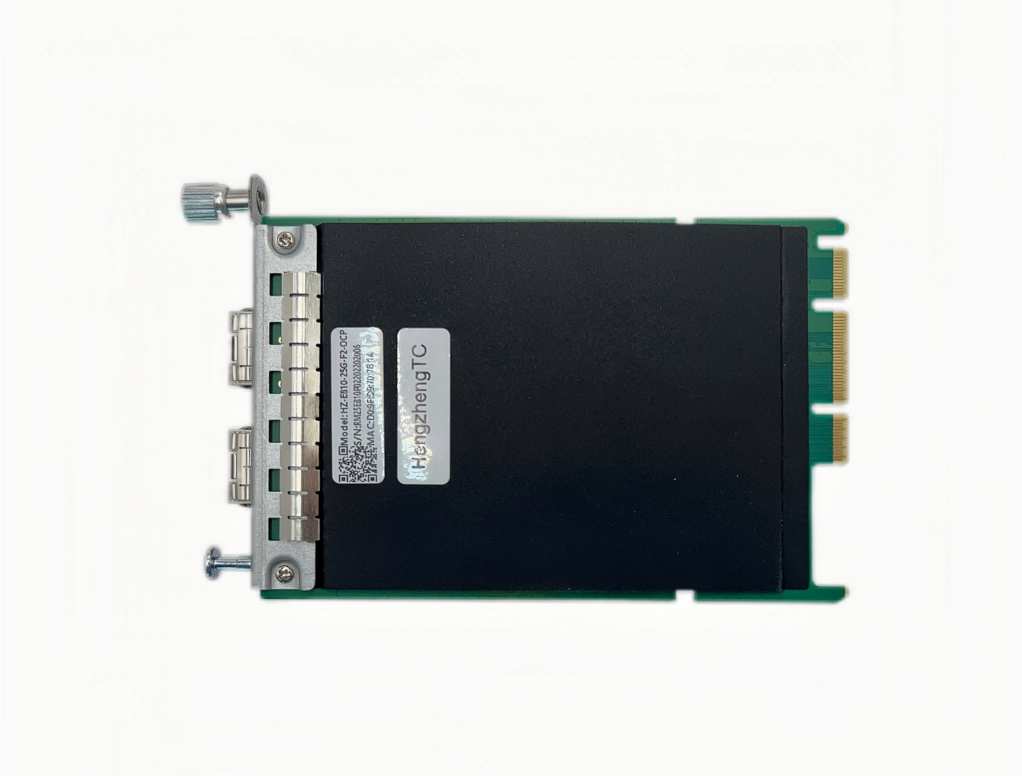

HZ25E810F2OCP, 25G dual optical port OCP network card

￥2000

型号：HZ25E810F2OCP

加入购物车

产品特征

RDMA：RoCEv2，iWARP

IEEE 1588 PTP

Dynamic Device Provisioning (DDP)

ACLs: 8K

Virtual Machine Device Queues (VMDq), Virtualization: 256 VF

Intelligent offloading, tunnel offloading

Ethernet Storage: iSCSI

On-chip QoS and traffic management: QoS via 802.1p PCP

Management Interface: SMBus, MCTP over PCIe AND SMBus

Passive cooling/active cooling optional

PCIe powered, no external power required

商品详情
资料下载(PDF)

恒正同创第二次版详情页_01 恒正同创第二次版详情页_02 恒正同创第二次版详情页_03

The HengzhengTC brand HZ25E810F2OCP network card is a 25G dual-port OCP3.0 network card developed based on the Intel E810 main control solution. It has two 1/10/25G adaptive SFP28 interfaces, supporting 25Gbps transmission bandwidth, and also supports the OCP 3.0 system interface, ensuring efficient and stable operation of the network card. The network card also supports MSI and MSI-X, as well as features such as VMDq queues, QoS policies, and flow control, making it suitable for medium to large-scale LAN applications.

Product Description

Model

HZ25E810F2OCP

Control chip

Intel E810-XXVAM2 Ethernet controller

Plate type

OCP add-in card

Bus type

OCP4.0

Network Cable Connector Type

SFP28、SFP+、SFP

Network port transmission rate

25Gbps、10Gbps、1Gbps

I/O Port

2*SFP28

Bus speed

OCP v3.0 8 GT/sec

Connector

OCP x8 gold fingers

Input voltage

Voltage: 3.3V_AUX，12V，3.3V

LED

Link up LED: 25G: Green, other SPEED: Amber, no connection light off

Activity LED: Green (off when no data, blinking when data is present)

Operating system support

Ubuntu、CentOS、Kylin、NeoKylin、UnionTech UOS,Windows、Windows Server、Linux、Vmware ESX/ESXI

Network standard

IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z

PCB Physical Data

Length and width:155*76mm

Stent:No bracket

Bypass

Operating temperature

0°C to 55°C

Working humidity

0%-85%, non-condensin

Storage Temperature

-10°C to 60°C

Lead-free process

RoHS-R6

Other technical parameters

Compatible CPUs: Intel, AMD, Kunpeng, etc.
Interface compatible media: optical and electrical modules
10GBASE-SR/LR
10GbE DAC
25GBASE-SR/LR
25GBASE-CR

Network card order information

Model	Description
HZ25E810F2OCP	INTEL E810 chip, 2x 25GE SFP28 ports, OCP3.0, PCIe Gen4.0x8, module not included, 0℃-55℃

部分专用光模块和线缆

Manufacturer	Model	Description
HengzhengTC	HZTS25SR	25G SFP28 SR,Dual LC,850nm VCSEL,100m
HengzhengTC	HZTS25LR	25G SFP28 LR,Dual LC,1310nm DFB,10km
HengzhengTC	HZAS25A5	25G SFP28 to SFP28 AOC 5M
HengzhengTC	HZDS25D3	25G SFP28 to SFP28,30AWG,3M
HengzhengTC	HZ-LC-LC-DX-5M3	LC dual-core patch cord (OM3), LC/UPC-LC/UPC-MM (OM3)-DX-2.0mm-5M
HengzhengTC	HZ-LC-SC-SM-3M	LC/UPC-SC/UPC-SM-DX-2.0mm-3M
