HZTD200SR4
￥1700

型号：HZTD200SR4

加入购物车

产品特征

Meets the requirements of InfiniBand HDR end-to-end systems

Supports link connections between 200G switches or connections from a switch to a network card

Convert 4 50G-PAM4 electrical signals into 4 50G-PAM4 optical signals for parallel transmission

Comprehensive testing, fully compatible with NVIDIA QM8700/8790 and ConnectX-6 network cards

Compliant with QSFP56 MSA (Multi-Source Agreement) and IEEE 802.3 standards, BS and Class 1 Laser Safety, with DDM Support

  • 商品详情
  • 资料下载(PDF)

光模块01

光模块02

光模块03

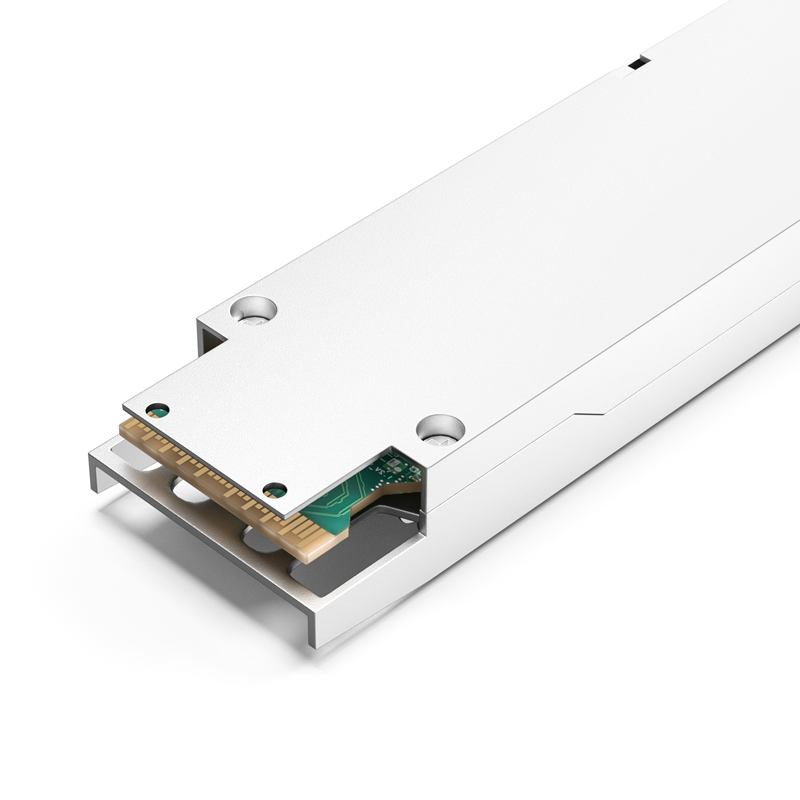

HengzhengTC 200G QSFP56 SR4 is a 4x53.125Gbps multimode fiber, hot-pluggable optical transceiver.

Characteristics

• Complies with 200G-SR4 optical specifications
• 4 x 53.125 Gb/s electrical interfaces (200GAUI-4)
• Reach 70M on MMF (OM3)
• Reach 100M on MMF (OM4)
• Single 3.3 V power supply
• Case temperature range: 0~70°C
• Maximum power consumption 4W

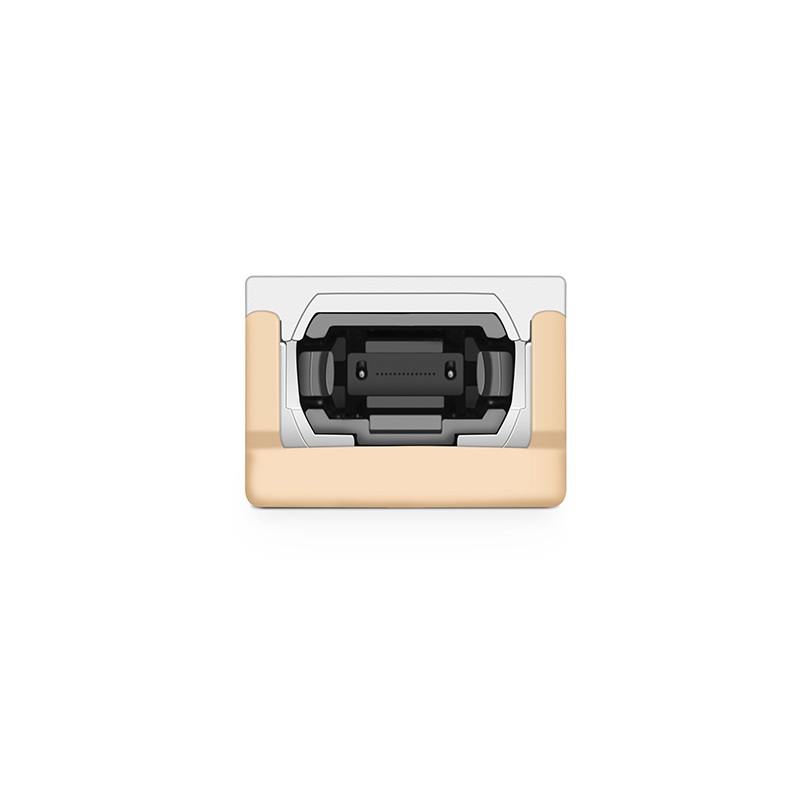

• Single PO12 connector
• RoHS

Applications

•200GBASE-SR4 Ethernet link
•Data center

Standard

•IEEE 802.3 cd

•SFF8679

•CMIS 4.0 or SFF8636


Order Information

Model

Explanation

HZTD200SR4

200G QSFP56 SR4 Optical module

光模块04

光模块05

光模块06
