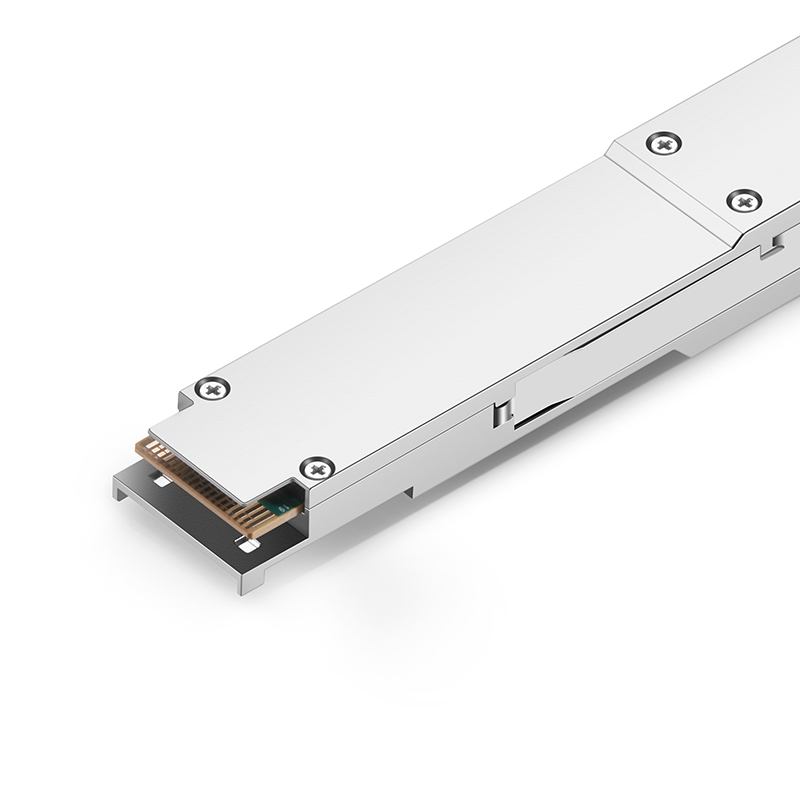

HZTD400FR4
￥2860

型号：HZTD400FR4

加入购物车

产品特征

Complies with IEEE standard 802.3cd

Complies with 400G-FR4 optical specifications

Compliant with QSFP-DD MSA

Compliant with CMIS 4.0 management interface specifications

8x53.125Gb/s electrical interface (400GAUI-8)

Single-mode fiber (SMF) with FEC can transmit up to 2 km

Single 3.3V Power Supply

Design of 4 CWDM Channel MUX/DEMUX

Complies with 100G Lambda MSA 400G-FR4 specifications

Enclosure temperature range: 0~70℃

Maximum power consumption 10W

Duplex LC Connector

RoHS

  • 商品详情
  • 资料下载(PDF)

光模块01

光模块02

光模块03

This product is a 400 Gb/s QSFP-DD optical module specifically designed for 2km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data into 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. On the receiver side, the module demultiplexes the 400 Gb/s optical input into 4 channels of CWDM optical signals and converts them into 8 channels of 50 Gb/s (PAM4) electrical output data. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331 nm, which are members of the WDM wavelength grid defined in ITU-T G.694.2. The host FEC is required to support fiber transmission up to 2 kilometers.

Applications

• 400G BASE-FR4 Ethernet

• Data Center Interconnect

• Infiniband Interconnect

• Enterprise Network

Order Information

Model

Explanation

HZTD400FR4

400G QSFP-DD FR4 Optical module

光模块04

光模块05

光模块06
