HZTD400LR4
￥3500

型号：HZTD400LR4

加入购物车

产品特征

Compliant with QSFP-DD MSA

Design of 4 CWDM Channel MUX/DEMUX

Complies with 100G Lambda MSA 400G-LR4 specifications

Maximum power consumption 10W

  • 商品详情
  • 资料下载(PDF)

光模块01

光模块02

光模块03

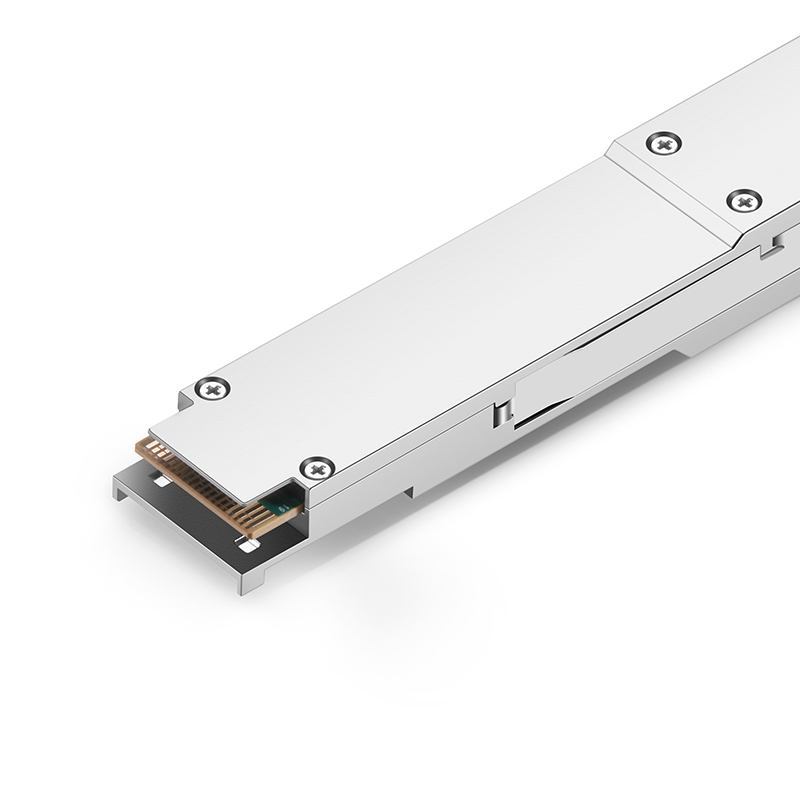

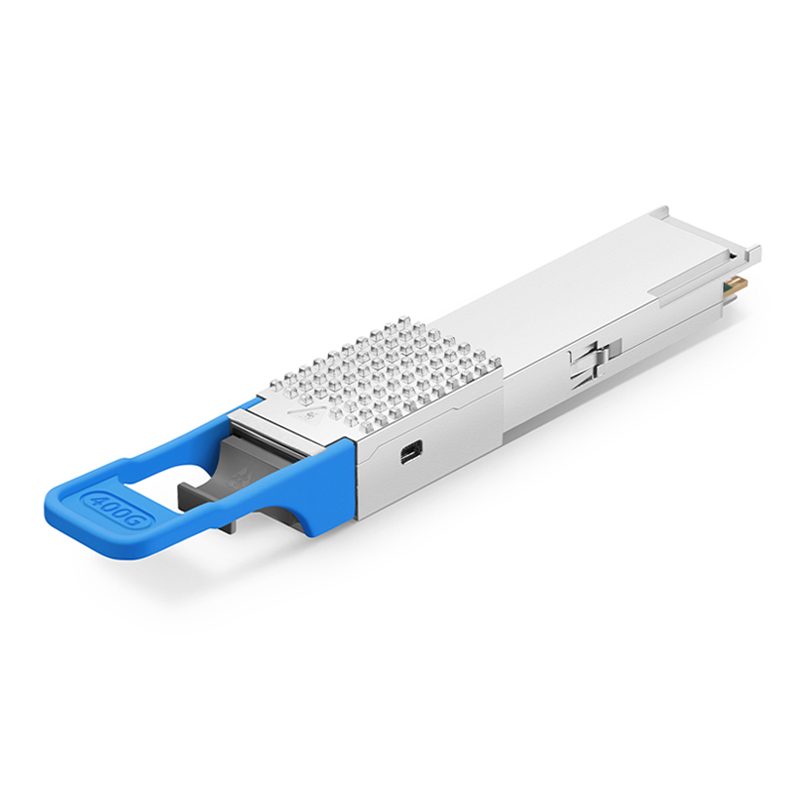

This product is a 400Gb/s QSFP-DD optical fiber 10km optical module designed for communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data into optical signals of 4 CWDM channels and multiplexes them into a single-channel transmission of 400Gb/s optical fiber. On the receiver side, the module optically demultiplexes the 400Gb/s optical input into 4 CWDM optical signals and converts them into 8 channels of 50Gb/s (PAM4) electrical output data. The central wavelength channels of the 4 CWDM are 1271, 1291, 1311, and 1331nm. The host FEC needs to support optical fiber transmission up to 10 kilometers.

Characteristics

• Compliant with 400G-LR4-10 technical specifications

• Compliant with QSFP-DD MSA

• Compliant with CMIS4.0 management interface specifications

• 8x53.125Gb/s electrical interface (400GAUI-8)

• Transmission distance of up to 10km over single-mode fiber (SMF) with FEC

• Single +3.3V power supply

• Enclosure temperature range: 0~+70℃

• Maximum power consumption 10W

• Duplex LC connector

• RoHS

Applications

• 400G BASE-LR4 Ethernet

• Data Center Interconnect

• Infiniband Interconnect

• Enterprise Network

Order Information

Model

Explanation

HZTD400LR4

400G QSFP-DD LR4 Optical module

光模块04

光模块05

光模块06
