HZTF400FR4
￥10300

型号：HZTF400FR4

加入购物车

产品特征

符合InfiniBand NDR端到端系统要求

InfiniBand NDR系统的低比特错误率 (BER)

支持交换机到网卡的800G到2x400G链路连接

4x106.25G PAM4重定时400GAUI-4电气接口

热插拔QSFP112封装形式

符合QSFP-112 MSA, CMIS Rev 4.0, IEEE 802.3cu标准和1类激光安全

符合高速电口标准

经真机测试，确保与英伟达（NVIDIA）ConnectX-7网卡全面兼容

  • 商品详情
  • 资料下载(PDF)

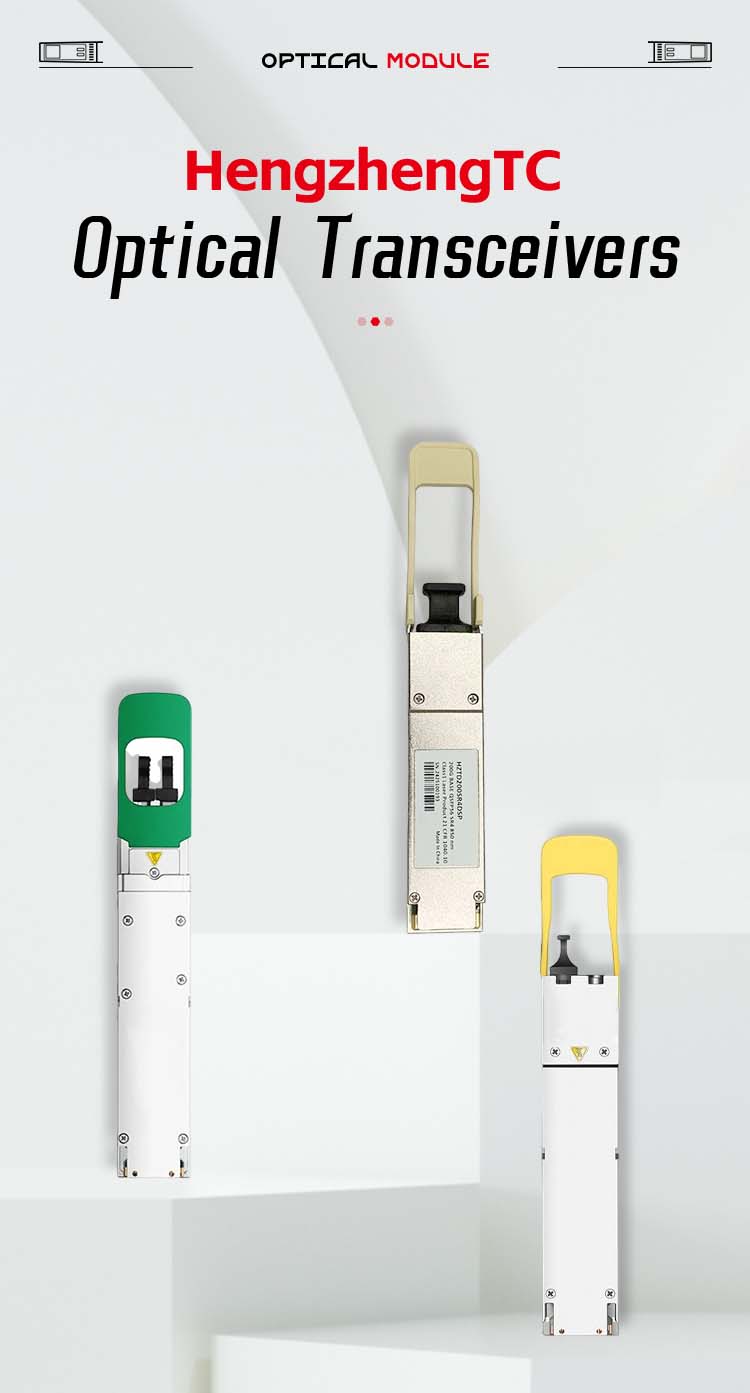

光模块01

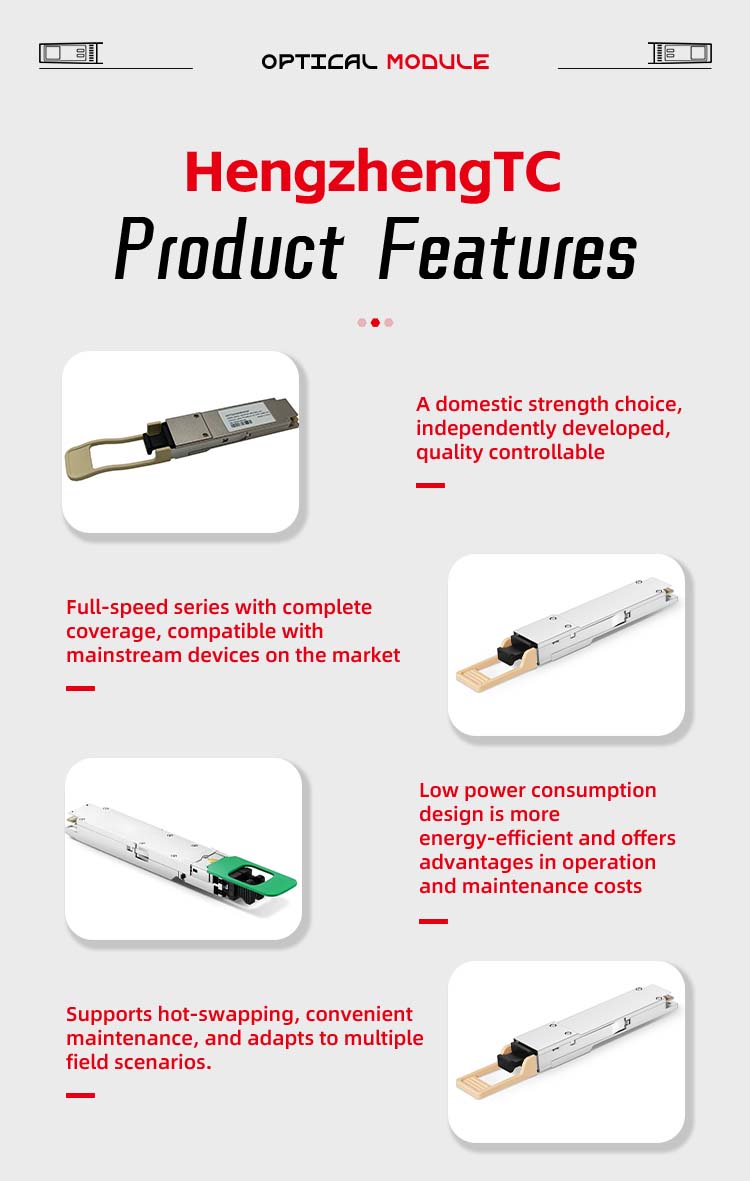

光模块02

光模块03

This product is a 400Gb/s QSFP112 optical module application specifically designed for 2km optical communication. The module converts 4 electrical input data channels of 100Gb/s (PAM4) into 4 CWDM optical signal channels and multiplexes them into a 400Gb/s optical channel for transmission. On the receiver side, the module optically demultiplexes the 400Gb/s optical input into 4 channels of CWDM optical signals and converts them into 4 electrical output channels of 100Gb/s (PAM4) data. The central wavelengths of the 4 CWDM channels are 1271nm, 1291nm, 1311nm, and 1331nm respectively. The host FEC needs to support fiber transmission up to 2km.

Characteristics

• Compliant with QSFP112 MSA V2.0

• Compliant with CMIS 5.0 standard

• 4 CWDM channel MUX/DEMUX design

• 100G Lambda MSA 400G-FR4 specification

• Compatible with 4x106.25Gb/s electrical interface (400GAUI-4)

• Transmission up to 2Km over SMF

• Maximum power consumption 10W

• Duplex LC receptacle

• Single +3.3V power supply

• Enclosure temperature range: 0~+70℃

• RoHS 2.0

Applications

• 400G Ethernet

• Data Center Interconnect

• Enterprise Network

Order Information

Model

Explanation

HZTF400FR4

400G QSFP112 FR4 Optical module

光模块04

光模块05

光模块06
