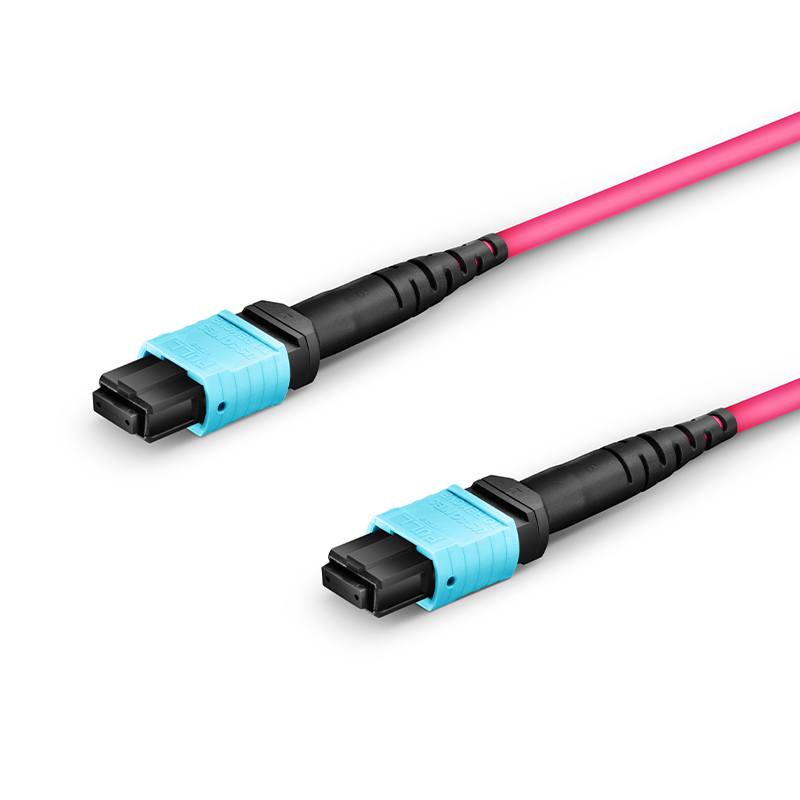

1m (3ft) OM4 12-core MTP®-12 UPC (Female) to MTP®-12 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Magenta

￥330

型号：MTP®-12，母-母，OM4

加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

Typically used for intra-cabinet cabling

商品详情
资料下载(PDF)

MTP®-12 Fiber Patch Cord, Female-Female, UPC, 12-strand, OM4, LSZH, 0.35dB, Polarity B

MTP®-12光纤跳线，母-母，UPC，12芯，OM4，LSZH，0.35dB，极性B

Used with MTP® backbone cables, these MTP® fiber patch cords enable seamless migration of data center multimode systems to higher data transmission rates. Primarily designed for intra-cabinet connections, they serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in space-constrained data centers with stringent cable management requirements.

As MTP-12 is backward-compatible with MTP-8 fiber systems, it is also well-suited for 8-fiber parallel multimode optical module applications, such as connections for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optical modules.

Specifications:

Connector A US Conec MTP® Female (No Key Pin)	Connector B US Conec MTP® Female (No Key Pin)
Polishing Type UPC-UPC	Fiber Type Corning ClearCurve®
Fiber Type OM4 50/125μm	Wavelength 850/1300nm
Fiber Count 12 cores	Polarity Polarity B
Cable Outer Diameter (OD) 3.0mm	Cable Jacket LSZH
Minimum Bend Radius (Fiber) 7.5mm	Minimum Bend Radius (Patch Cord) 20/10D (Dynamic/Static)
Connector Durability 500次	Tensile Strength (Long Term/Short Term) 80/240N
Insertion Loss ≤0.35dB (0.15dB typical)	Return Loss ≥20dB
Attenuation @ 850nm ≤2.3dB/km	Attenuation @ 1300nm ≤0.6dB/km
Operating Temperature -10~70°C(14~158℉)	Storage Temperature -40~85°C(-40~185℉)
