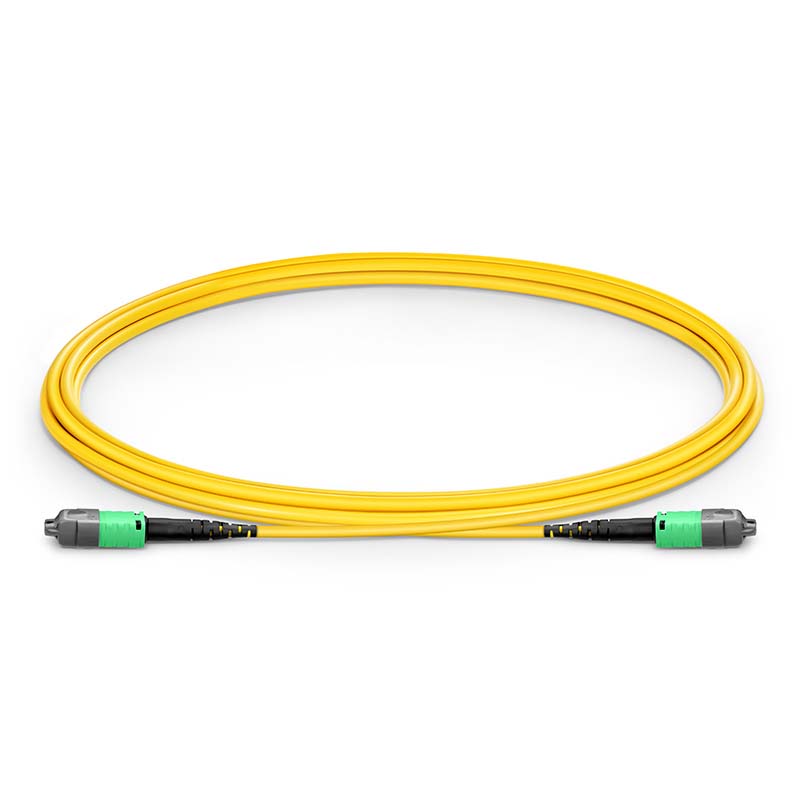

1m (3ft) OS2 12-core MTP®-12 APC (Female) to MTP®-12 APC (Female) Single-mode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Yellow

￥590

型号：MTP®-12，母-母，OM4

加入购物车

产品特征

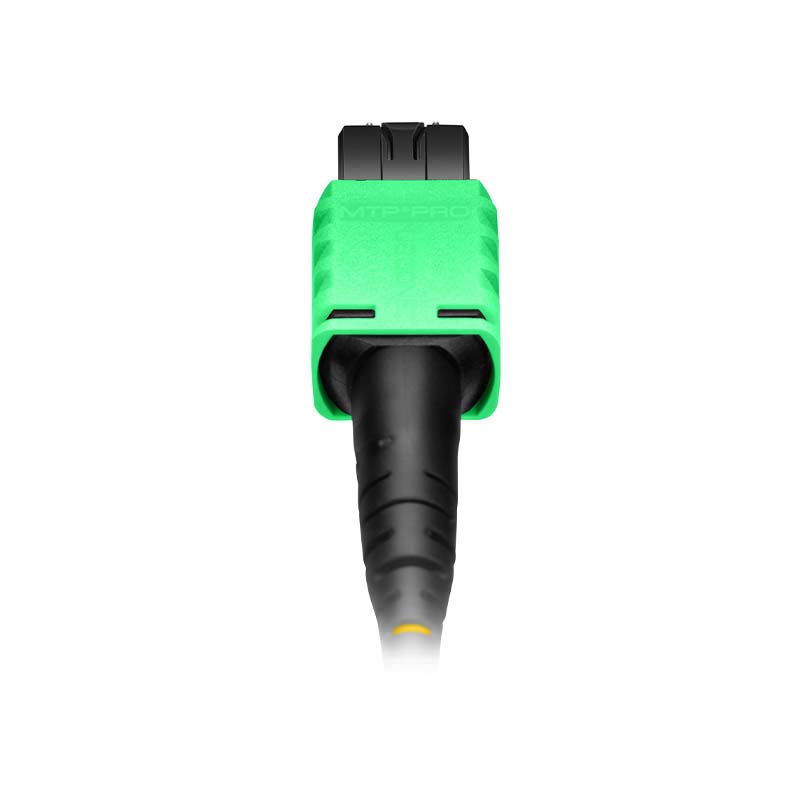

US Conec MTP® connector with low insertion loss of 0.35dB

Corning® SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for intra-cabinet cabling

商品详情
资料下载(PDF)

MTP®-12 Fiber Patch Cord, Female-Female, UPC, 12-strand, OM4, LSZH, 0.35dB, Polarity B

MTP®-12光纤跳线，母-母，UPC，12芯，OM4，LSZH，0.35dB，极性B

When used with MTP backbone cables, MTP fiber patch cords enable seamless migration of data center multimode systems to higher data transmission rates. Primarily intended for intra-cabinet connections, they serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in space-constrained data centers with strict cable management requirements.

As MTP-12 is compatible with MTP-8 fiber systems, it is also suitable for 8-fiber parallel multimode optical module applications, such as connections for 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optical modules.

Specifications:

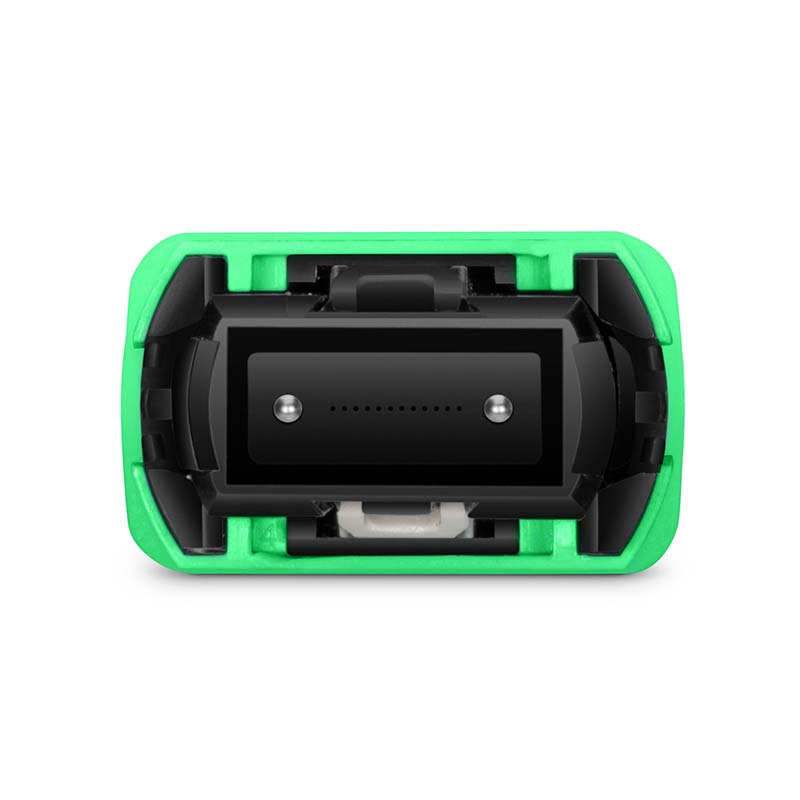

Connector A US Conec MTP® Female (No Key Pin)	Connector B US Conec MTP® Female (No Key Pin)
Polishing Type APC-APC	Fiber Type Corning® SMF-28®
Fiber Type OS2 9/125μm	Wavelength 1310/1550nm
Fiber Count 12 cores	Polarity Polarity B
Cable Outer Diameter (OD) 3.0mm	Cable Jacket LSZH
Minimum Bend Radius (Fiber) 10mm	Minimum Bend Radius (Patch Cord) 10/5D (dynamic/static)
Connector Durability 500 times	Tensile Strength (Long Term/Short Term) 80/240N
Insertion Loss ≤0.35dB (0.15dB typical)	Return Loss ≥60dB
Attenuation @ 850nm ≤0.32dB/km	Attenuation @ 1300nm ≤0.18dB/km
Operating Temperature -10~70°C (14~158℉)	Storage Temperature -40~85°C (-40~185℉)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
