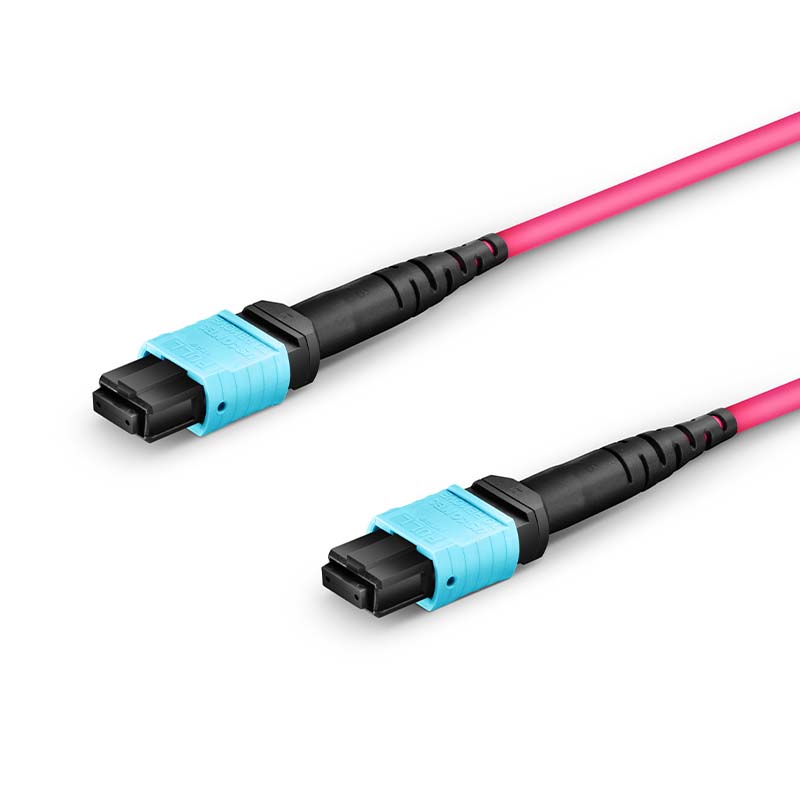

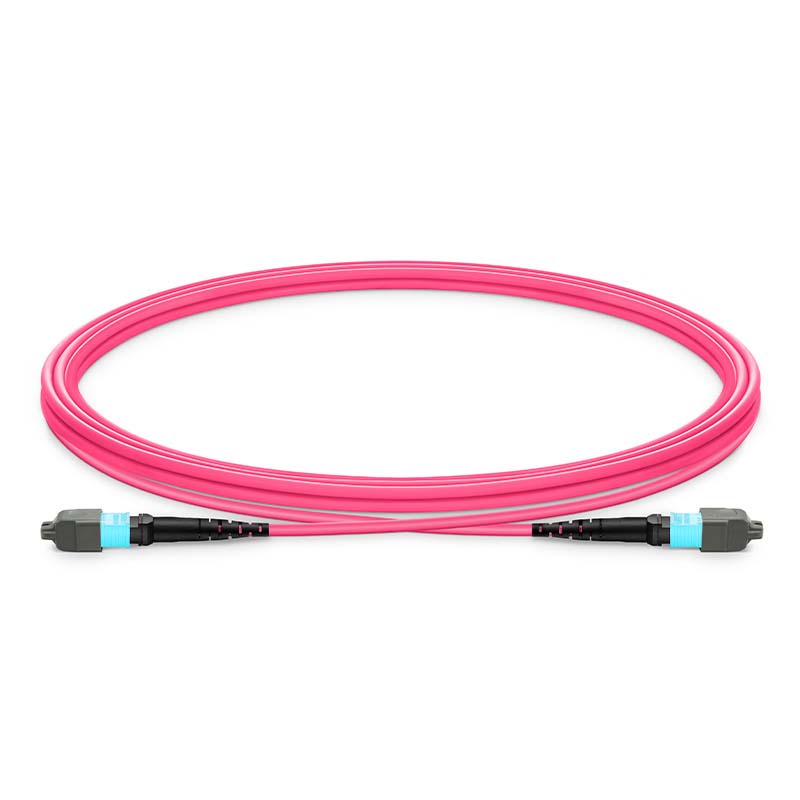

5m（16ft）OM4 12芯MTP®-12 UPC（母头）转MTP®-12 UPC（母头）多模光纤跳线，LSZH，0.35dB，极性A，品红色
￥640

型号：MTP®-12，母-母，OM4

加入购物车

产品特征

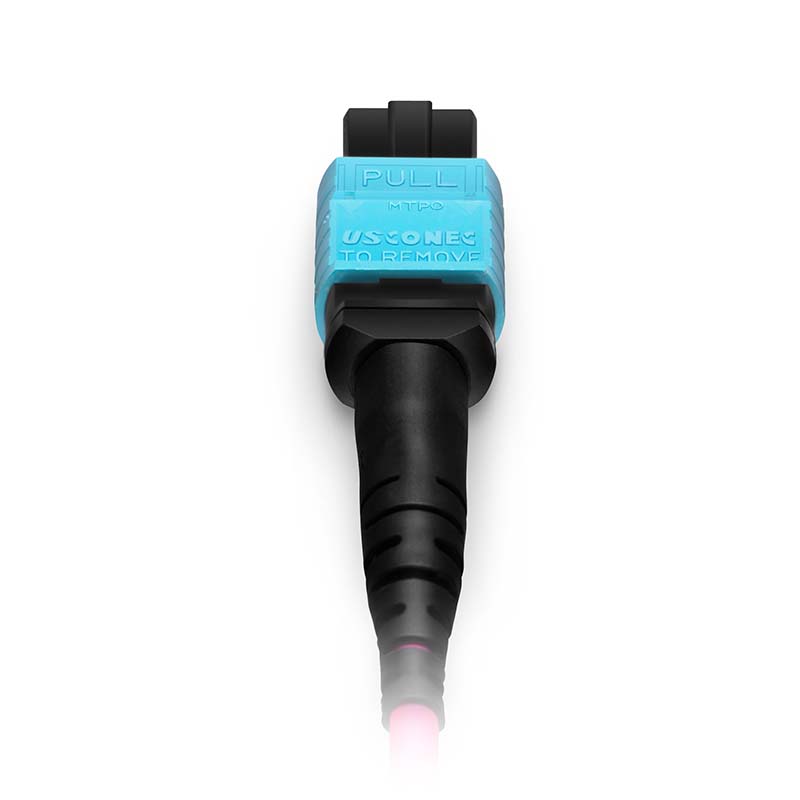

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

Typically used for intra-cabinet cabling

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-12 Fiber Patch Cord, Female-Female, UPC, 12-strand, OM4, LSZH, 0.35dB, Polarity A

MTP®-12光纤跳线，母-母，UPC，12芯，OM4，OFNP，0.25dB，极性A


When used with MTP backbone cables, MTP fiber patch cords enable seamless migration of data center multimode systems to higher data transmission rates. Primarily used for intra-cabinet connections, they serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in space-constrained data centers with stringent cable management requirements.
As MTP-12 supports MTP®-8 fiber systems, it is also highly suitable for 8-fiber parallel multimode optical module applications, such as connections for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optical modules.


Specifications:

ParameterSpecification

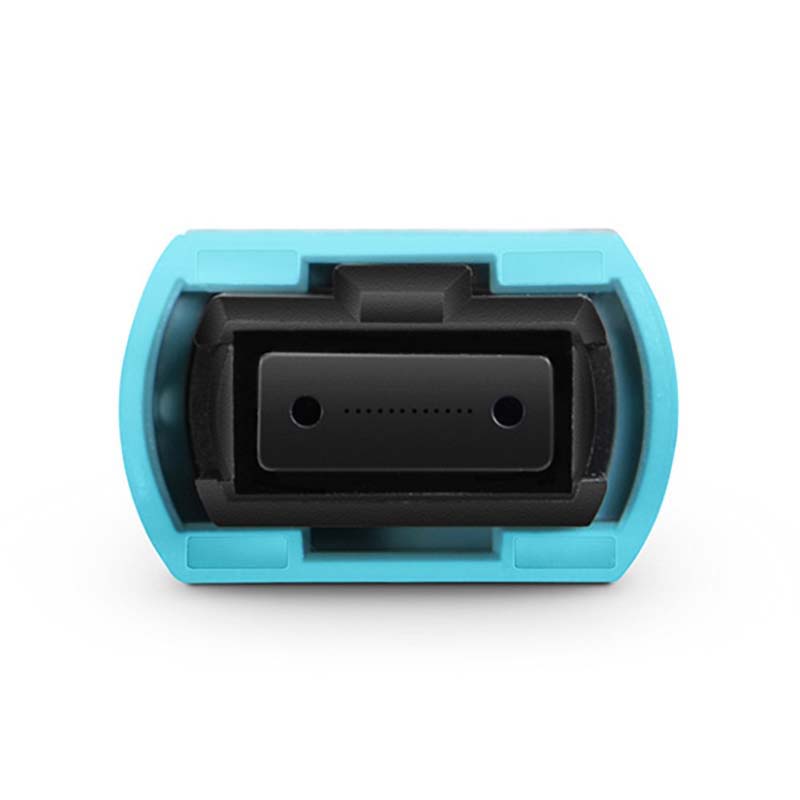

Connector AUS Conec MTP® Female (No Key Pin)
Connector BUS Conec MTP® Female (No Key Pin)
Polishing TypeUPC-UPC
Fiber TypeCorning ClearCurve® OM4 50/125µm
Fiber Count12-core
Wavelength850/1300nm
PolarityPolarity A
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum (LSZH)
Minimum Bend Radius (Fiber)7.5mm
Minimum Bend Radius (Patch Cord)20/10D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long Term/Short Term)90/180N
Insertion Loss≤0.25dB
Return Loss≥20dB
Attenuation @850nm≤3.5dB/km
Attenuation @1300nm≤1.5dB/km
Operating Temperature0~60°C (32~140°F)
Storage Temperature-10~70°C (14~158°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
