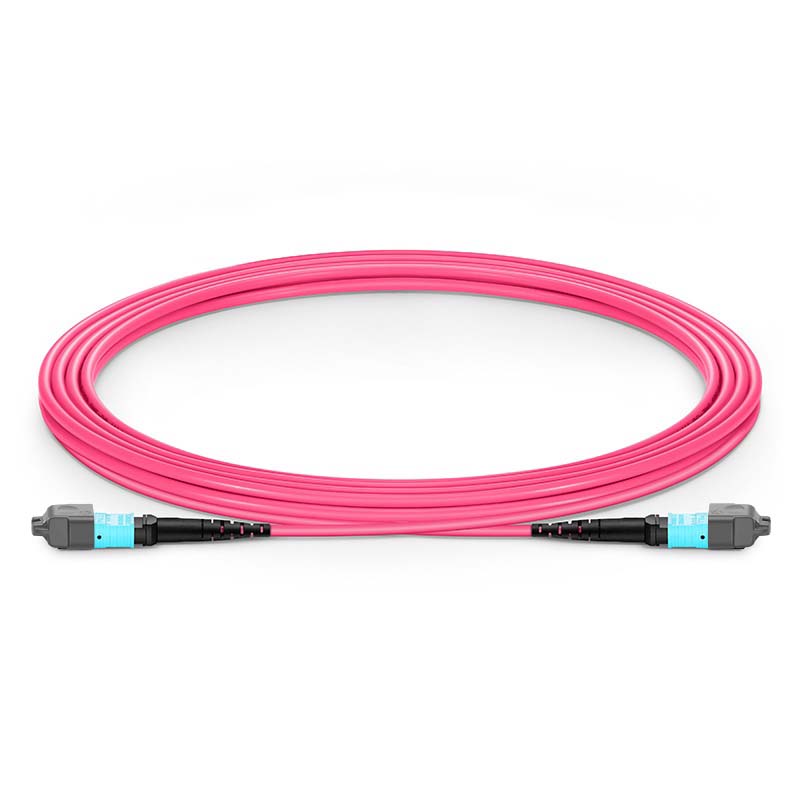

3m (10ft) OM4 12-core MTP®-12 UPC (Male) to MTP®-12 UPC (Female) Multimode Fiber Patch Cord, LSZH, ≤0.35dB, Polarity B, Magenta
￥1

型号：MTP®-12，公-母，OM4

加入购物车

产品特征

  • 商品详情
  • 资料下载(PDF)

线缆详情页07+08

线缆详情页02

线缆详情页03

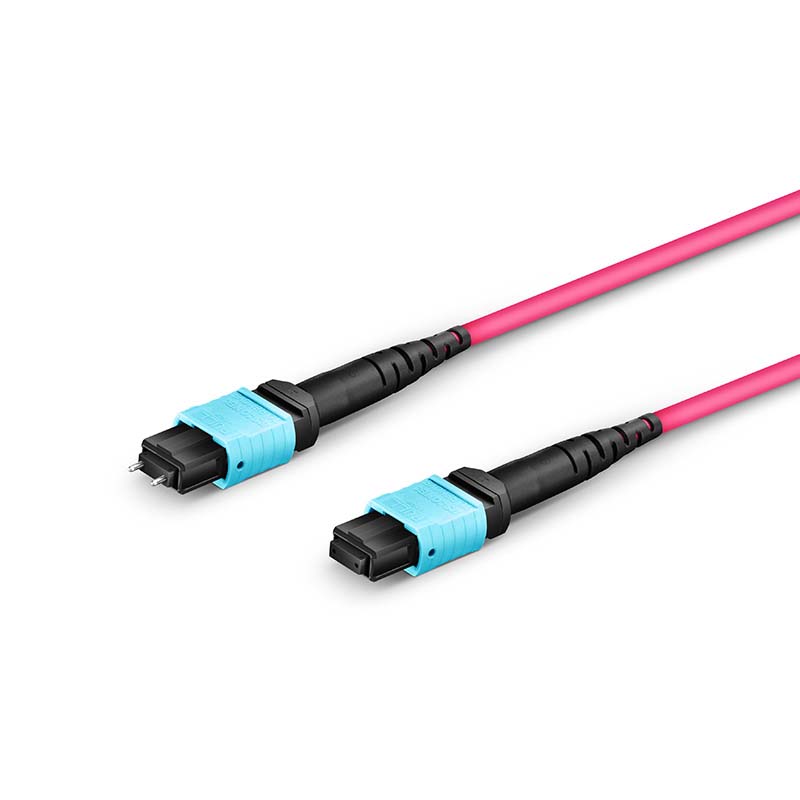

MTP®-12 Fiber Patch Cord, Male-Female, UPC, 12-core, OM4, LSZH, ≤0.35dB, Polarity B

MTP®-12光纤跳线，公-母，UPC，12芯，OM4，OFNP，0.35dB，极性B


When used with backbone cables, MTP fiber patch cords enable seamless migration of data center multimode systems to higher data transmission rates. Primarily used for intra-cabinet connections, they serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in space-constrained data centers with strict cable management requirements.

As MTP-12 supports MTP-8 fiber systems, it is also highly suitable for 8-fiber parallel multimode optical module applications, such as direct connections for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optical modules.


Specifications:

ParameterSpecification

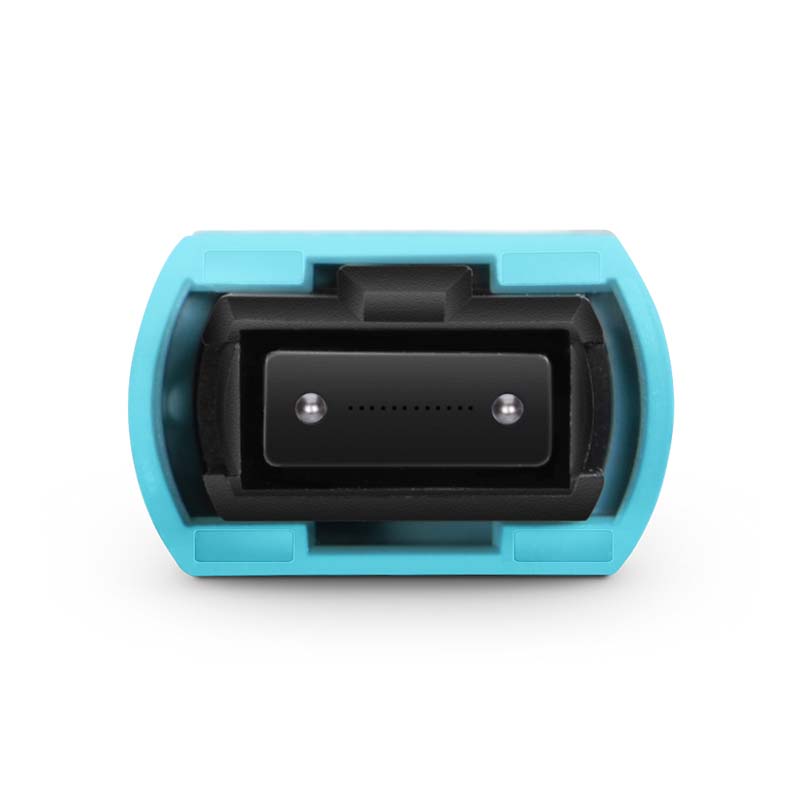

Connector AUS Conec MTP® Male (With Key Pin)

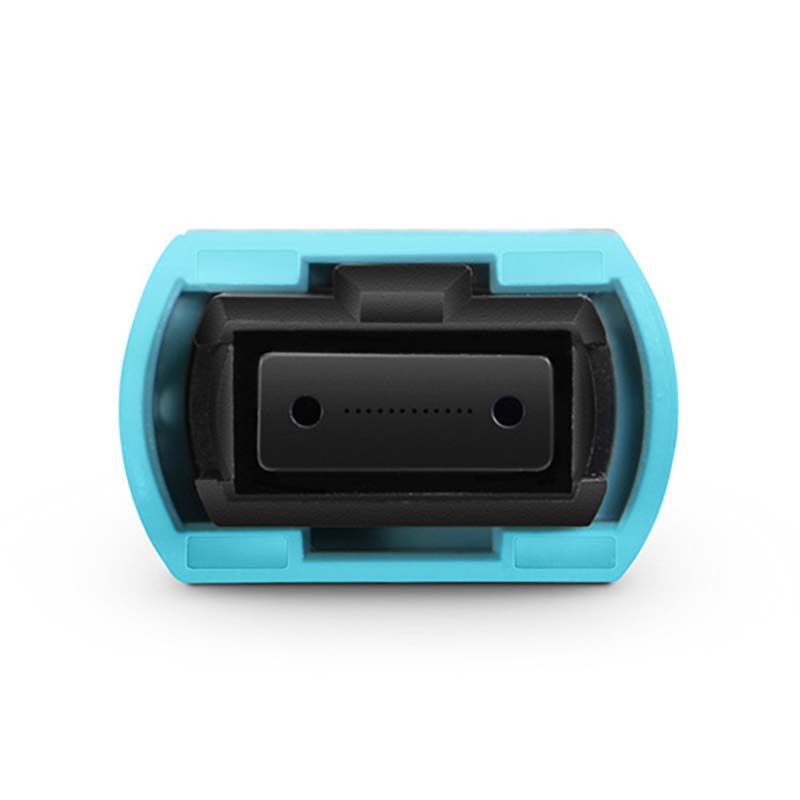

Connector BUS Conec MTP® Female (No Key Pin)
Polishing TypeUPC-UPC
Fiber TypeCorning® ClearCurve® OM4 50/125µm
Fiber Count12-core
Wavelength850/1300nm
PolarityPolarity B
Cable Outer Diameter (OD)7.5mm
Cable JacketPlenum (OFNP)
Minimum Bend Radius (Fiber)10mm
Minimum Bend Radius (Patch Cord)20/10D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long Term/Short Term)80/240N
Insertion Loss≤0.35dB (0.15dB typical)
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)
