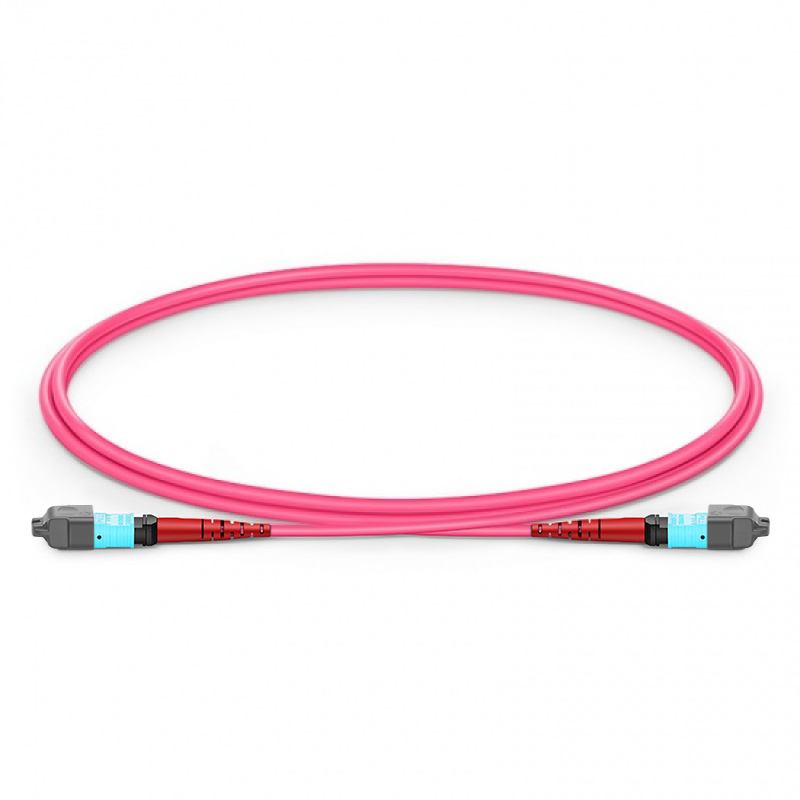

1m (3ft) OM4 24-Core MTP®-24 UPC (Female) to MTP®-24 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity A, Magenta
￥910

型号：HZ-24BMPOOM4-3M

加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

Typically used for intra-rack cabling

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

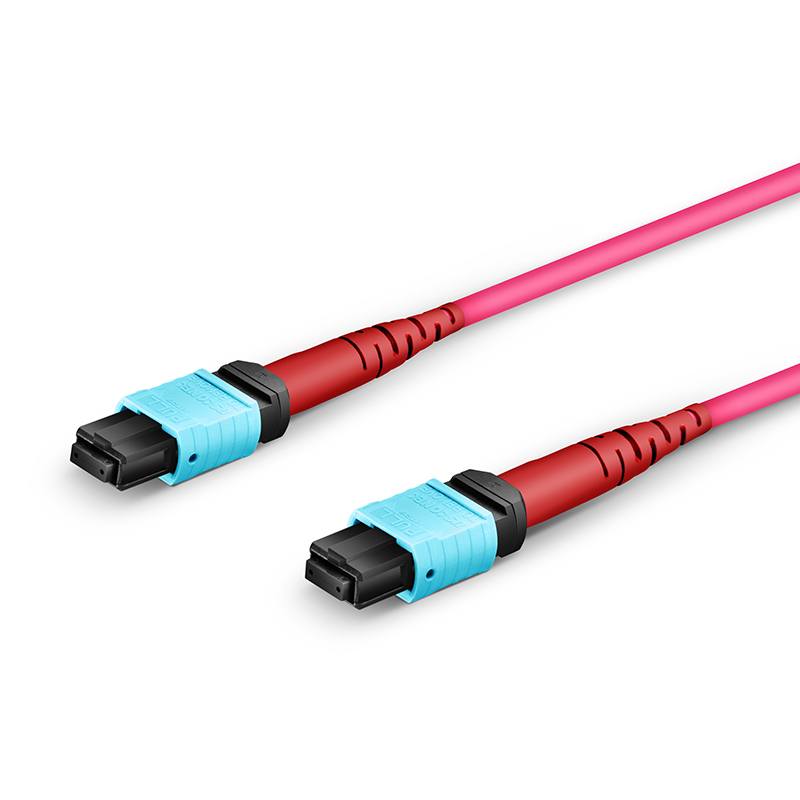

MTP®-24 Fiber Patch Cord, Female-Female, UPC, 24-Core, OM4, LSZH, 0.35dB, Polarity A

MTP®-24光纤跳线，母-母，UPC，24芯，OM4，LSZH，0.35dB，极性A


When used with backbone patch cords, MTP® fiber patch cords enable seamless migration of data center multimode systems during data rate upgrades. Primarily used for intra‑rack connections, these patch cords serve as a cost‑effective alternative that eliminates time‑consuming on‑site termination. They are ideal for high‑density fiber cabling in data centers with limited space and strict cable management requirements.
MTP‑24 is designed for 20‑lane parallel multimode optical module applications, such as connections for 100G CFP SR10 and 100G CXP SR10 optical modules.


Specifications:

ItemSpecification

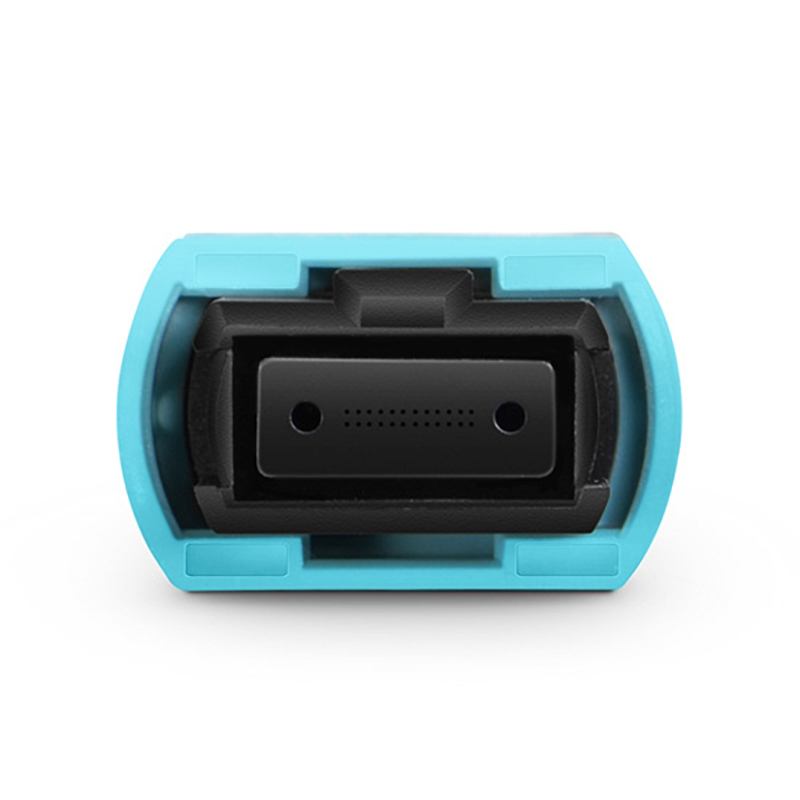

Connector AUS Conec MTP® Female (no guide pin)
Connector BUS Conec MTP® Female (no guide pin)
Polish TypeUPC-UPC
Fiber TypeOM4 50/125µm, Corning ClearCurve®
Wavelength850/1300nm
Fiber Count24-Core
PolarityPolarity B
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Minimum Bend Radius (Fiber)7.5mm
Minimum Bend Radius (Patch Cord)20/10D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long/Short Term)80/240N
Insertion Loss≤0.35dB (Typ. 0.15dB)
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
