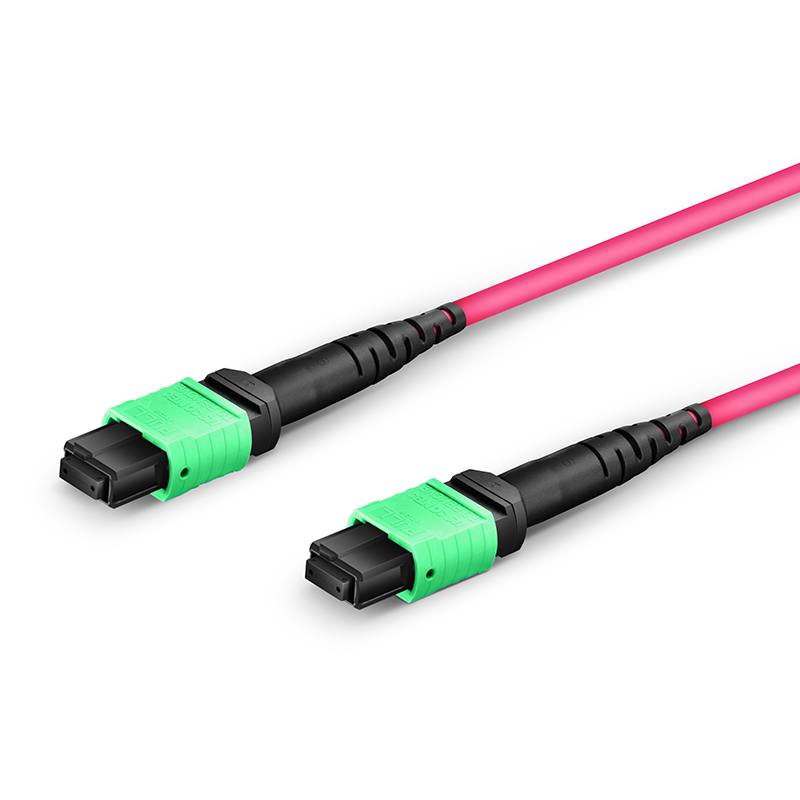

1m (3ft) OM4 16-Core MTP®-16 APC (Female) to MTP®-16 APC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Magenta
￥1130

型号：HZ-16BMPOOM4-3M

加入购物车

产品特征

  • 商品详情
  • 资料下载(PDF)

MTP®-16 Fiber Patch Cord, Female-Female, APC, 16-Core, OM4, LSZH, 0.35dB

MTP®-16光纤跳线，母-母，APC，16芯，OM4，LSZH，0.35dB


When used with backbone patch cords, MTP® fiber patch cords enable seamless migration of data center multimode systems during data rate upgrades. Primarily used for intra-rack connections, these patch cords are a cost-effective alternative that eliminates time-consuming on-site termination, making them suitable for high-density fiber cabling in data centers with limited space and stringent cable management requirements.
MTP-16 supports 16-fiber parallel multimode optical module applications, such as connections for 400G QSFP-DD SR8 optical modules.


Specifications:

ItemSpecification

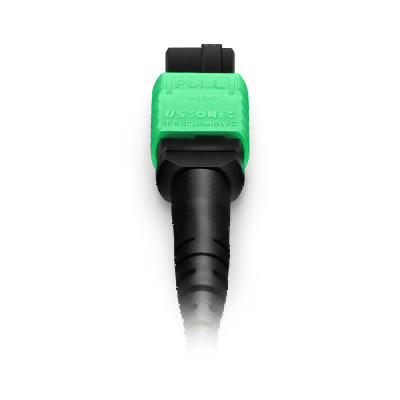

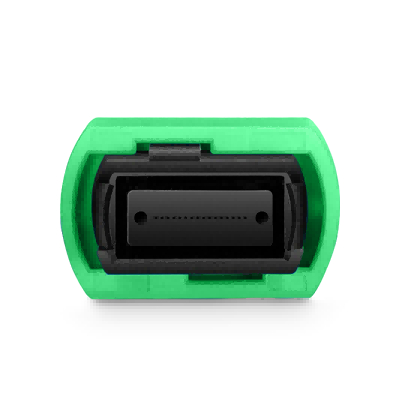

Connector AUS Conec MTP® Female (no guide pin)
Connector BUS Conec MTP® Female (no guide pin)
Polish TypeAPC-APC
Fiber TypeOM4 50/125µm, Corning ClearCurve®
Wavelength850/1300nm
Fiber Count16-Core
RoHS ComplianceCompliant
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Minimum Bend Radius (Fiber)7.5mm
Minimum Bend Radius (Patch Cord)20/10D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long/Short Term)80/240N
Insertion Loss≤0.35dB (Typ. 0.15dB)
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)
