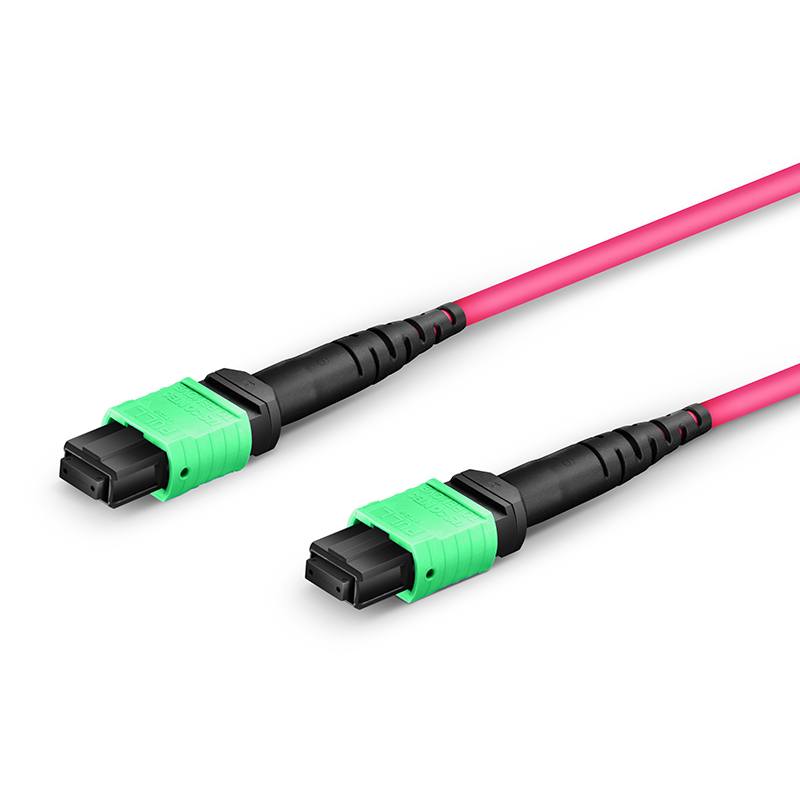

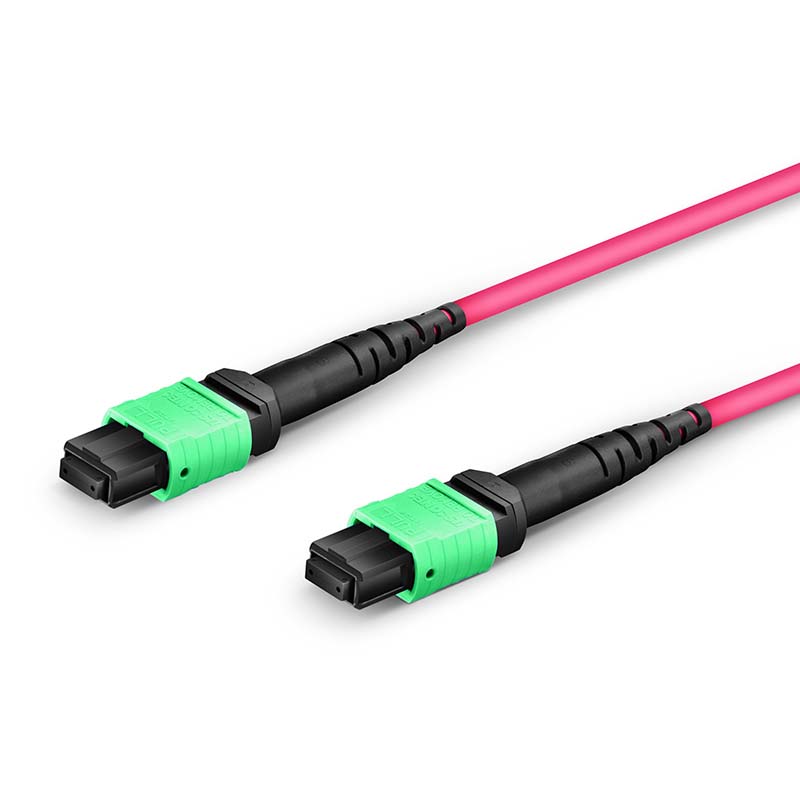

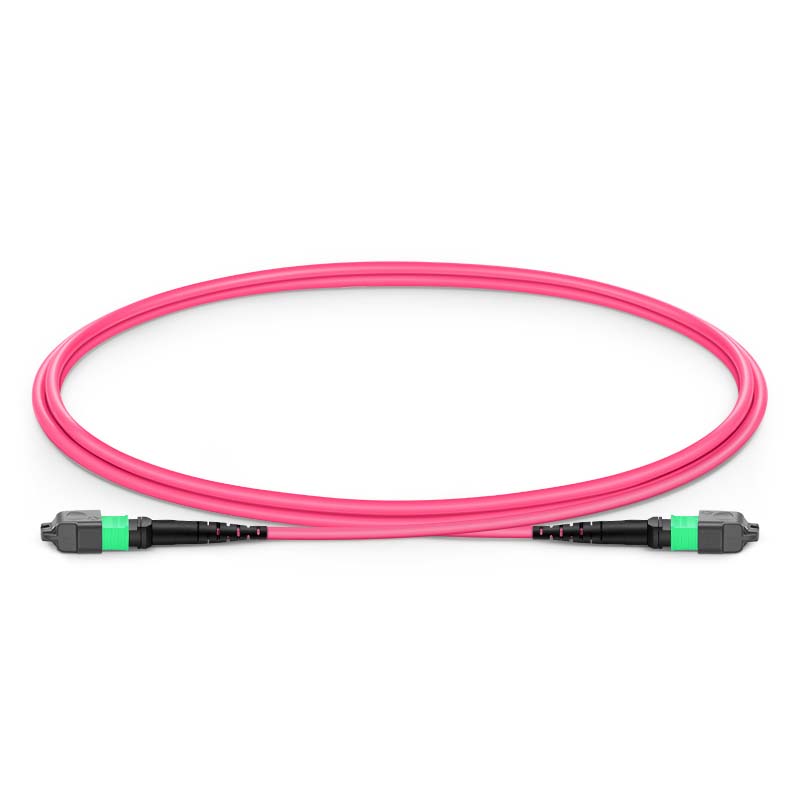

1m (3ft) OM4 12-Core MTP®-12 APC (Female) to MTP®-12 APC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Magenta
￥1

型号：MTP® -12，母-母，OM4

加入购物车

产品特征

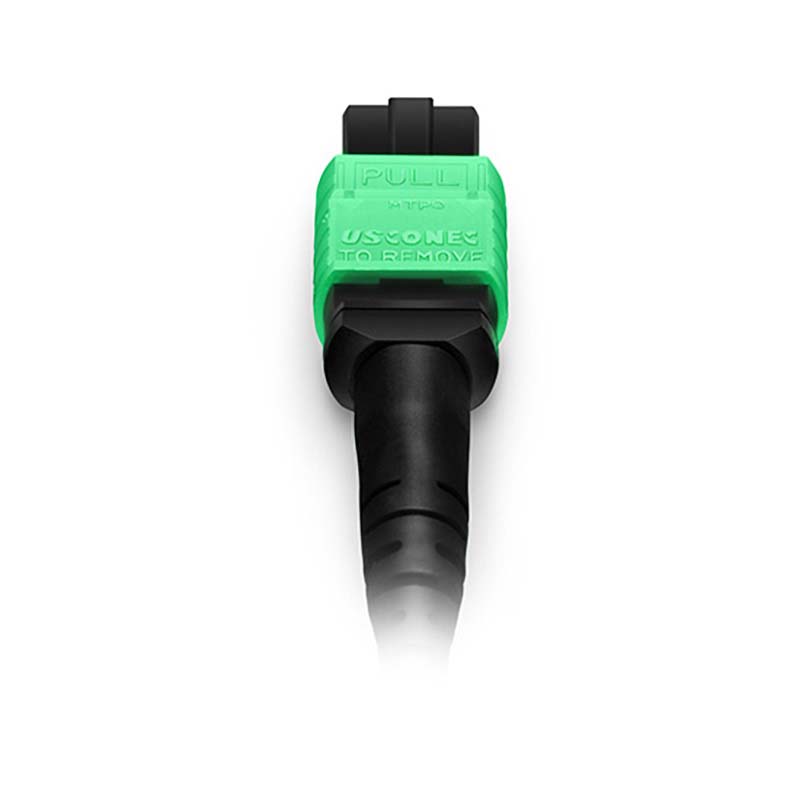

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

Allows field conversion of guide pins and polarity

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-12 Fiber Patch Cord, Female-Female, APC, 12-Core, OM4, LSZH, 0.35dB, Polarity B

MTP®-12光纤跳线，母-母，APC，12芯，OM4，LSZH，0.35dB，极性B


When used with backbone patch cords, MTP® fiber patch cords enable seamless migration of data center multimode systems during data rate upgrades. Primarily used for intra-rack connections, these patch cords serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and stringent cable management requirements.
MTP-12 APC (Female) to MTP-12 APC (Female) OM4 backbone patch cords are designed for connecting InfiniBand and Ethernet multimode dual-port OSFP, single-port OSFP, and QSFP112 optical modules. Typical applications include interconnecting dual-port OSFP switches and connecting to ConnectX-7® network adapters or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.


Specifications:

ItemSpecification

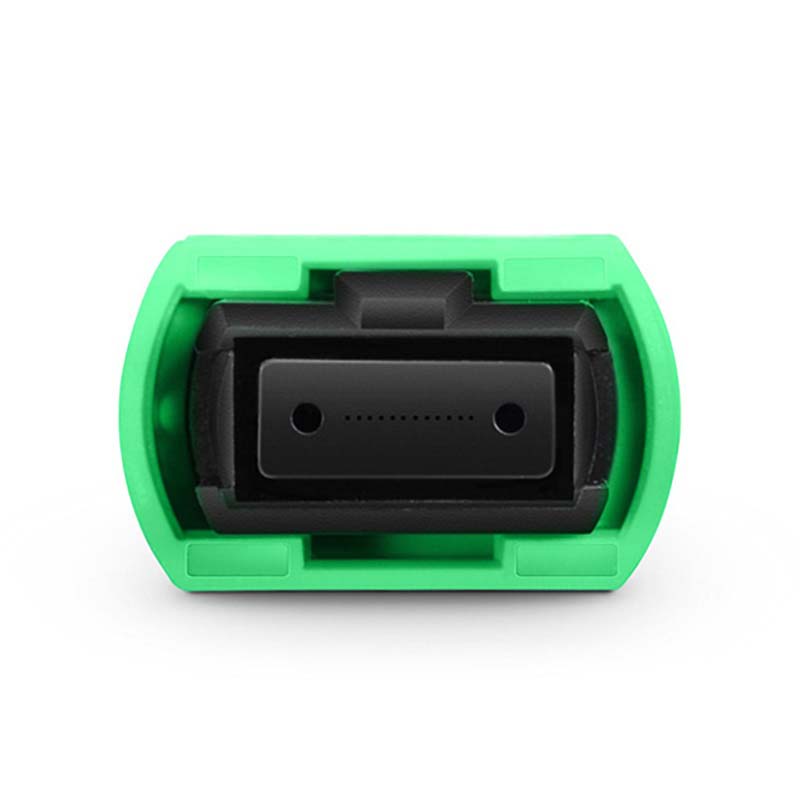

Connector AUS Conec MTP® Female (no guide pin)
Connector BUS Conec MTP® Female (no guide pin)
Polish TypeAPC-APC
Fiber TypeOM4 50/125µm, Corning ClearCurve®
Wavelength850/1300nm
Fiber Count12-Core
PolarityPolarity B
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum ( LSZH)
Minimum Bend Radius (Fiber)7.5mm
Minimum Bend Radius (Patch Cord)20/10D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long/Short Term)80/240N
Insertion Loss≤0.35dB (Typ. 0.15dB)
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
