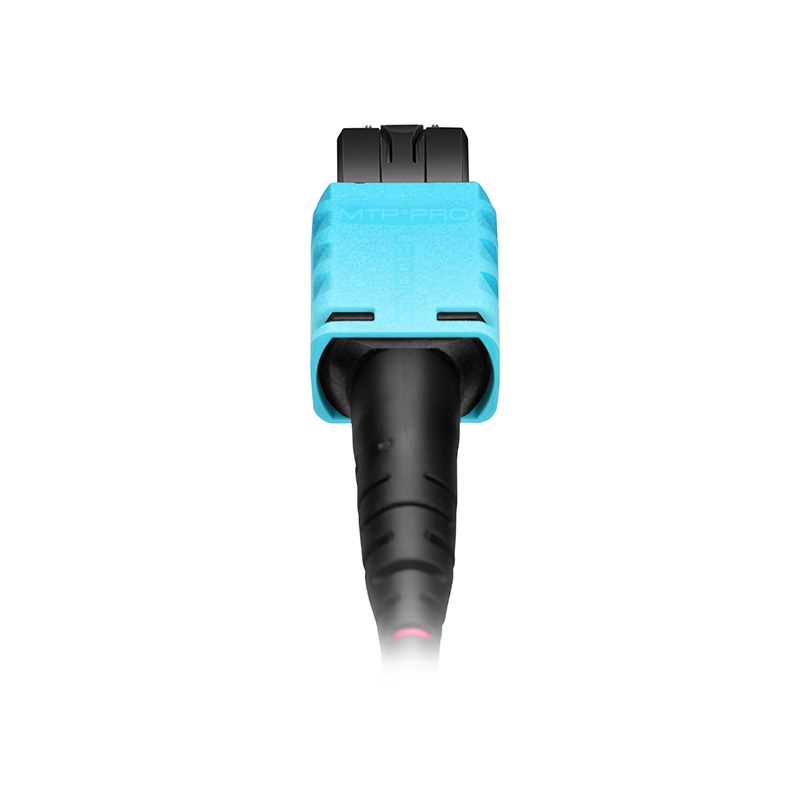

2m (7ft) OM4 12-Core MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Magenta
￥760

型号：MTP® PRO-12，公-公，OM4

加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

Allows field conversion of guide pins and polarity

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP® PRO-12 Fiber Patch Cord, Male-Male, UPC, 12-Core, OM4, LSZH, 0.35dB, Polarity B

MTP® PRO-12光纤跳线，公-公，UPC，12芯，OM4，LSZH，0.35dB，极性B


When used with backbone patch cords, MTP® fiber patch cords enable seamless migration of data center multimode systems during data rate upgrades. Primarily used for intra-rack connections, these patch cords serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and stringent cable management requirements.
Designed for simplicity and reliability, MTP PRO allows quick and efficient conversion of connector polarity and pins without removing the housing or handling loose pins. By simply inserting a specially designed MTP PRO tool, the keying configuration can be converted by retracting the exposed key while extracting the hidden key on the opposite side of the connector.


Specifications:


ItemSpecification

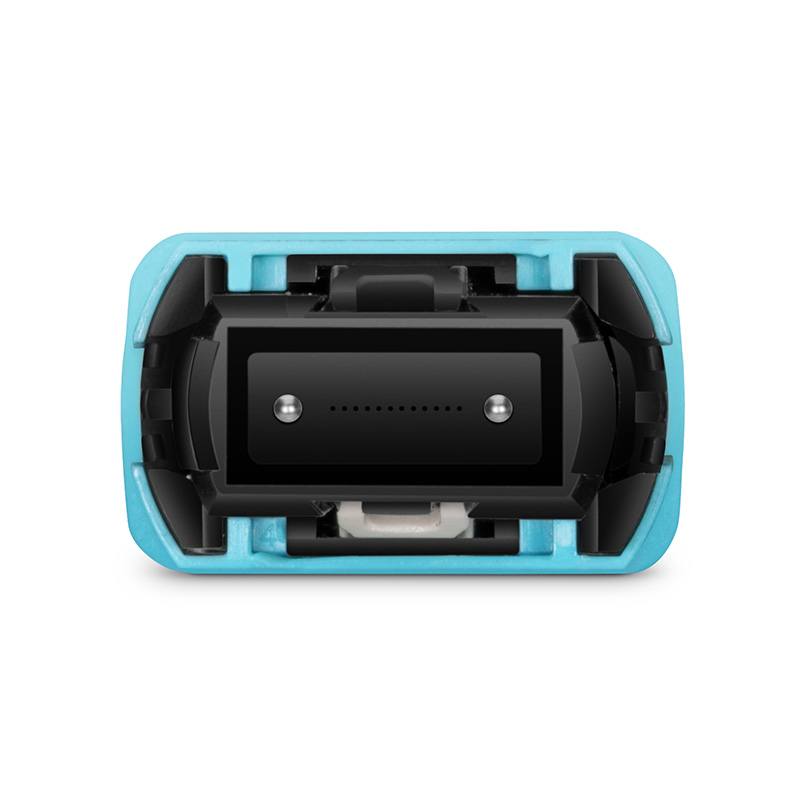

Connector AUS Conec MTP® PRO Male (with guide pins)
Connector BUS Conec MTP® PRO Male (with guide pins)
Polish TypeUPC-UPC
Fiber TypeOM4 50/125µm, Corning ClearCurve®
Wavelength850/1300nm
Fiber Count12-Core
PolarityPolarity B
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum (  LSZH)
Minimum Bend Radius (Fiber)7.5mm
Minimum Bend Radius (Patch Cord)20/10D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long/Short Term)80/240N
Insertion Loss≤0.35dB
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
