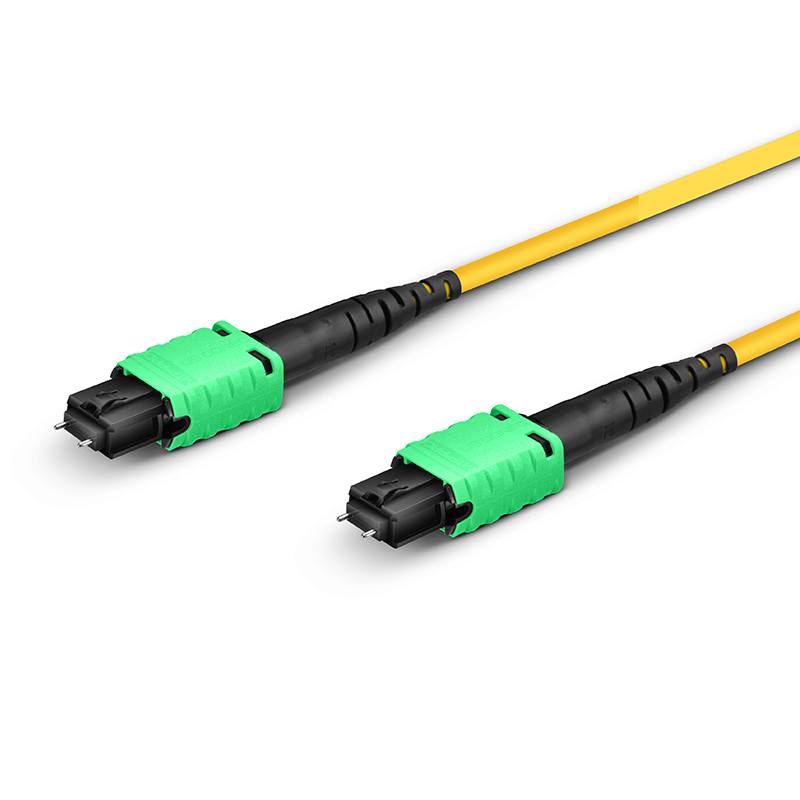

2m (7ft) OS2 12-Core MTP® PRO-12 APC (Male) to MTP® PRO-12 APC (Male) Singlemode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Yellow
￥830

型号：MTP PRO-12，公-公，OS2

加入购物车

产品特征

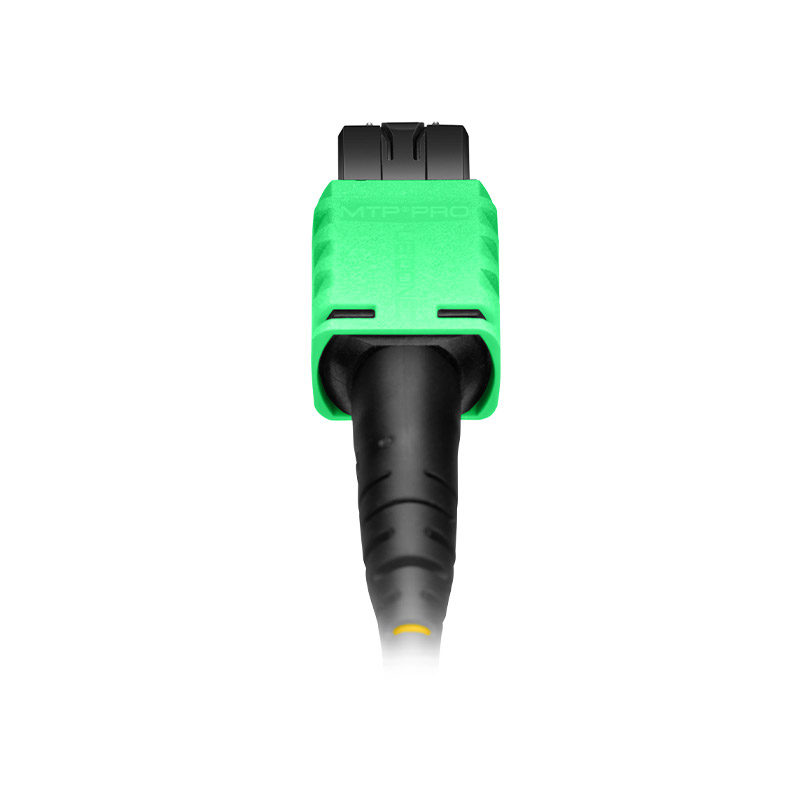

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Allows field conversion of guide pins and polarity

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP® PRO-12 Fiber Patch Cord, Male-Male, APC, 12-Core, OS2, LSZH, 0.35dB, Polarity B

MTP® PRO-12光纤跳线，公-公，APC，12芯，OS2，LSZH，0.35dB，极性B


When used with backbone patch cords, MTP® fiber patch cords enable seamless migration of data center multimode systems during data rate upgrades. Primarily used for intra-rack connections, these patch cords serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and stringent cable management requirements.

Designed for simplicity and reliability, MTP® PRO allows quick and efficient conversion of connector polarity and pins without removing the housing or handling loose pins. By simply inserting a specially designed MTP® PRO tool, the keying configuration can be converted by retracting the exposed key while extracting the hidden key on the opposite side of the connector.


Specifications:


ItemSpecification
Connector AUS Conec MTP® PRO Male (with guide pins)
Connector BUS Conec MTP® PRO Male (with guide pins)
Polish TypeUPC-UPC
Fiber TypeOM4 50/125µm, Corning ClearCurve®
Wavelength850/1300nm
Fiber Count12-Core
PolarityPolarity B
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Minimum Bend Radius (Fiber)7.5mm
Minimum Bend Radius (Patch Cord)20/10D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long/Short Term)80/240N
Insertion Loss≤0.35dB
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)

线缆详情页04+05线缆详情页06

线缆详情页07+08
