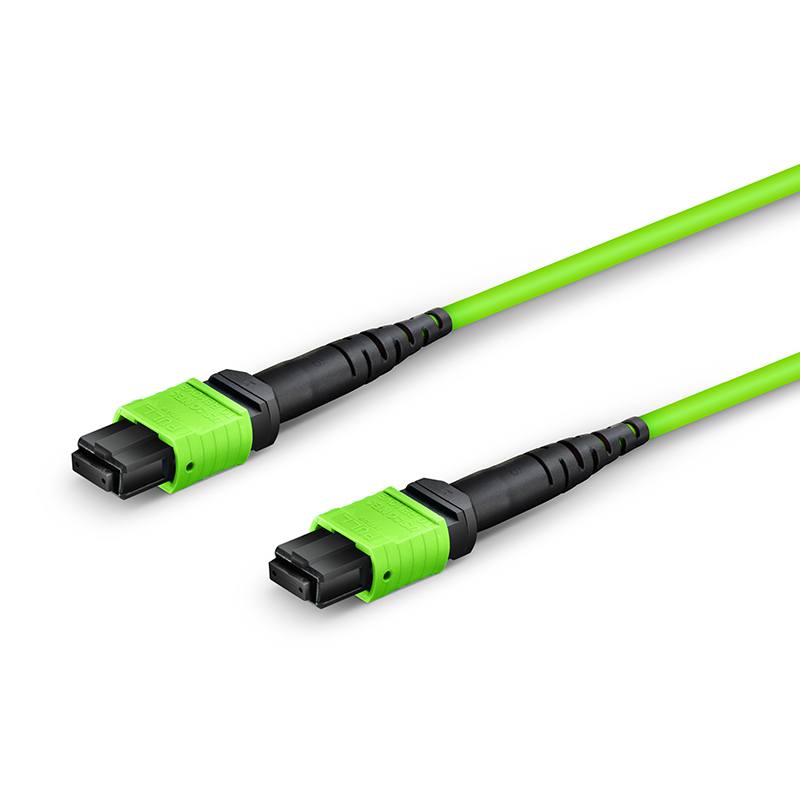

1m (3ft) OM5 12-Core MTP®-12 UPC (Female) to MTP®-12 UPC (Female) Multimode Fiber Patch Cord, LSZH, 0.35dB, Polarity B, Lime Green
￥560

型号：MTP®-12，母-母，OM5

加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning bend-insensitive fiber with a minimum bend radius of 7.5mm

Color-coded connector boots for easy identification

The WBMMF solution supports at least 4 wavelengths

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-12 Fiber Patch Cord, Female-Female, UPC, 12-Core, OM5, LSZH, 0.35dB, Polarity B

MTP®-12光纤跳线，母-母，UPC，12芯，OM5，LSZH，0.35dB，极性B


MTP fiber patch cords, when used with backbone jumpers, enable seamless migration for multimode systems in data centers during data rate upgrades. These fiber patch cords are primarily used for intra-rack connections. As a cost-effective alternative, they eliminate time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and stringent cable management requirements.
OM5 fiber patch cords comply with relevant standards, meet OM3 and OM4 specifications, and add differential mode delay (DMD) requirements to compensate for mode and dispersion effects. In addition, they exhibit additional bandwidth characteristics at 953 nm to support longer-distance transmission using SWDM. OM5 fiber patch cords are particularly suitable for data centers requiring rapid infrastructure deployment while maintaining consistent bandwidth across the entire system.


Specifications:

ItemSpecification

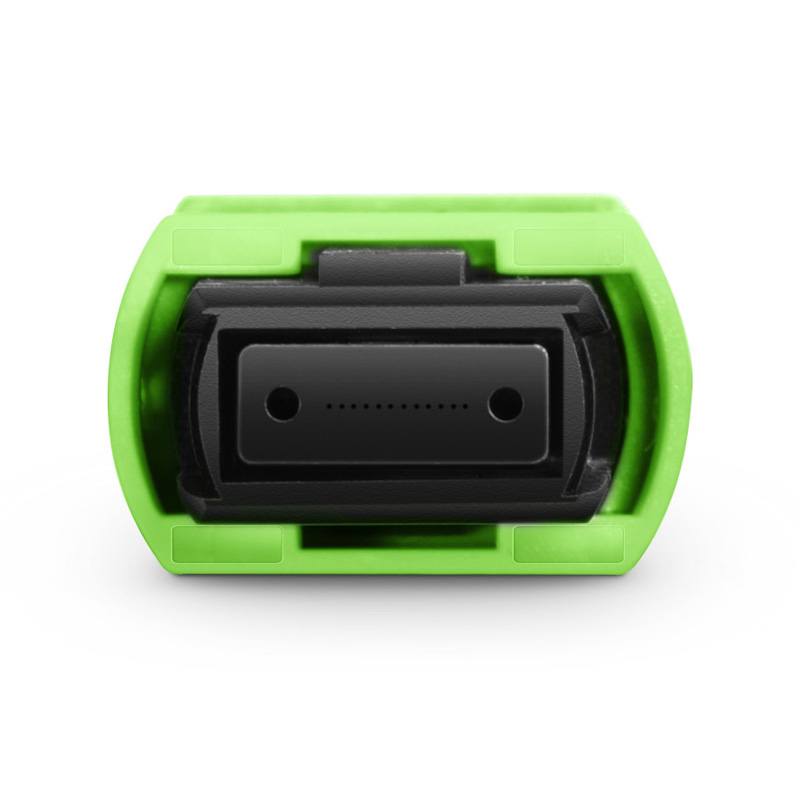

Connector AUS Conec MTP® Female (no guide pin)
Connector BUS Conec MTP® Female (no guide pin)
Polish TypeUPC-UPC
Fiber GradeBend Insensitive
Fiber TypeOM5 50/125µm
Wavelength850/1300nm
Fiber Count12-Core
PolarityPolarity B
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum (LSZH)
Minimum Bend Radius (Fiber)7.5mm
Minimum Bend Radius (Patch Cord)20/10D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long/Short Term)80/240N
Insertion Loss≤0.35dB (Typ. 0.15dB)
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)
