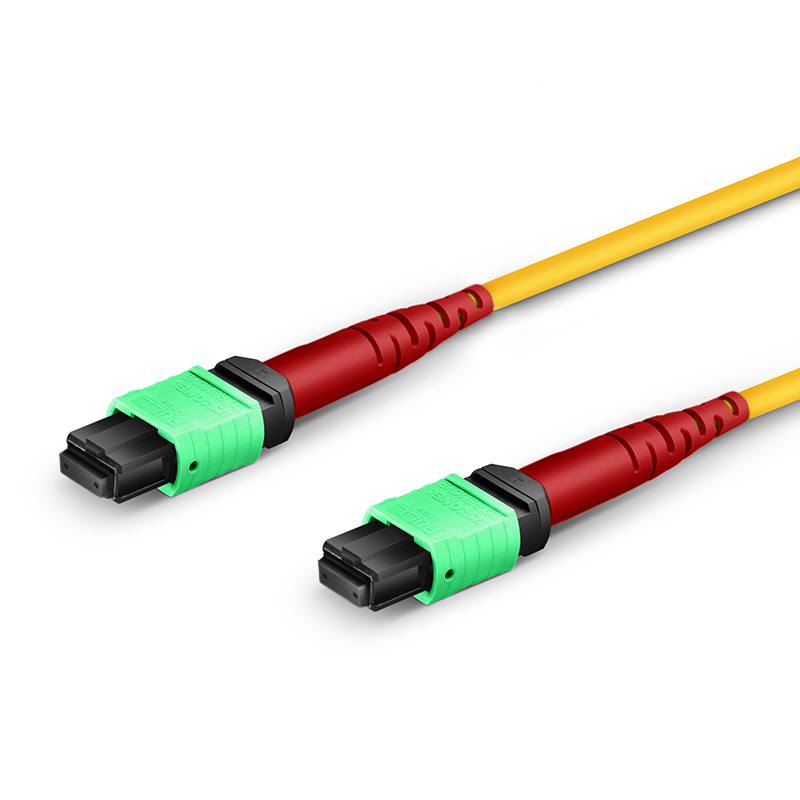

1m (3ft) OS2 24-Core MTP®-24 APC (Female) to MTP®-24 APC (Female) Single-Mode Fiber Patch Cord, LSZH, 0.35dB, Polarity A, Yellow
￥1590

型号：MTP®-24，母-母，OS2

加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

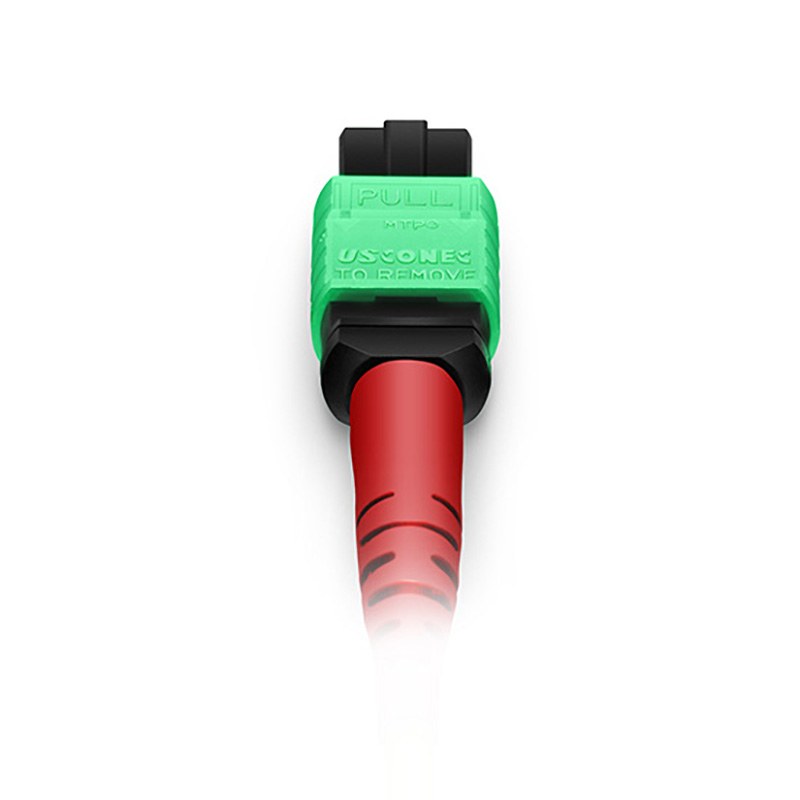

Color-coded connector boots for easy identification

Typically used for intra-rack cabling

  • 商品详情
  • 资料下载(PDF)

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            线缆详情页01

MTP®-24 Fiber Patch Cord, Female-Female, APC, 24-core, OS2, LSZH, ≤0.35dB, Polarity A

MTP®-24光纤跳线，母-母，APC，24芯，OS2，LSZH，0.35dB，极性A


When used with MTP backbone cables, MTP® fiber patch cords enable seamless migration of data center multimode systems to higher transmission speeds.

Primarily used for intra-cabinet connections, they offer a cost-effective solution that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in space-constrained data centers with strict cable management 是、requirements.


Specifications:

ItemSpecification

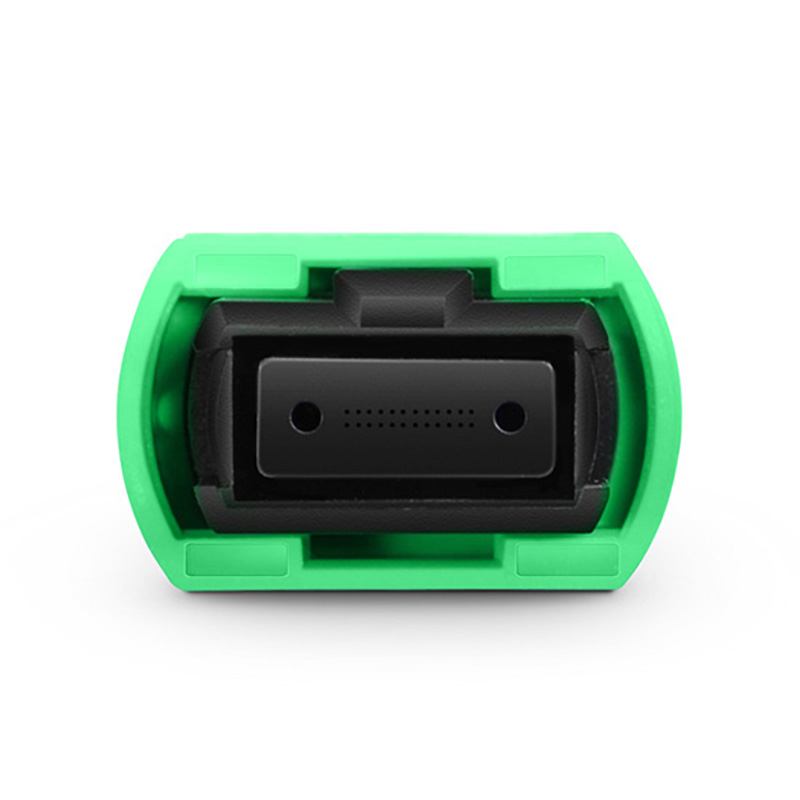

Connector AUS Conec MTP® Female (no pin)
Connector BUS Conec MTP® Female (no pin)
Polishing TypeAPC-APC
Fiber TypeOS2 9/125μm, Corning SMF-28®
Fiber Count24 fibers
Operating Wavelength1310/1550 nm
PolarityPolarity A
Cable Outer Diameter (OD)3.0 mm
Cable JacketPlenum (OFNP)
Minimum Bend Radius (Fiber)10 mm
Minimum Bend Radius (Patch Cord)10/5D (dynamic/static)
Connector Durability500 matings
Tensile Strength (Long-term/Short-term)80/240 N
Insertion Loss≤0.35 dB (typical 0.15 dB)
Return Loss≥60 dB
Attenuation @850 nm≤0.32 dB/km
Attenuation @1300 nm≤0.18 dB/km
Operating Temperature-10 ~ 70 °C (14 ~ 158 °F)
Storage Temperature-40 ~ 85 °C (-40 ~ 185 °F)
