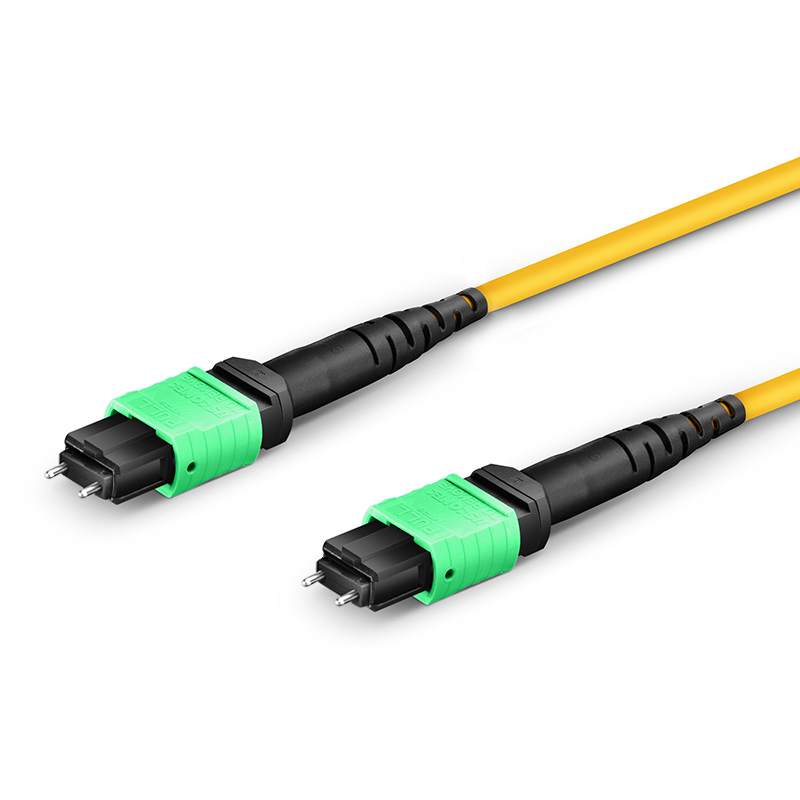

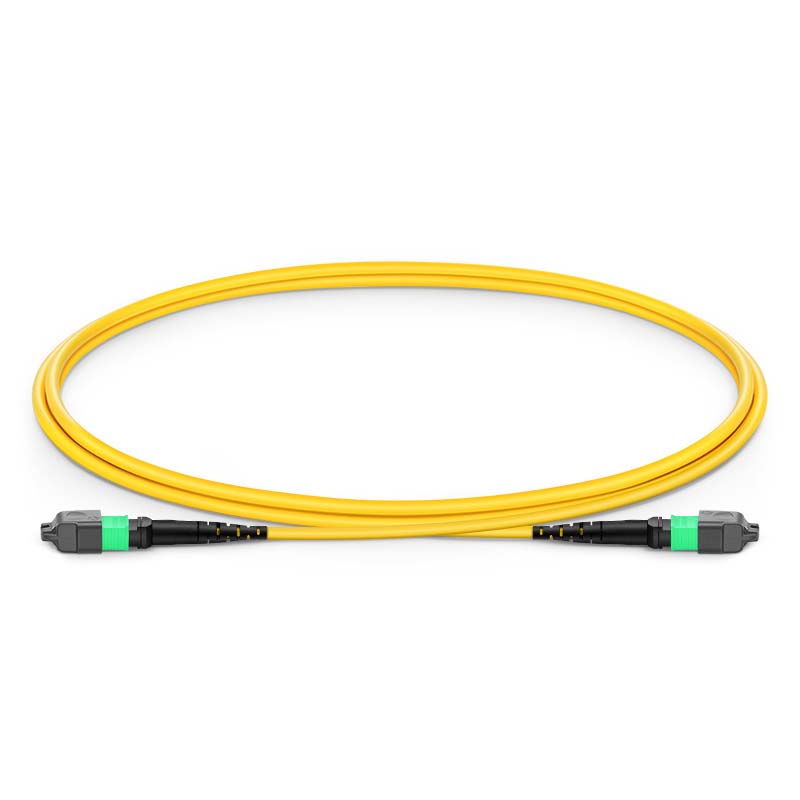

1m (3ft) OS2 12-core MTP®-12 APC (Male) to MTP®-12 APC (Male) Single-mode Fiber Patch Cord, LSZH, ≤0.35dB, Polarity A, Yellow
￥670

型号：MTP®-12，公-公,OS2

加入购物车

产品特征

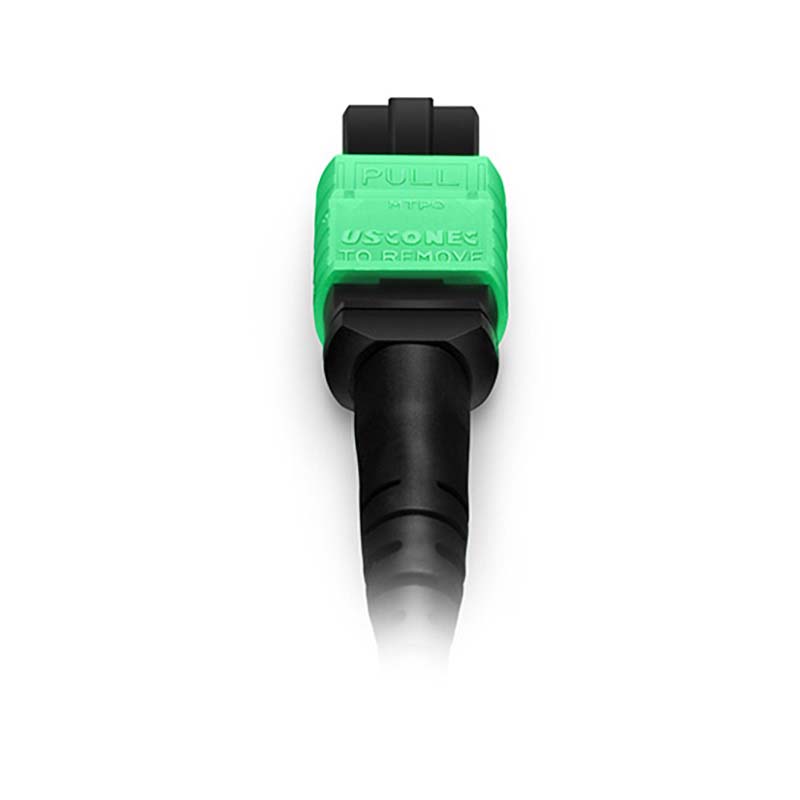

US Conec MTP® connector with low insertion loss of 0.35dB

Corning® SMF-28® fiber with a minimum bend radius of 10mm

Rated to OFNP flame rating for plenum spaces

Color-coded connector boots for easy identification

Typically used for intra-cabinet cabling

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-12 Fiber Patch Cord, Male-Male, APC, 12-core, OS2, LSZH, ≤0.35dB, Polarity A

MTP®-12光纤跳线，公-公，APC，12芯，OS2，LSZH，0.35dB，极性A


When used with MTP backbone cables, MTP® fiber patch cords enable seamless migration of data center multimode systems to higher data transmission rates. Primarily used for intra-cabinet connections, they provide a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in space-constrained data centers with strict cable management requirements.
As MTP-12 supports MTP-8 fiber systems, it is also suitable for 8-fiber parallel multimode optical module applications, such as connections for 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optical modules.


Specifications:

ParameterSpecification
Connector AUS Conec MTP® Female (No Key Pin)
Connector BUS Conec MTP® Female (No Key Pin)
Polishing TypeAPC-APC
Fiber TypeCorning® SMF-28® OS2 9/125µm
Fiber Count12-core
Wavelength1310/1550nm
PolarityPolarity B
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Minimum Bend Radius (Fiber)10mm
Minimum Bend Radius (Patch Cord)10/5D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long Term/Short Term)80/240N
Insertion Loss≤0.75dB
Return Loss≥60dB
Attenuation @850nm≤0.32dB/km
Attenuation @1300nm≤0.18dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)
