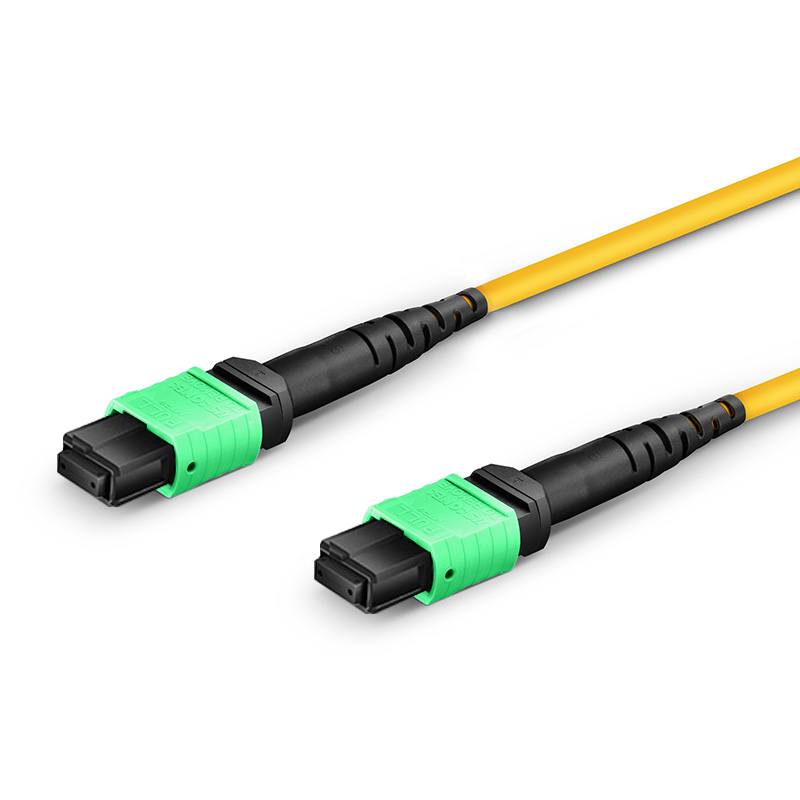

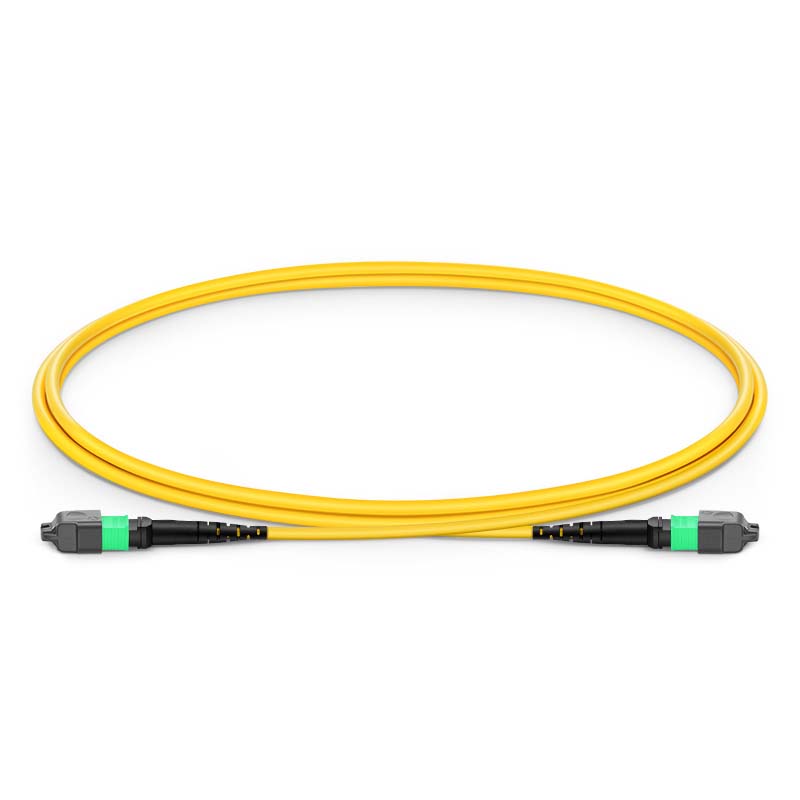

1m (3ft) OS2 16-Core MTP®-16 APC (Female) to MTP®-16 APC (Female) Single-mode Fiber Patch Cord, LSZH, 0.75dB, Yellow
￥1940

型号：MTP®-16，母-母，OS2

加入购物车

产品特征

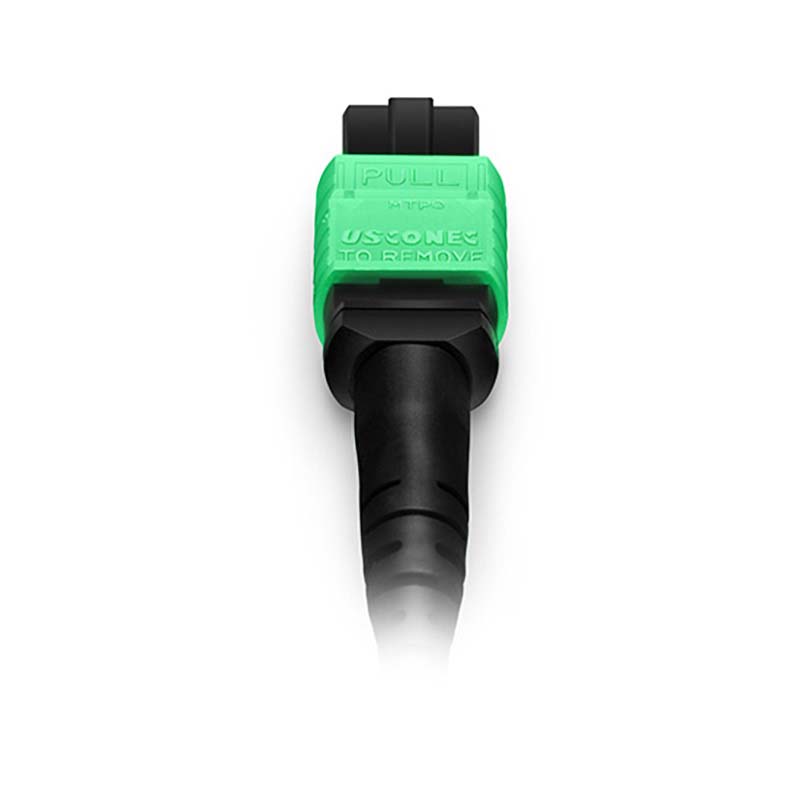

US Conec MTP® connector with a standard insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for intra-rack cabling

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-16 Fiber Patch Cord, Female-Female, APC, 16-Core, OS2, LSZH, 0.75dB

MTP®-16光纤跳线，母-母，APC，16芯，OS2，OFNP，0.75dB


When used with backbone patch cords, MTP® fiber patch cords enable seamless migration of data center multimode systems during data rate upgrades. Primarily used for intra-rack connections, these patch cords serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and stringent cable management requirements.
MTP-16 is suitable for 16-fiber parallel single-mode optical module applications, such as connections for 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optical modules.


Specifications：

ItemSpecification

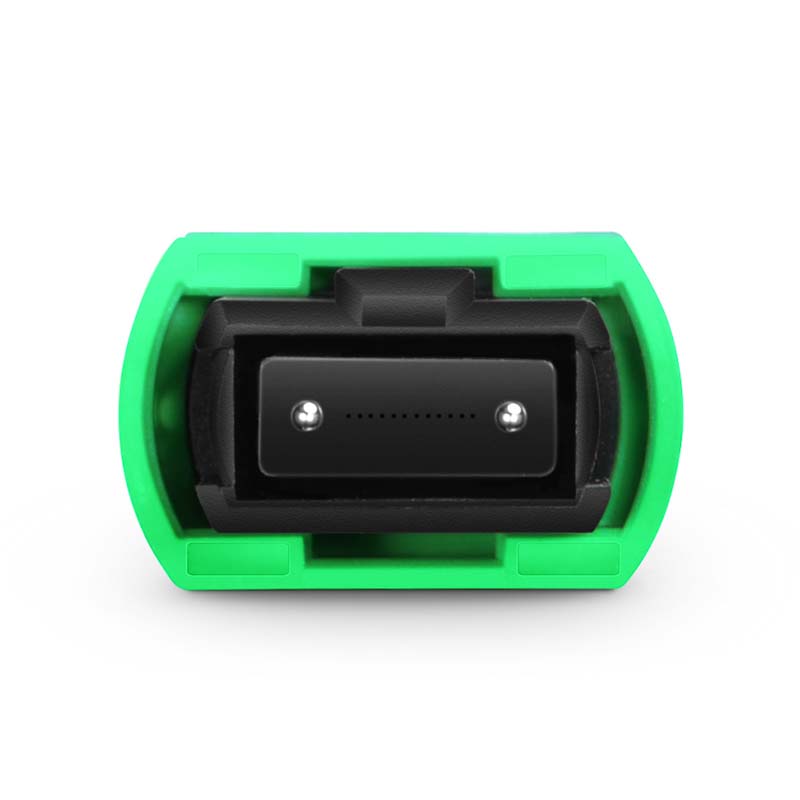

Connector AUS Conec MTP® Female (without guide pins)
Connector BUS Conec MTP® Female (without guide pins)
Polish TypeAPC-APC
FiberCorning SMF-28®
Fiber TypeOS2 9/125µm
Wavelength1310/1550nm
Fiber Count16-Core
RoHS ComplianceCompliant
Cable Outer Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Minimum Bend Radius (Fiber)10mm
Minimum Bend Radius (Patch Cord)10/5D (Dynamic/Static)
Connector Durability500 matings
Tensile Strength (Long/Short Term)80/240N
Insertion Loss≤0.75dB (0.35dB typical)
Return Loss≥60dB
Attenuation @850nm≤0.32dB/km
Attenuation @1300nm≤0.18dB/km
Operating Temperature-10~70°C (14~158°F)
Storage Temperature-40~85°C (-40~185°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
