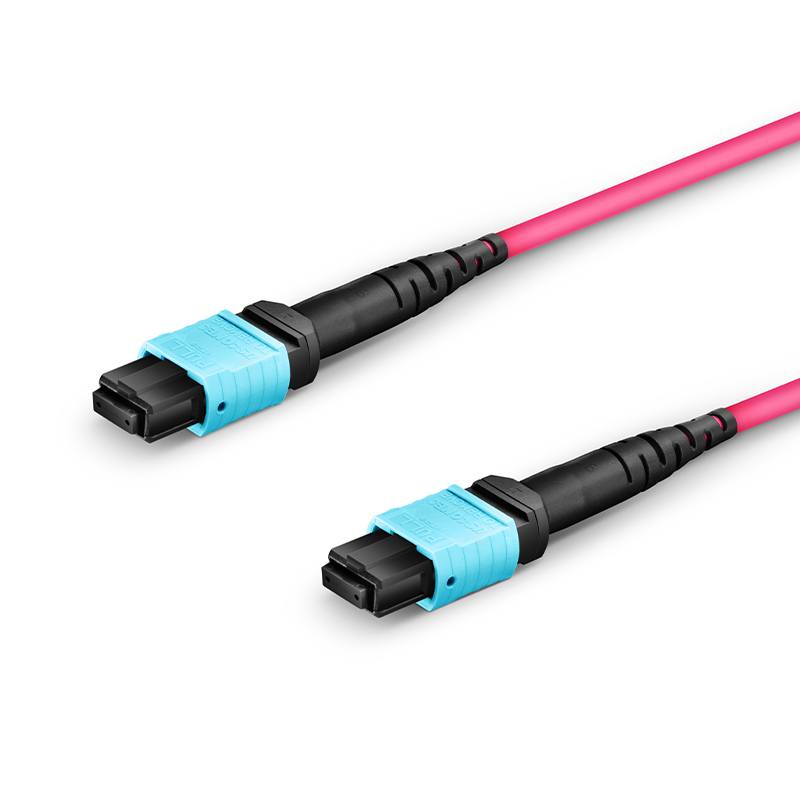

10m (33ft) OM4 24-Core (2x12-Core) MTP®-12 UPC (Female) to MTP®-12 UPC (Female) Multimode Backbone Patch Cord, LSZH, 0.35dB, Polarity A, Braided Mesh Outer Jacket, Magenta
￥1

型号：MTP-12，母-母，OM4

加入购物车

产品特征

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-12 Backbone Patch Cord, Female-Female, UPC, 24-Core, OM4, LSZH, 0.35dB, Polarity A

MTP®-12主干跳线，母-母，UPC，24芯，OM4，LSZH，0.35dB，极性A


MTP® backbone patch cords are equipped with a more robust double-layer jacket, providing superior compression resistance.They are commonly used for long-distance connections between racks or interconnections between different areas within a building.As a cost-effective solution, MTP® fiber patch cords eliminate time-consuming on-site termination, making them ideal for high-density cabling in data centers with limited space and strict cable management requirements.
Since MTP-12 supports MTP-8 fiber systems, it is also highly suitable for 8-fiber parallel multimode optical module applications, such as connections for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optical modules.


Specifications：

ItemSpecification

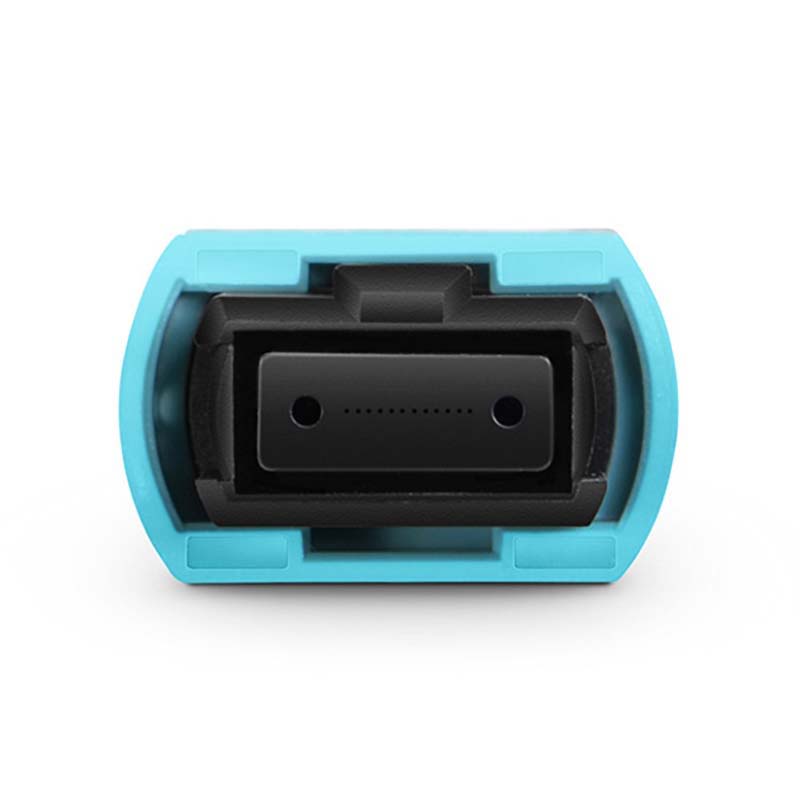

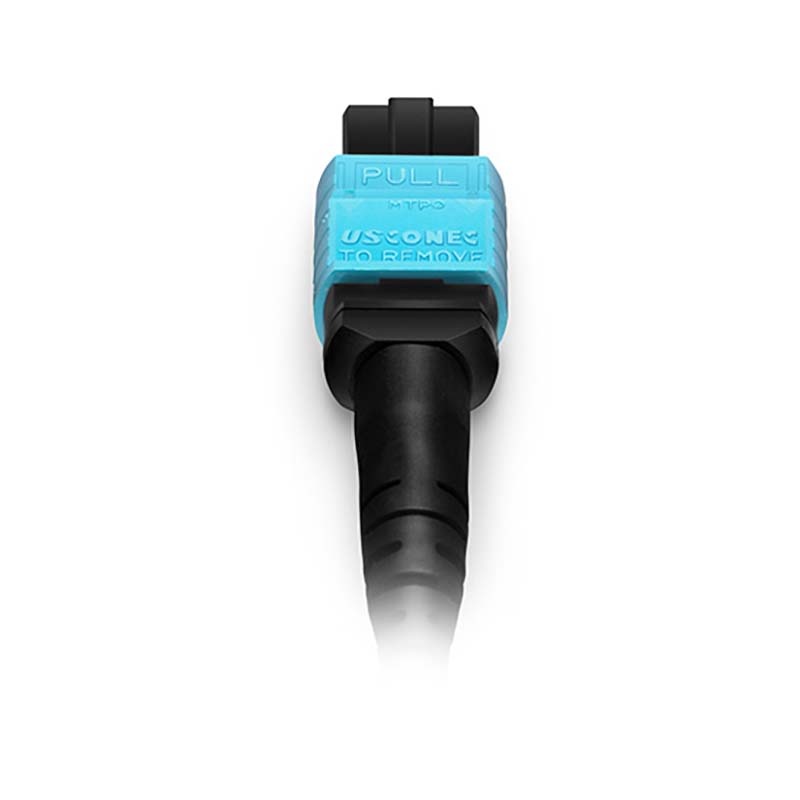

Connector TypeUS Conec MTP® Female (without guide pins)
Polish TypeUPC
Fiber TypeOM4 50/125µm
Wavelength850/1300nm
40/100G Ethernet Transmission Distance150m @ 850nm
10G Ethernet Transmission Distance400m @ 850nm
FiberCorning ClearCurve®
Minimum Bend Radius7.5mm
Fiber Count24-Core
Cable JacketLSZH
Breakout Type0.3m Equal Breakout
PolarityPolarity A
Insertion Loss≤0.35dB (0.15dB typical)
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Installation Tensile Load66N
Tensile Strength (Long-term/Short-term)80N/240N
Operating Temperature-10~+70°C (14~158°F)
Storage Temperature-40~+85°C (-40~185°F)

线缆详情页04+05线缆详情页06

线缆详情页07+08
