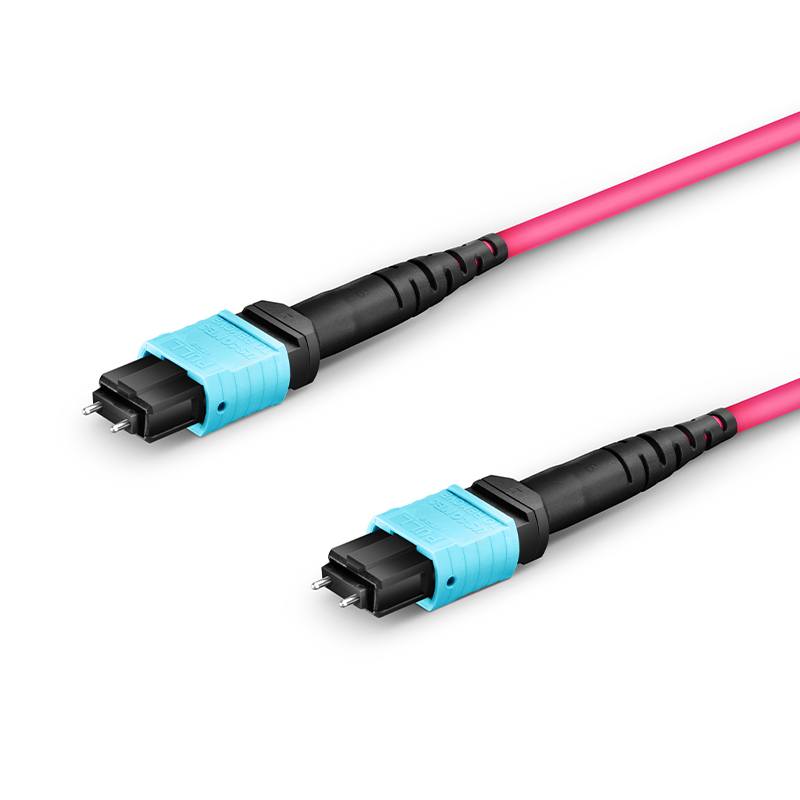

10m (33ft) OM4 48-Core (4x12-Core) MTP®-12 UPC (Male) to MTP®-12 UPC (Male) Multimode Backbone Patch Cord, LSZH, 0.35dB, Polarity B, Braided Mesh Outer Jacket, Magenta
￥3560

型号：MTP®-12，公-公，OM4

加入购物车

产品特征

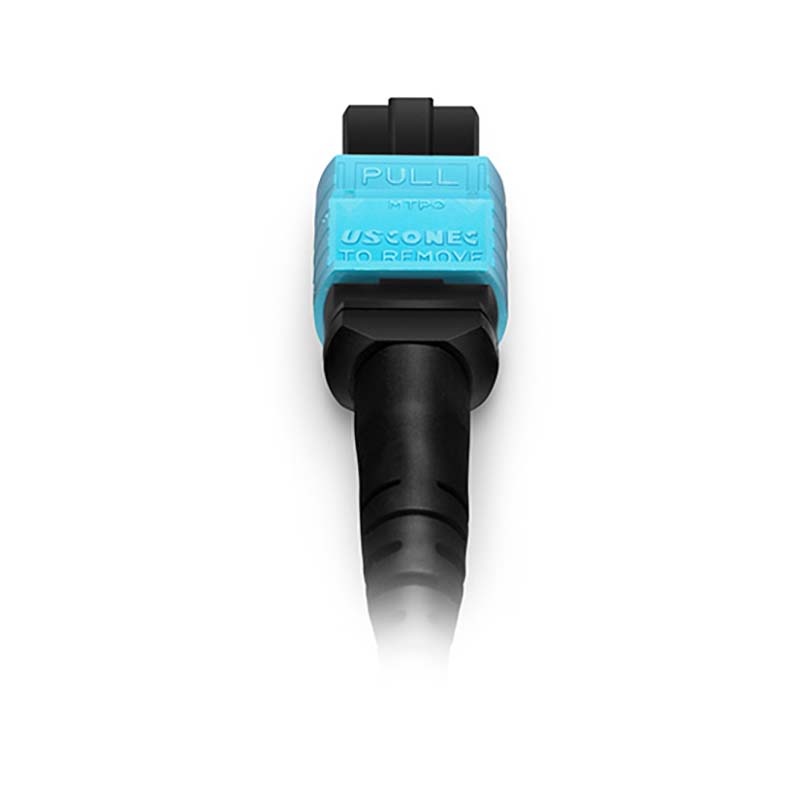

US Conec MTP® connector with low insertion loss of 0.25dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Suitable for plenum spaces

Color-coded connector boots for easy identification

Designed for longer-distance applications between racks

  • 商品详情
  • 资料下载(PDF)

MTP®-12 Backbone Patch Cord, Male-Male, UPC, 48-Core, OM4, LSZH, 0.35dB, Polarity B

MTP®-12主干跳线，公-公，UPC，48芯，OM4，LSZH，0.35dB，极性B


MTP® backbone patch cords are equipped with a more robust double-layer jacket, offering better compression resistance.They are commonly used for long-distance connections between racks or connections between different areas within a building.As a cost-effective alternative, MTP® fiber patch cords eliminate time-consuming on-site termination, making them ideal for high-density cabling in data centers with limited space and strict cable management requirements.
Since MTP-12 supports MTP-8 fiber systems, it is also highly suitable for 8-fiber parallel multimode optical module applications, such as connections for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optical modules.


Specifications：

ItemSpecification

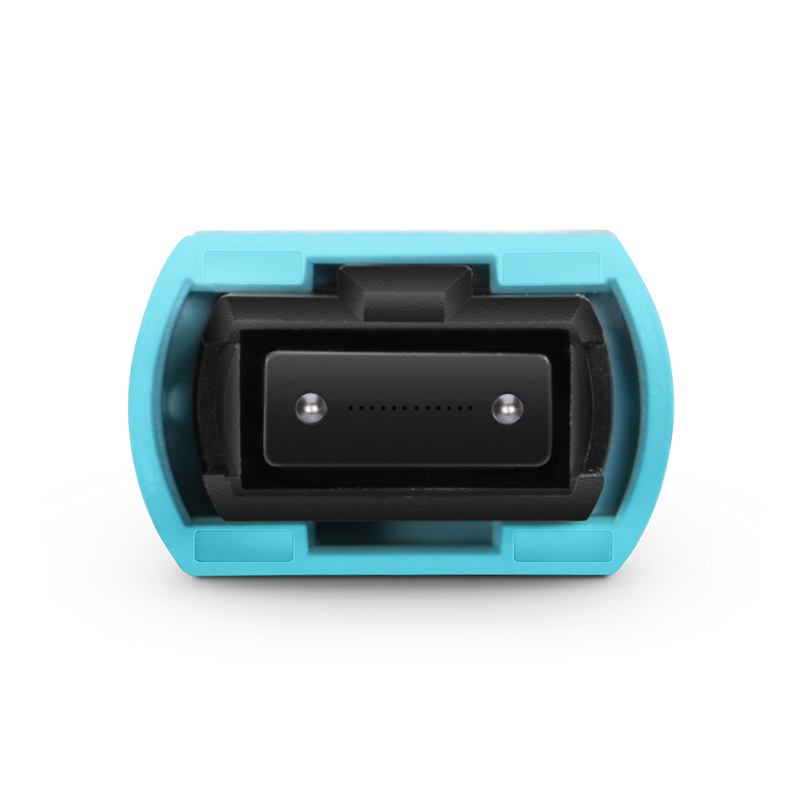

Connector TypeUS Conec MTP® Male (with guide pins)
Polish TypeUPC
Fiber TypeOM4 50/125µm
Wavelength850/1300nm
40/100G Ethernet Transmission Distance150m @ 850nm
10G Ethernet Transmission Distance400m @ 850nm
FiberCorning ClearCurve®
Minimum Bend Radius7.5mm
Fiber Count48-Core
Cable JacketLSZH
Breakout Type0.5m Equal Breakout Cable
PolarityPolarity B
Insertion Loss≤0.35dB (0.15dB typical)
Return Loss≥20dB
Attenuation @850nm≤2.3dB/km
Attenuation @1300nm≤0.6dB/km
Installation Tensile Load66N
Tensile Strength (Long-term/Short-term)80N/240N
Operating Temperature-10~+70°C (14~158°F)
Storage Temperature-40~+85°C (-40~185°F)
