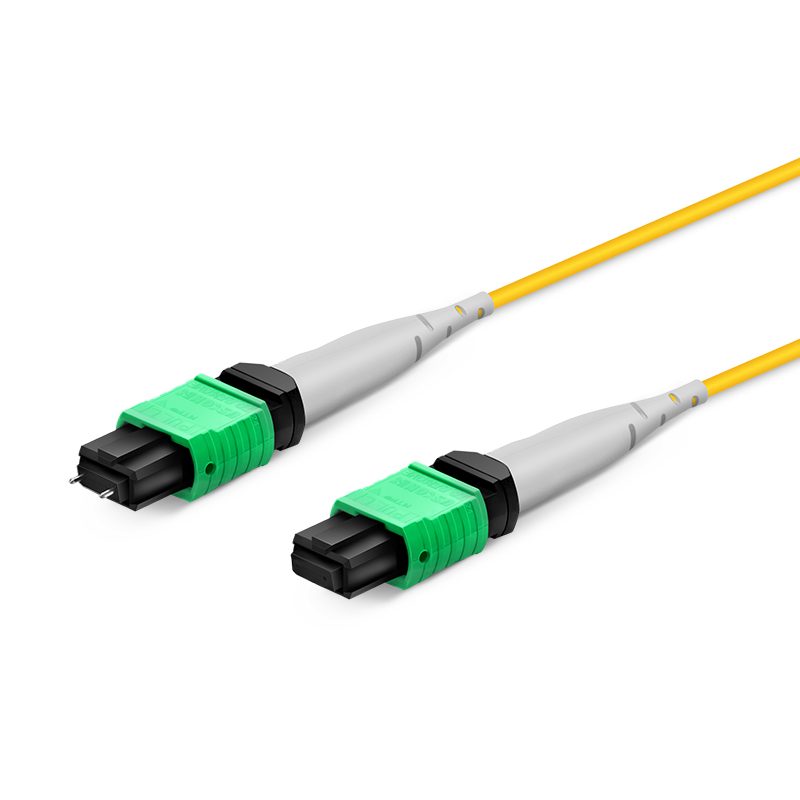

30m (98ft) OS2 8-Core MTP®-8 APC (Male) to MTP®-8 APC (Female) Singlemode Backbone Patch Cord, LSZH, 0.35dB, Polarity A, Double Sheath, Yellow
￥1060

型号：MTP®-8，公-母，OS2

加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for longer-distance applications between racks

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-8 Backbone Patch Cord, Male-Female, APC, 8-Core, OS2, LSZH, 0.35dB, Polarity A

MTP®-8主干跳线，公-母，APC，8芯，OS2，LSZH，0.35dB，极性A


MTP® backbone patch cords are equipped with a more robust double-layer jacket, delivering superior crush resistance.They are commonly used for long‑distance connections between racks or interconnections between different areas within a building.As a cost‑effective alternative, MTP® fiber patch cords eliminate time‑consuming on‑site termination, making them ideal for high‑density fiber cabling in data centers with limited space and strict cable management requirements.
MTP‑8 is designed for 8‑fiber parallel optical module applications, such as connections for 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP‑DD DR4/XDR4 optical modules.


Specifications：

ItemSpecification

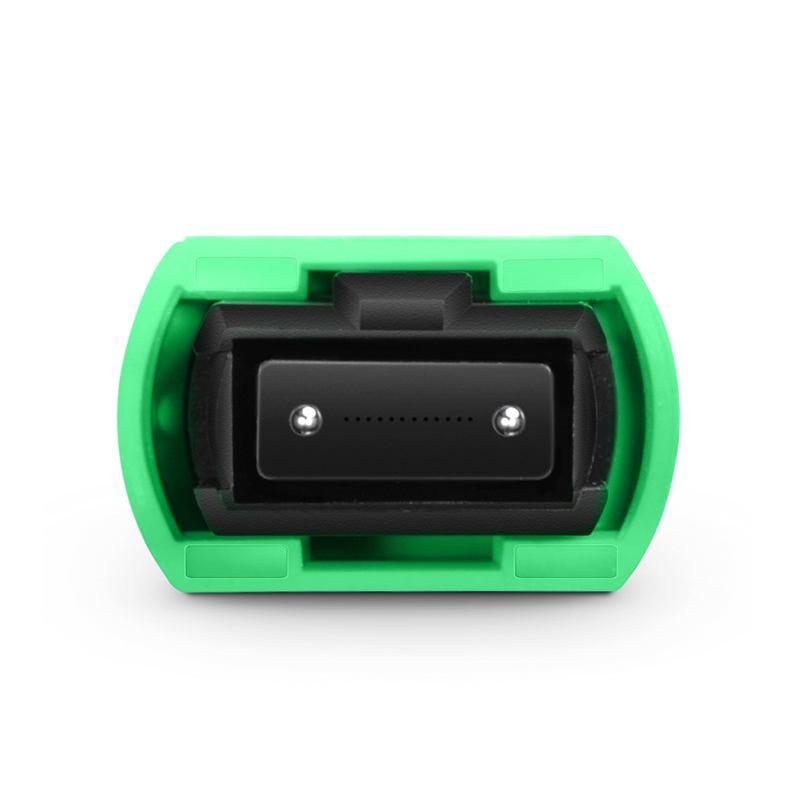

Connector AUS Conec MTP® Male (with guide pins)

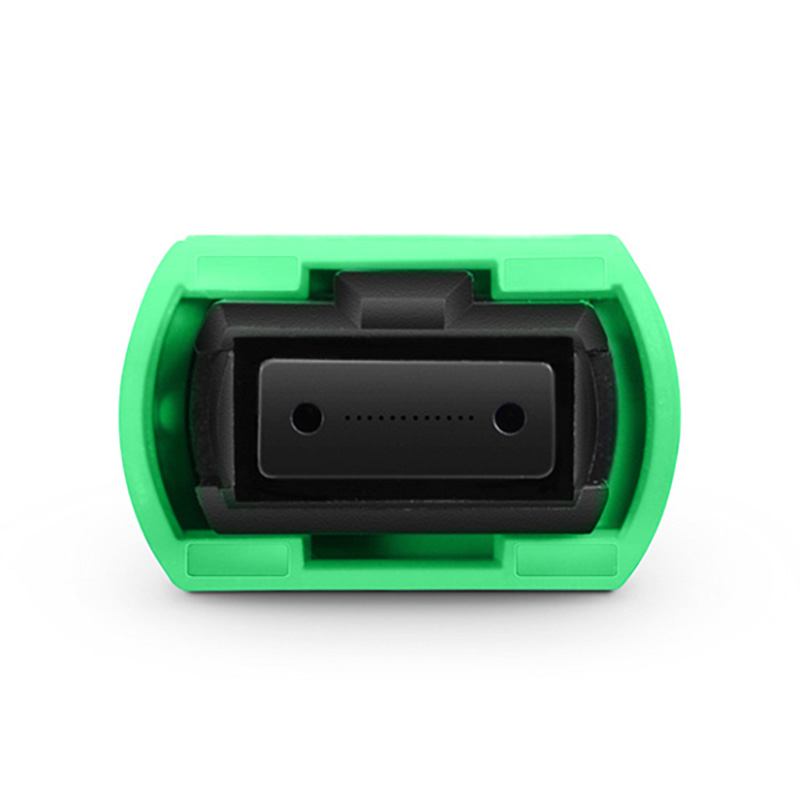

Connector BUS Conec MTP® Female (without guide pins)
Fiber TypeOS2 9/125µm
Wavelength1310/1550nm
FiberCorning SMF-28®
Fiber GradeG.657.A1 (compatible with G.652.D)
Polish TypeAPC-APC
Minimum Bend Radius10mm
Insertion Loss≤0.35dB (0.15dB typical)
Return Loss≥65dB
Attenuation @850nm≤0.4dB/km
Attenuation @1300nm≤0.3dB/km
Cable Outer Diameter (OD)3.6-4.5mm
Breakout Outer Diameter (OD)2.0mm
Cable JacketLSZH
Cable StructureDouble Jacket
Long-term Tensile Load100N
Short-term Tensile Load300N
Operating Temperature0~+60°C (32~140°F)
Storage Temperature-10~+70°C (14~158°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
