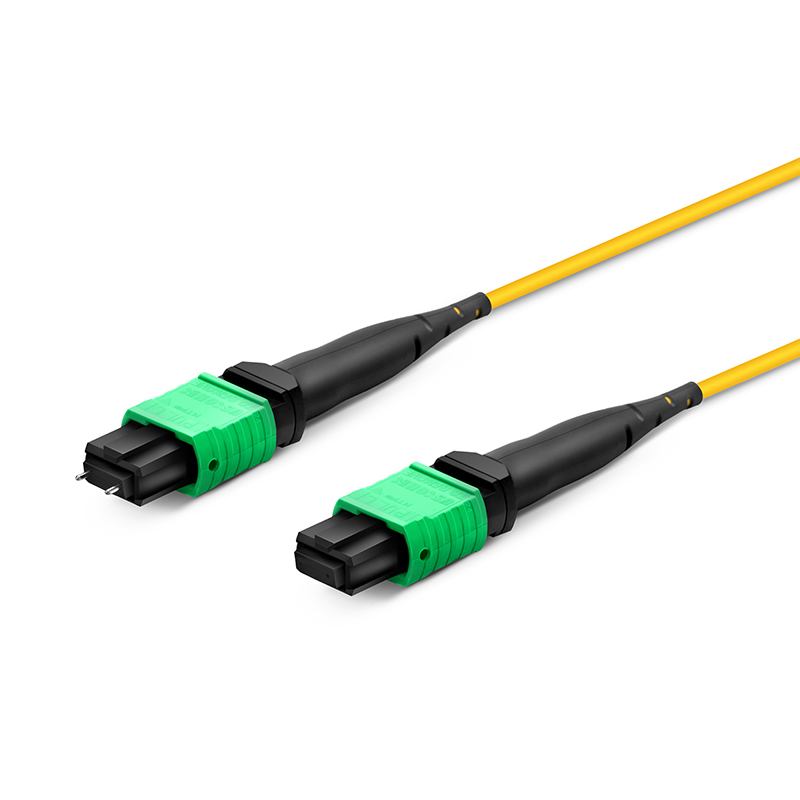

30m (98ft) OS2 12-Core MTP®-12 APC (Male) to MTP®-12 APC (Female) Singlemode Backbone Patch Cord, PVC, 0.35dB, Polarity A, Double Sheath, Yellow
￥1290

型号：MTP®-12，公-母，OS2

加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

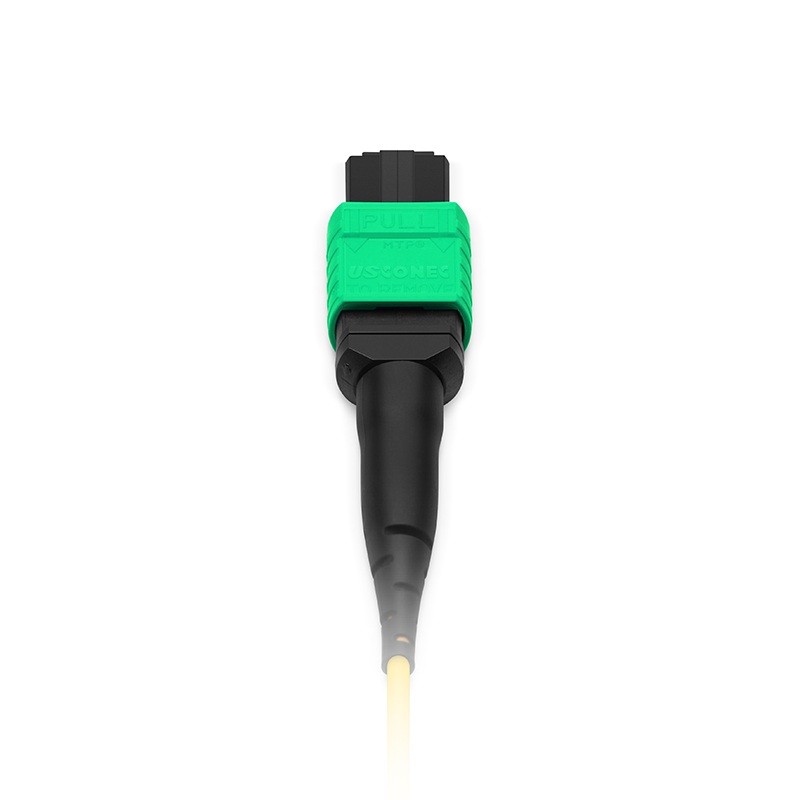

Color-coded connector boots for easy identification

Typically used for longer-distance applications between racks

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-12 Backbone Patch Cord, Male-Female, APC, 12-Core, OS2, LSZH, 0.35dB, Polarity A

MTP®-12主干跳线，公-母，APC，12芯，OS2，LSZH，0.35dB，极性A


MTP® backbone patch cords are equipped with a more robust double-layer jacket, delivering superior compression resistance.They are commonly used for long‑distance connections between racks or for interconnections between different areas within a building.As a cost‑effective alternative, MTP® fiber patch cords eliminate time‑consuming on‑site termination, making them ideal for high‑density fiber cabling in data centers with limited space and strict cable management requirements.
Since MTP‑12 supports MTP‑8 fiber systems, it is also suitable for 8‑fiber parallel optical module applications, such as connections for 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP‑DD DR4/XDR4 optical modules.


Specifications：

ItemSpecification

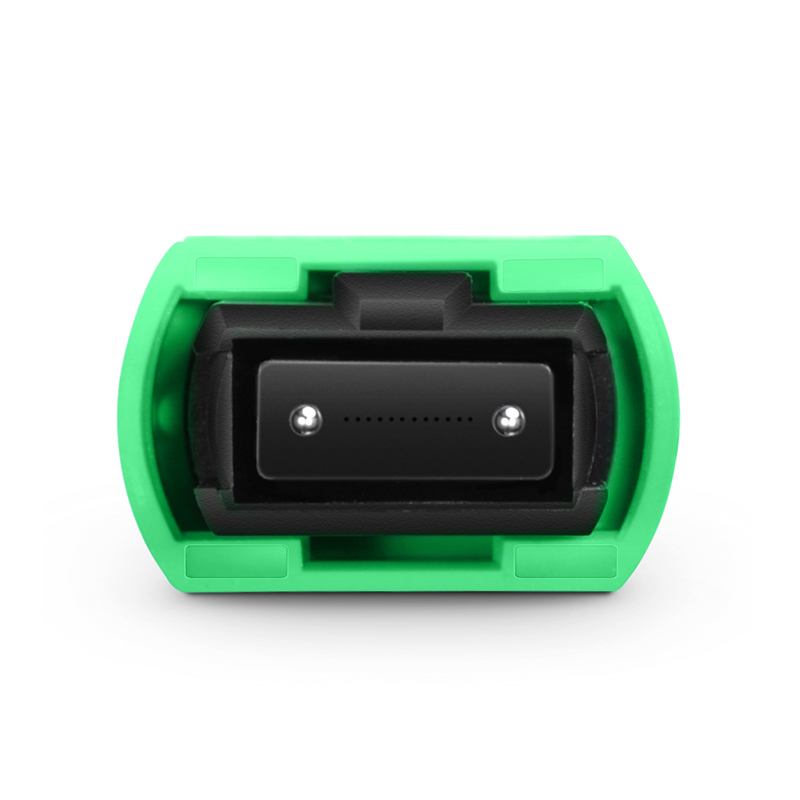

Connector AUS Conec MTP® Male (with guide pins)

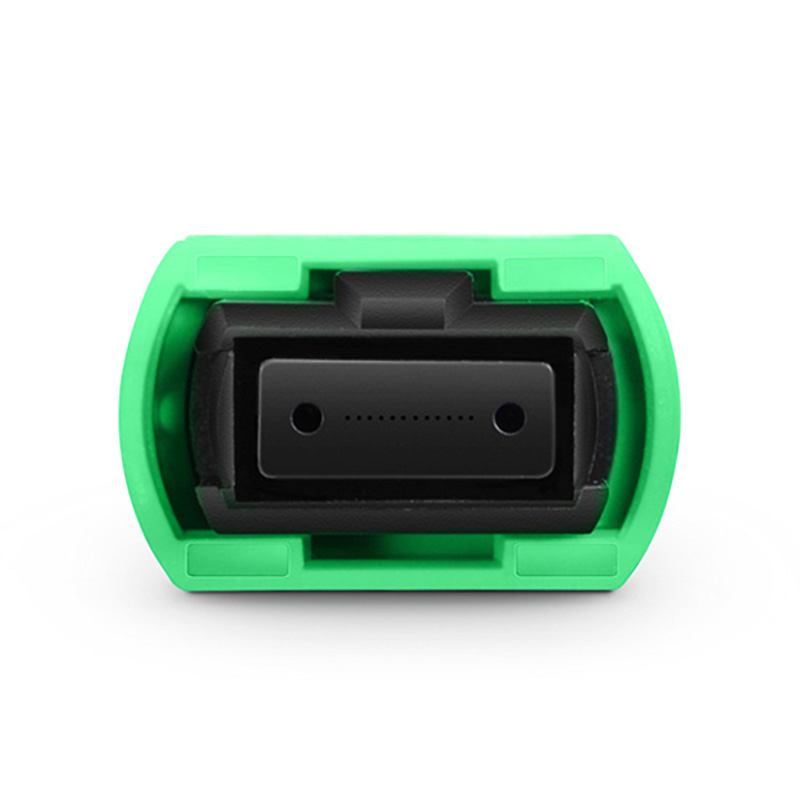

Connector BUS Conec MTP® Female (without guide pins)
Fiber TypeOS2 9/125µm
FiberCorning SMF-28®
Polish TypeAPC-APC
Insertion Loss≤0.35dB (0.15dB typical)
Attenuation @850nm≤0.4dB/km
Cable Outer Diameter (OD)3.6-4.5mm
Cable JacketPlenum (LSZH)
Long-term Tensile Load100N
Operating Temperature0~+60°C (32~140°F)
Wavelength1310/1550nm
Fiber GradeG.657.A1 (compatible with G.652.D)
Minimum Bend Radius10mm
Return Loss≥65dB
Attenuation @1300nm≤0.3dB/km
Breakout Outer Diameter (OD)2.0mm
Cable StructureDouble Sheath
Short-term Tensile Load300N
Storage Temperature-10~+70°C (14~158°F)
