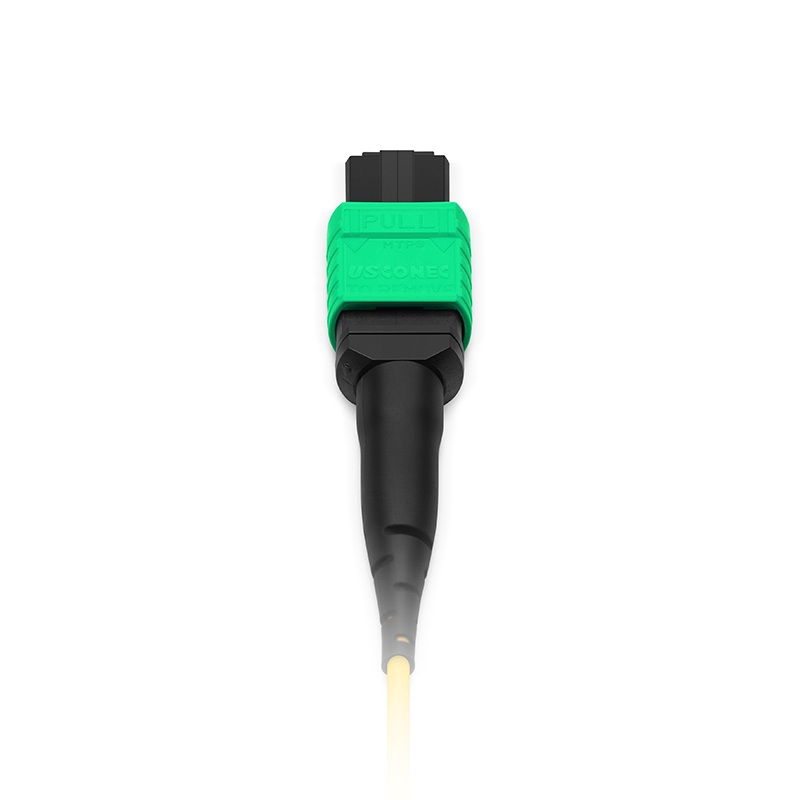

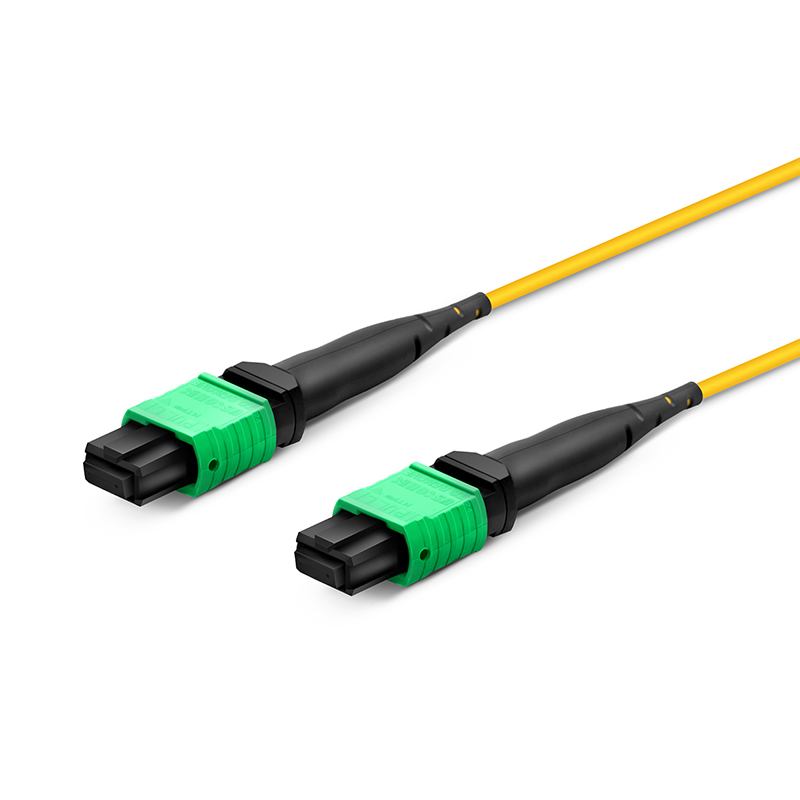

30m (98ft) OS2 12-Core MTP®-12 APC (Female) to MTP®-12 APC (Female) Singlemode Backbone Patch Cord, PVC, 0.35dB, Polarity B, Double Sheath, Yellow
￥1060

型号：MTP®-12，母-母，OS2

加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for longer-distance applications between racks

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-12 Backbone Patch Cord, Female-Female, APC, 12-Core, OS2, LSZH, 0.35dB, Polarity BMTP®-12主干跳线，母-母，APC，12芯，OS2，LSZH，0.35dB，极性B


MTP® backbone patch cords are fitted with a more robust double-layer jacket, offering enhanced compression resistance.They are commonly used for long-distance connections between racks or interconnections between different areas within a building.As a cost-effective solution, MTP® fiber patch cords eliminate time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and strict cable management requirements.
Since MTP-12 supports MTP-8 fiber systems, it is also suitable for 8-fiber parallel optical module applications, such as connections for 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4 and 400G QSFP-DD DR4/XDR4 optical modules.


Specifications：

ItemSpecification

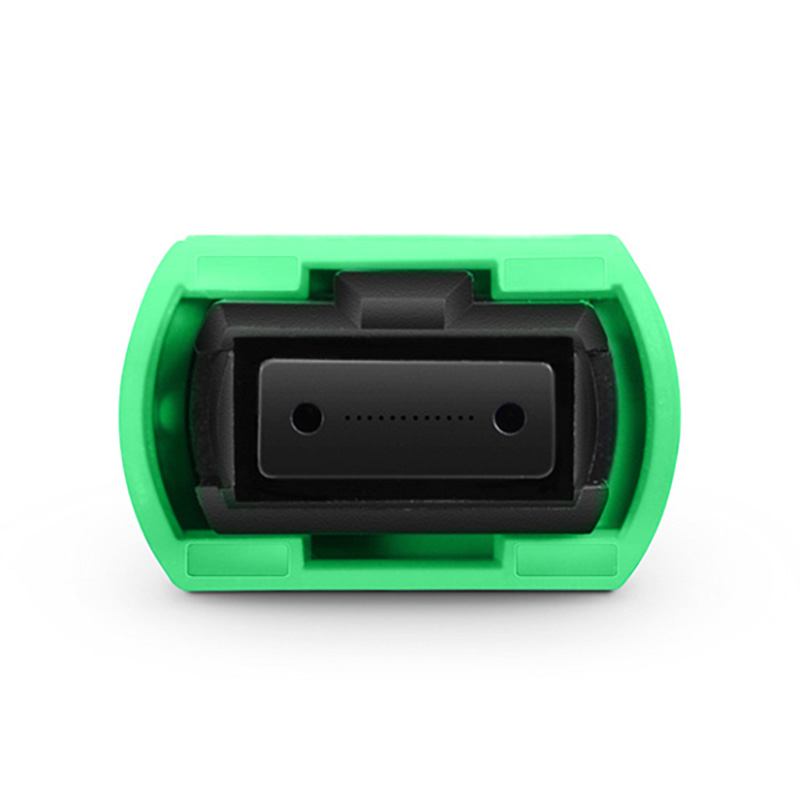

Connector AUS Conec MTP® Female (without guide pins)
Connector BUS Conec MTP® Female (without guide pins)
Fiber TypeOS2 9/125µm
FiberCorning SMF-28®
Polish TypeAPC-APC
Insertion Loss≤0.35dB (0.15dB typical)
Attenuation @850nm≤0.4dB/km
Cable Outer Diameter (OD)3.6-4.5mm
Cable JacketPlenum (LSZH)
Long-term Tensile Load100N
Operating Temperature0~+60°C (32~140°F)
Wavelength1310/1550nm
Fiber GradeG.657.A1 (compatible with G.652.D)
Minimum Bend Radius10mm
Return Loss≥65dB
Attenuation @1300nm≤0.3dB/km
Breakout Outer Diameter (OD)2.0mm
Cable StructureDouble Sheath
Short-term Tensile Load300N
Storage Temperature-10~+70°C (14~158°F)
