30m (98ft) OS2 8-Core MTP®-8 APC (Female) to 4LC UPC Uniboot Singlemode Hybrid Backbone Patch Cord, Duplex, PVC, 0.35dB, Polarity B, Double Sheath, Yellow
￥980

型号：MTP®-8 APC

Length:
30m
颜色:
yellow blue
加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for longer-distance applications between racks

  • 商品详情
  • 资料下载(PDF)

MTP®-8 to LC Uniboot Hybrid Backbone Patch Cord, 8-Core, OS2, LSZH, 0.35dB, Polarity B

MTP®-8芯转LC Uniboot混合主干跳线，8芯，OS2，OFNP，0.35dB，极性B


MTP® backbone patch cords are equipped with a more robust double-layer jacket, delivering superior compression resistance.They are commonly used for long-distance connections between racks or for interconnections between different areas within a building.As a cost-effective alternative, MTP® fiber patch cords eliminate time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and stringent cable management requirements.
MTP-8 is optimized for connections from 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP28 SR4 to 25G SFP-25G-SR-S optical modules, as well as for high-density data center applications.



Specifications：

ItemSpecification

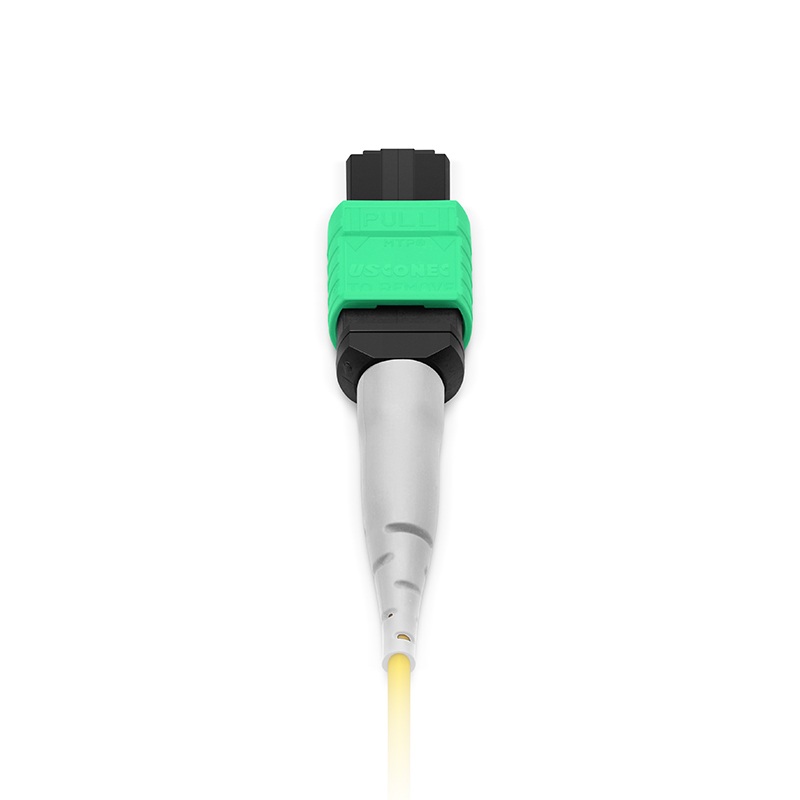

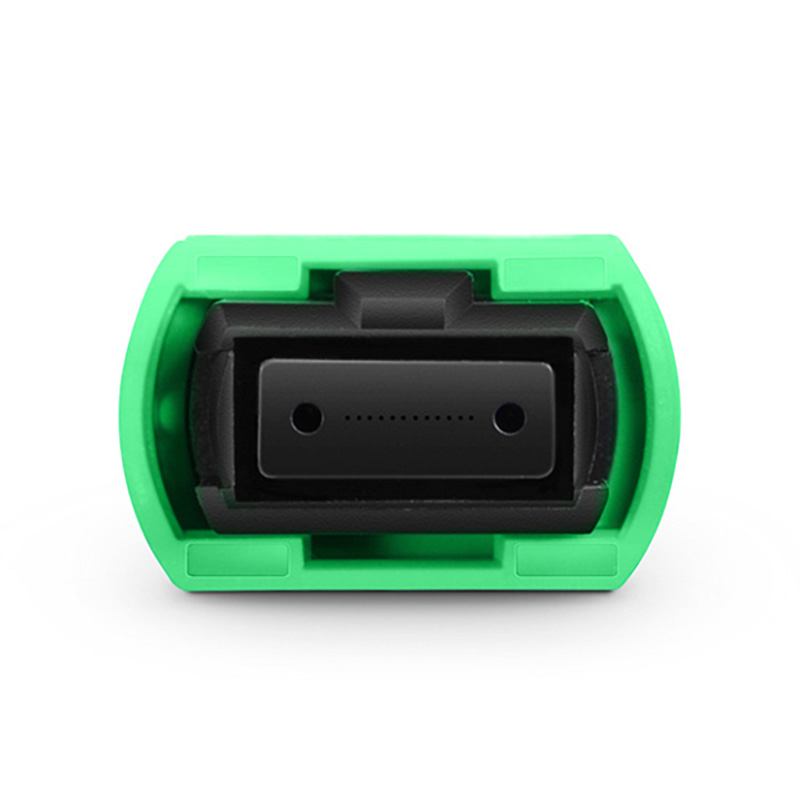

Connector AUS Conec MTP® Female (without guide pins)

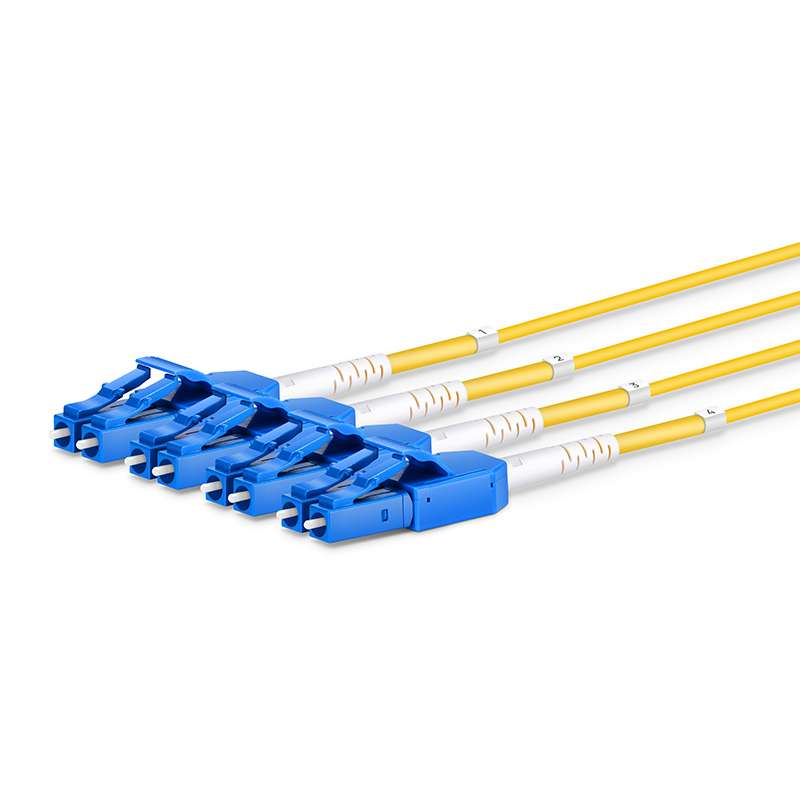

Connector BLC UPC Uniboot (Duplex)
Fiber TypeOS2 9/125µm
FiberCorning SMF-28®
MTP Connector Insertion Loss≤0.35dB
MTP Connector Return Loss≥65dB
Number of MTP Connectors1
Attenuation @850nm≤0.4dB/km
Cable Outer Diameter (OD)3.6-4.5mm
Cable JacketPlenum (LSZH)
Long-term Tensile Load100N
Operating Temperature0~+60°C (32~140°F)
Wavelength1310/1550nm
Fiber GradeG.657.A1 (compatible with G.652.D)
LC Connector Insertion Loss≤0.25dB
LC Connector Return Loss≥55dB
Number of LC Connectors4
Attenuation @1300nm≤0.3dB/km
Breakout Outer Diameter (OD)2.0mm
Fiber Count8-Core
Short-term Tensile Load300N
Storage Temperature-10~+70°C (14~158°F)
