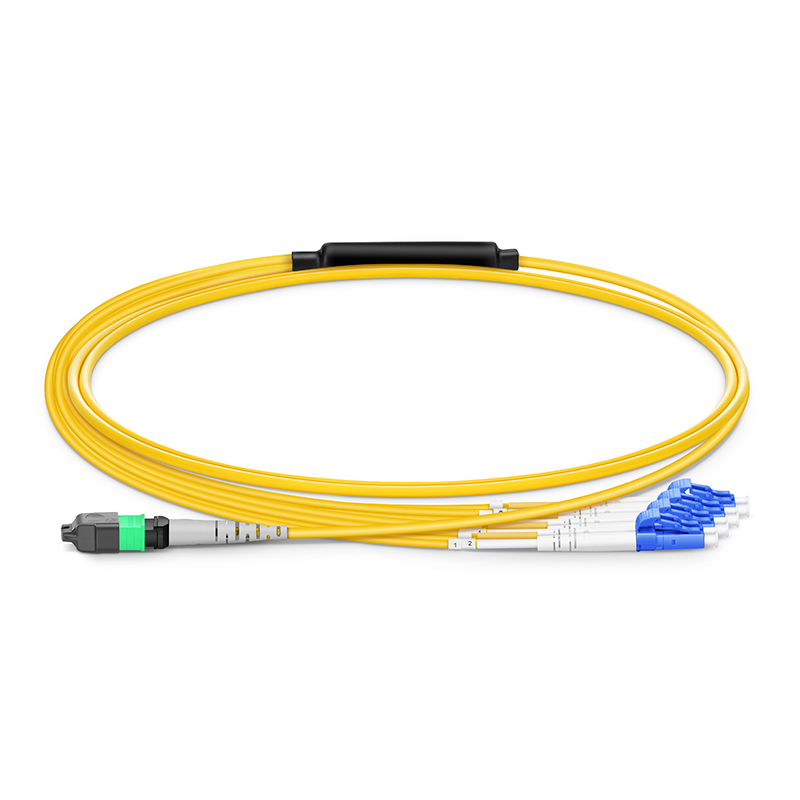

1m (3ft) OS2 8-Fiber MTP®-8 APC Female to 4 LC UPC Singlemode Breakout Patch Cord, Duplex, PVC, 0.35dB, Polarity B, Yellow
￥430

型号：MTP®-8 ，OS2

length:
1m 2m 3m 5m 10m
series:
MTP®-8，OS2 MTP®-16，OS2 MTP®-8，OM4 MTP®-16，OM4
加入购物车

产品特征

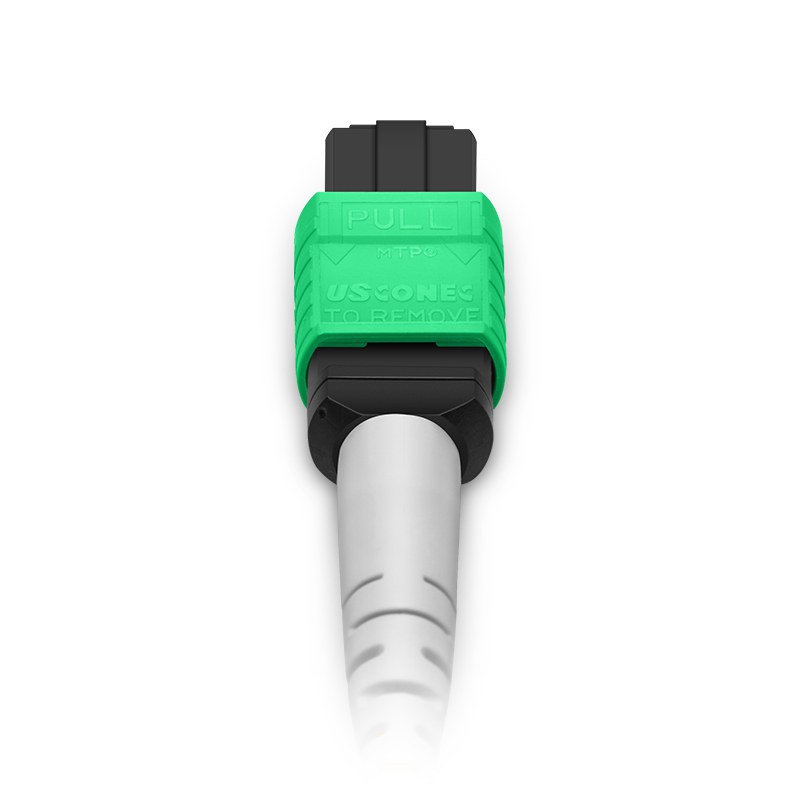

US Conec MTP® Connector with low insertion loss of 0.35dB

Corning SMF-28® Fiber with minimum bending radius of 10mm

Color-coded MTP® connector boots for easy identification

Typically used for intra-cabinet cabling

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-8 Female to LC Breakout Patch Cord, 8-Fiber, OS2, LSZH, 0.35dB, Polarity B

MTP®-8母头转LC分支跳线，8芯，OS2，LSZH，0.35dB，极性B


MTP® breakout patch cords, when used with backbone patch cords, enable seamless migration of multimode data center systems to higher data transmission rates. Primarily designed for intra-cabinet connections, these fiber patch cords serve as a cost-effective alternative that eliminates time-consuming on-site termination. They are ideal for high-density fiber cabling in data centers with limited space and strict cable management requirements.
The MTP®-8 patch cords are optimized for 40G QSFP+ SR4 to 10G SFP+ SR and 100G QSFP SR4 to 25G SFP-25G-SR-S transceiver connections, as well as high-density data center applications.


Specifications：


Parameter
Connector AUS Conec MTP® Female (No Key Pins)

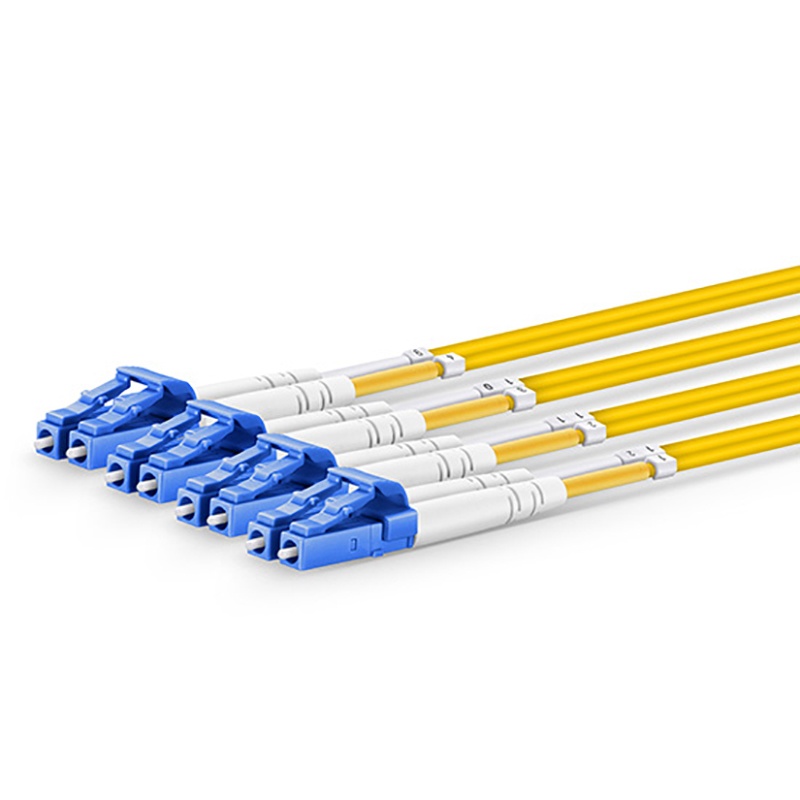

Connector BLC UPC Duplex
Fiber TypeOS2 9/125μm
Wavelength1310/1550nm
FiberCorning SMF-28®
Fiber GradeG.657.A1 (Compatible with G.652.D)
MTP Connector Insertion Loss≤0.35dB (0.15dB typical)
LC Connector Insertion Loss≤0.2dB
MTP Connector Return Loss≥60dB
LC Connector Return Loss≥50dB
Attenuation @1310nm≤0.32dB/km
Attenuation @1550nm≤0.18dB/km
Cable JacketPlenum (OFNP)
Fiber Count8-Fiber
Cable Outer Diameter (OD)3.0mm

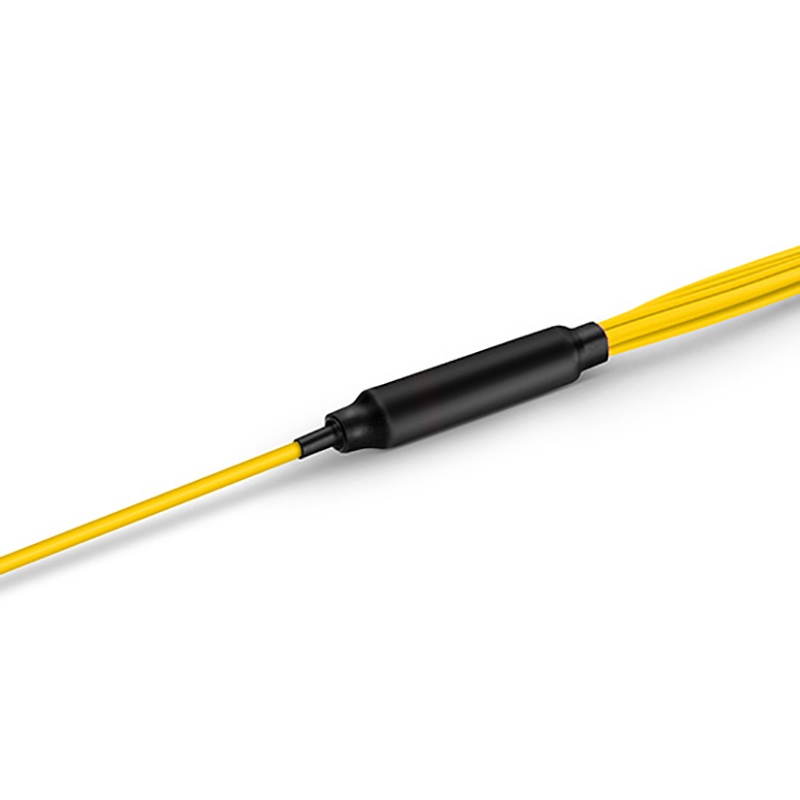

Breakout Outer Diameter (OD)2.0mm
Installation Tensile Load66N
Tensile Strength (Long Term/Short Term)80/240N
Storage Temperature-40~+85°C (-40~185°F)
Operating Temperature-10~+70°C (14~158°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
