1m (3ft) OS2 16-Core MTP®-16 APC (Female) to 8 LC UPC Singlemode Breakout Patch Cord, Duplex, PVC, 0.75dB, Yellow
￥1140

型号：MTP®-16，OS2

length:
1m 2m 3m 5m
series:
MTP®-16，OS2 MTP®-8，OS2 MTP®-8，OM4 MTP®-16，OM4
加入购物车

产品特征

US Conec MTP® connector with a standard insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Color-coded connector boots for easy identification

Typically used for intra-cabinet cabling

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-16 Female to LC Breakout Patch Cord, 16 Fibers, OS2, LSZH, 0.75dB

MTP®-16母头转LC分支跳线，16芯，OS2，LSZH，0.75dB


When used with MTP backbone patch cords, MTP breakout patch cords enable seamless migration of multi-mode data center systems when upgrading data transmission rates. Primarily used for intra-cabinet connections, these fiber patch cords serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and stringent cable management requirements.
The MTP-16 is optimized for connecting 800G OSFP XDR8 to 100G QSFP28 FR, 800G QSFP-DD/OSFP DR8 to 100G QSFP28 DR optical transceivers, as well as for high-density data center applications.


Specifications：

Parameter

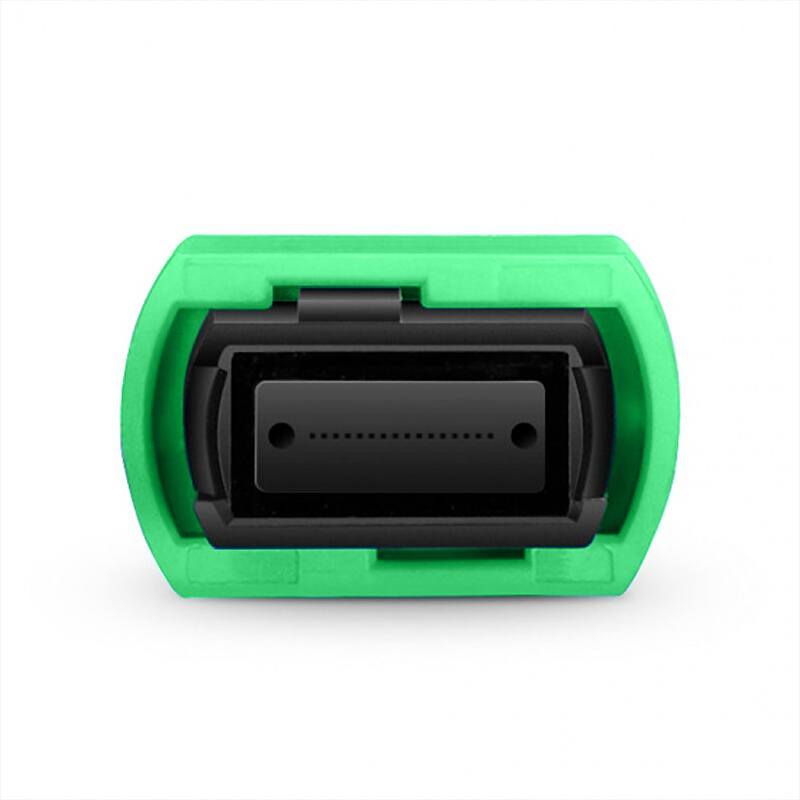

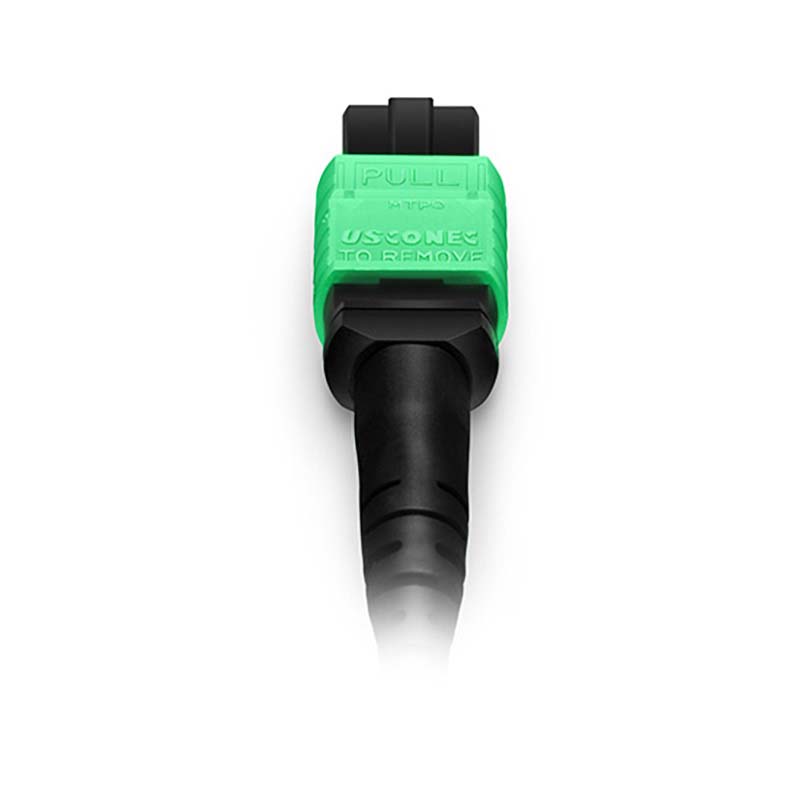

Connector AUS Conec MTP® Female (No Key Pins)
Connector BLC UPC Duplex
Fiber TypeOS2 9/125μm
FiberCorning SMF-28®
Fiber GradeG.657.A1 (Compatible with G.652.D)
Wavelength1310/1550nm
Fiber Count16 Fibers
MTP Connector Insertion Loss≤0.75dB (0.35dB typical)
MTP Connector Return Loss≥60dB
LC Connector Insertion Loss≤0.2dB
LC Connector Return Loss≥50dB
Attenuation @1310nm≤0.32dB/km
Attenuation @1550nm≤0.18dB/km
Cable JacketLSZH
Cable Outer Diameter (OD)3.0mm
Breakout Cable Outer Diameter (OD)2.0mm
Installation Tensile Load66N
Tensile Strength (Long/Short Term)80/240N
Storage Temperature-40~+85°C (-40~185°F)
Operating Temperature-10~+70°C (14~158°F)
