1m (3ft) OM4 8-Core MTP®-8 UPC (Female) to 4 LC UPC Multimode Breakout Patch Cord, Duplex, PVC, 0.35dB, Polarity B, Magenta
￥330

型号：MTP®-8，OM4

Length:
1m 2m 3m 5m 10m
Series:
MTP®-8，OM4 MTP®-16，OM4 MTP®-8，OS2 MTP®-16，OS2
加入购物车

产品特征

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

MTP®-8 Female to LC Breakout Cable, 8 Fibers, OM4, LSZH, 0.35dB, Polarity B

MTP®-8母头转LC分支跳线，8芯，OM4，LSZH，0.35dB，极性B


MTP breakout cables, when used with backbone cables, enable seamless migration of multi-mode systems to higher data transmission rates in data centers. Primarily used for intra-cabinet connections, these fiber patch cords serve as a cost-effective alternative that eliminates time-consuming on-site termination. They are ideal for high-density fiber cabling in space-constrained data centers with stringent cable management requirements.
Optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optical module connections, as well as high-density data center applications.


Specifications：

ParameterEnglish Specification

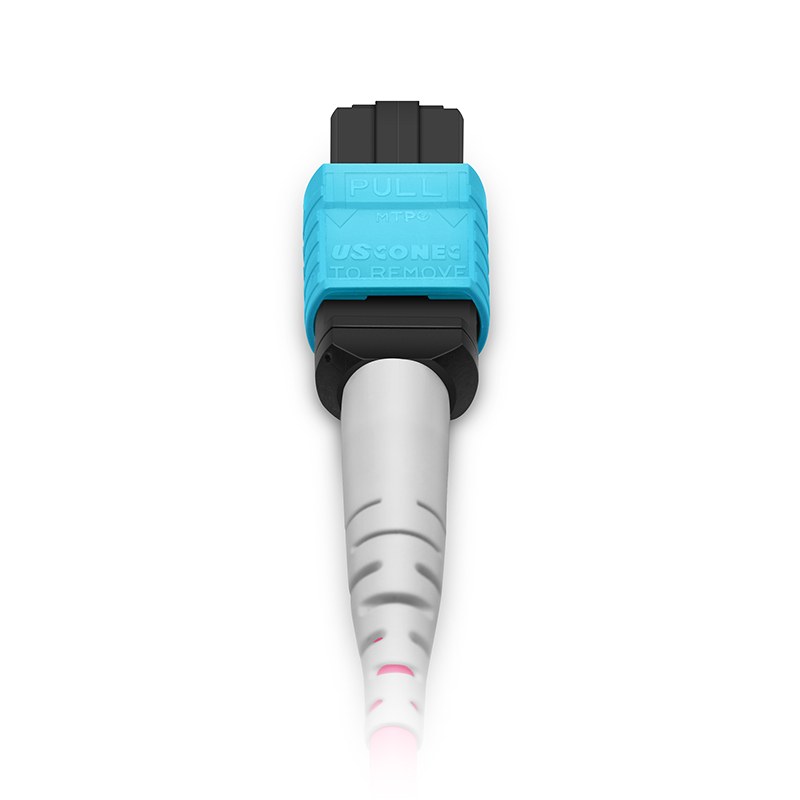

Connector AUS Conec MTP® Female (No Key Pin)

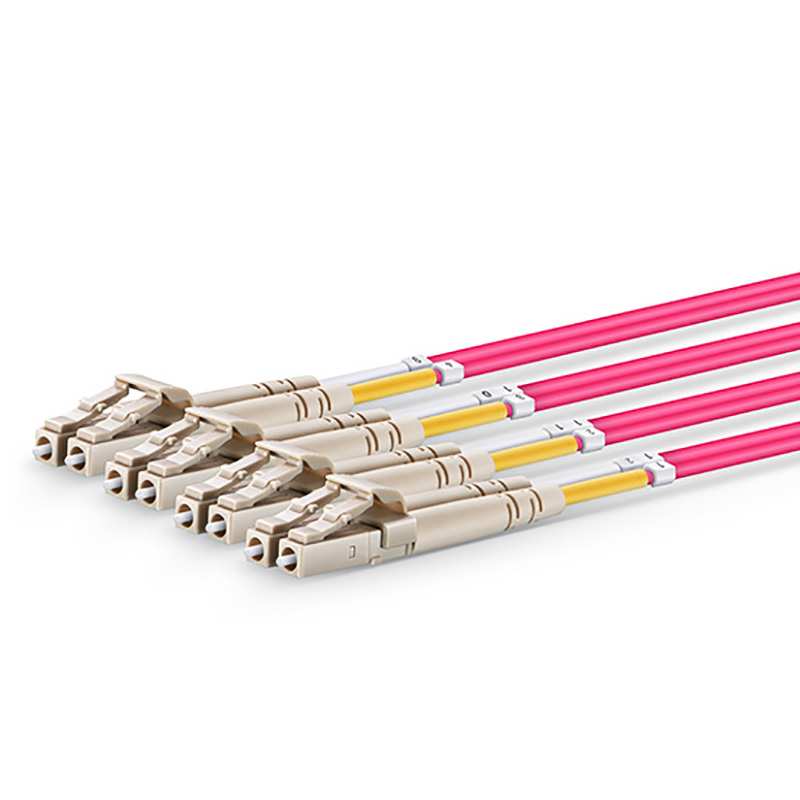

Connector BLC UPC Duplex
Fiber TypeOM4 50/125µm
Wavelength850/1300nm
40/100G Ethernet Transmission Distance150m @ 850nm
10G Ethernet Transmission Distance400m @ 850nm
FiberCorning ClearCurve®
RoHS ComplianceCompliant
MTP Connector Insertion Loss≤0.35dB (0.15dB Typical)
LC Connector Insertion Loss≤0.2dB
MTP Connector Return Loss≥20dB
LC Connector Return Loss≥30dB
Attenuation @1310nm≤2.3dB/km
Attenuation @1550nm≤0.6dB/km
Cable JacketLSZH
Fiber Count8 Fibers
Cable Outer Diameter (OD)3.0mm
Breakout Outer Diameter (OD)2.0mm
Installation Tensile Load66N
Tensile Strength (Long/Short Term)80/240N
Storage Temperature-40~+85°C (-40~185°F)
Operating Temperature-10~+70°C (14~158°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
