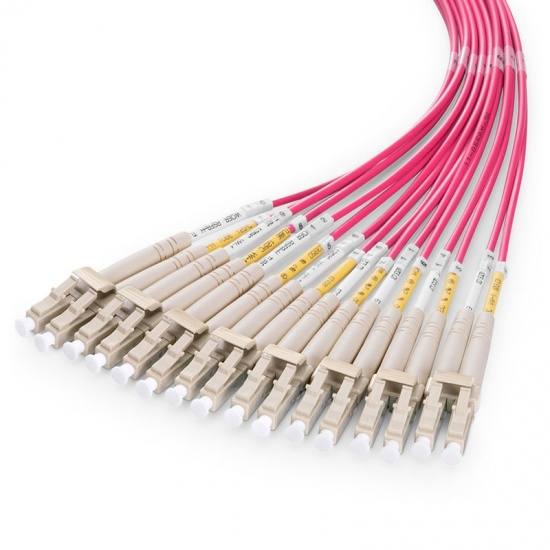

1m (3ft) OM4 16-Core MTP®-16 APC (Female) to 8 LC UPC Uniboot Push-Pull Tab Multimode Breakout Patch Cord, Duplex, PVC, 0.35dB, Magenta
￥830

型号：MTP®-16，OM4

Length:
1m 2m 3m 5m 10m
Series:
MTP®-16，OM4 MTP®-8，OM4 MTP®-8，OS2 MTP®-16，OS2
加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning ClearCurve® fiber with a minimum bend radius of 7.5mm

Color-coded MTP® connector boots for easy identification

Typically used for intra-rack cabling

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

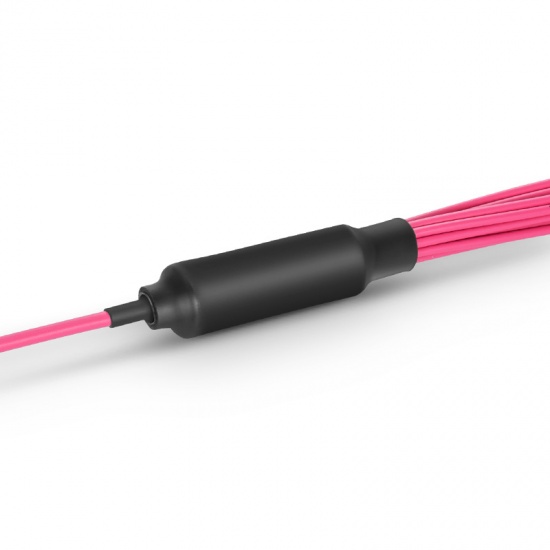

MTP®-16 Female to LC Breakout Patch Cord, 16-Core, OM4, LSZH, 0.35dB

MTP®-16母头转LC分支跳线，16芯，OM4，LSZH，0.35dB


MTP® breakout patch cords, when used with backbone patch cords, enable seamless migration of data center multimode systems to higher data transmission rates. Primarily used for intra‑rack connections, these fiber patch cords serve as a cost‑effective alternative that eliminates time‑consuming on‑site termination, making them ideal for high‑density fiber cabling in data centers with limited space and stringent cable management requirements.
The MTP‑16 is optimized for connecting 400G QSFP‑DD SR8 to 50G SR optical modules and for high‑density data center applications.


Specifications：

ItemSpecification

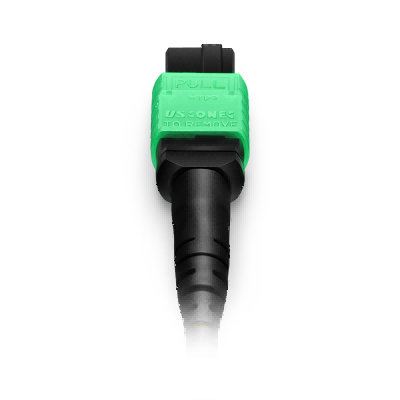

Connector AUS Conec MTP® Female (without guide pins)
Connector BLC UPC Duplex
Fiber TypeOM4 50/125µm
Wavelength850/1300nm
40/100G Ethernet Transmission Distance100m @ 850nm
FiberCorning ClearCurve®
MTP Connector Insertion Loss≤0.35dB (0.15dB typical)
LC Connector Insertion Loss≤0.2dB
MTP Connector Return Loss≥20dB
LC Connector Return Loss≥30dB
Attenuation @1310nm≤2.3dB/km
Attenuation @1550nm≤0.6dB/km
Cable JacketLSZH
Fiber Count16-Core
Cable Outer Diameter (OD)3.0mm
Breakout Outer Diameter (OD)2.0mm
Installation Tensile Load66N
Tensile Strength (Long-term/Short-term)80N/240N
Storage Temperature-40~+85°C (-40~185°F)
Operating Temperature-10~+70°C (14~158°F)
线缆详情页04+05

线缆详情页06

线缆详情页07+08
