1m (3ft) OS2 8-Core MTP®-8 APC (Female) to 4 MDC UPC Singlemode Breakout Patch Cord, Duplex, PVC, 0.35dB, Polarity B, Yellow
￥1140

型号：MTP®-8，OS2

Length:
1m 2m 3m
加入购物车

产品特征

US Conec MTP® connector with low insertion loss of 0.35dB

Corning SMF-28® fiber with a minimum bend radius of 10mm

Fiber cabling density is 3 times that of LC connectors

Tool-free A/B polarity reversal, simple and secure

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

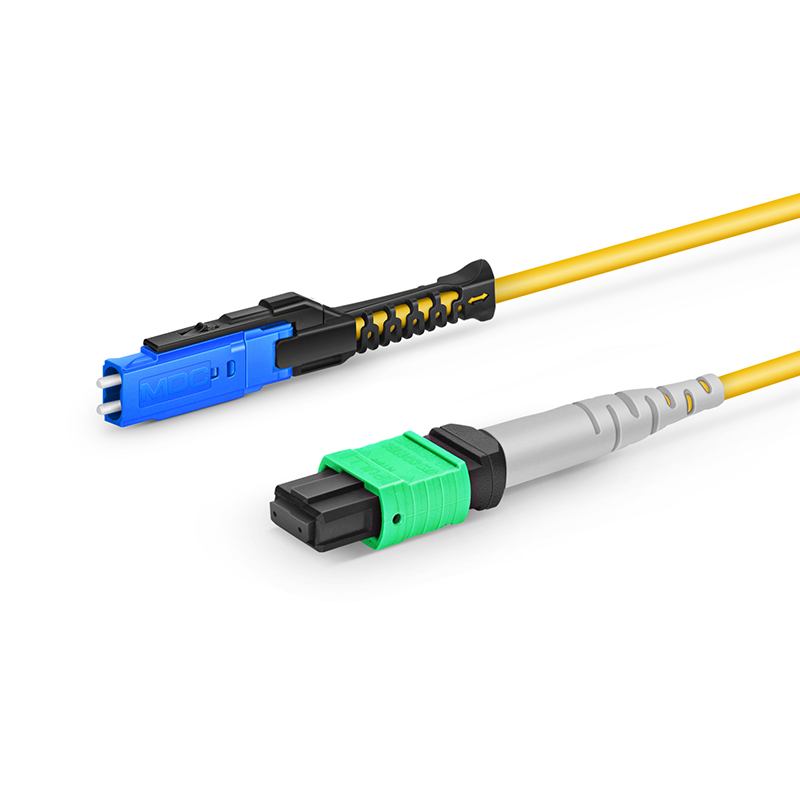

MTP®-8 Female to MDC Breakout Patch Cord, 8-Core, OS2, OFNP, 0.35dB, Polarity B

MTP®-8母头转MDC分支跳线，8芯，OS2，OFNP，0.35dB，极性B


MTP® breakout patch cords, when used with backbone patch cords, enable seamless migration of data center multimode systems to higher data transmission rates. Primarily designed for intra-rack connections, these fiber patch cords serve as a cost-effective alternative that eliminates time-consuming on-site termination, making them ideal for high-density fiber cabling in data centers with limited space and stringent cable management requirements.

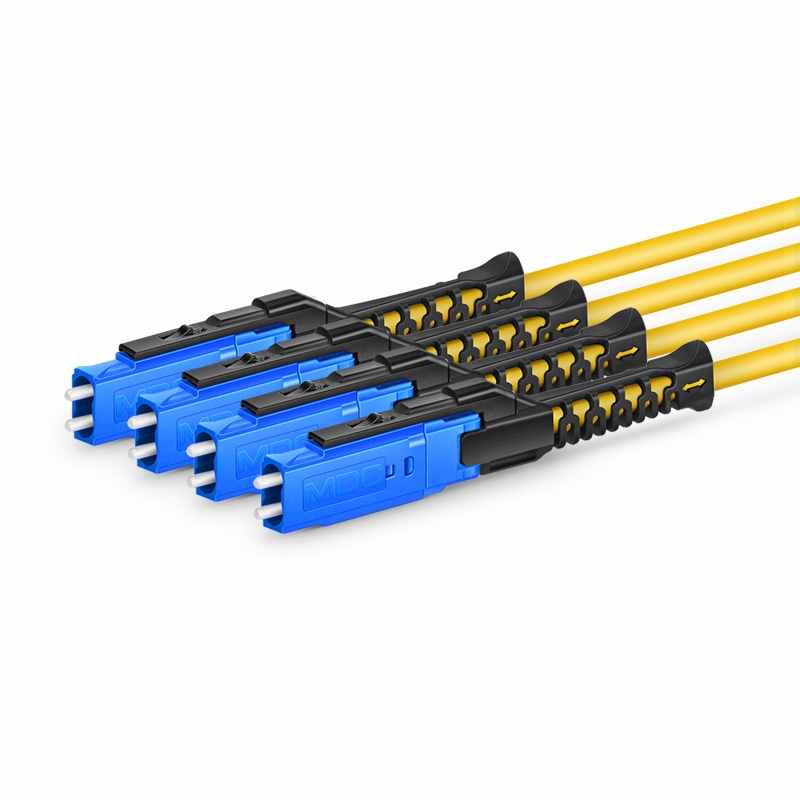

The US Conec ELiMENT® MDC connector is a very small form factor (VSFF) duplex fiber connector engineered for terminating multimode and singlemode fiber patch cords with diameters up to 2.0mm. It is manufactured using the proven 1.25mm ferrule technology found in industry-standard LC optical connectors. DirectConec™ push-pull guidance technology allows easy access to individual connectors in dense environments. With an MTP® to MDC breakout patch cord, a QSFP-DD, QSFP28, or QSFP+ fiber patch cord can be connected to an MDC panel or patch box.


Specifications：

ItemSpecification
Connector AUS Conec MTP® Female (without guide pins)
Connector BUS Conec MDC UPC
Fiber TypeOS2 9/125µm
Wavelength1310/1550nm
FiberCorning SMF-28®
Fiber GradeG.657.A1 (compatible with G.652.D)
MTP Connector Insertion Loss≤0.35dB (0.15dB typical)
LC Connector Insertion Loss≤0.3dB
MTP Connector Return Loss≥60dB
LC Connector Return Loss≥50dB
Cable JacketLSZH
Fiber Count8-Core
Cable Outer Diameter (OD)3.0mm
Breakout Outer Diameter (OD)2.0mm
Installation Tensile Load66N
Tensile Strength (Long-term/Short-term)80N/240N
Storage Temperature-40~+85°C (-40~185°F)
Operating Temperature-40~+85°C (-40~185°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
