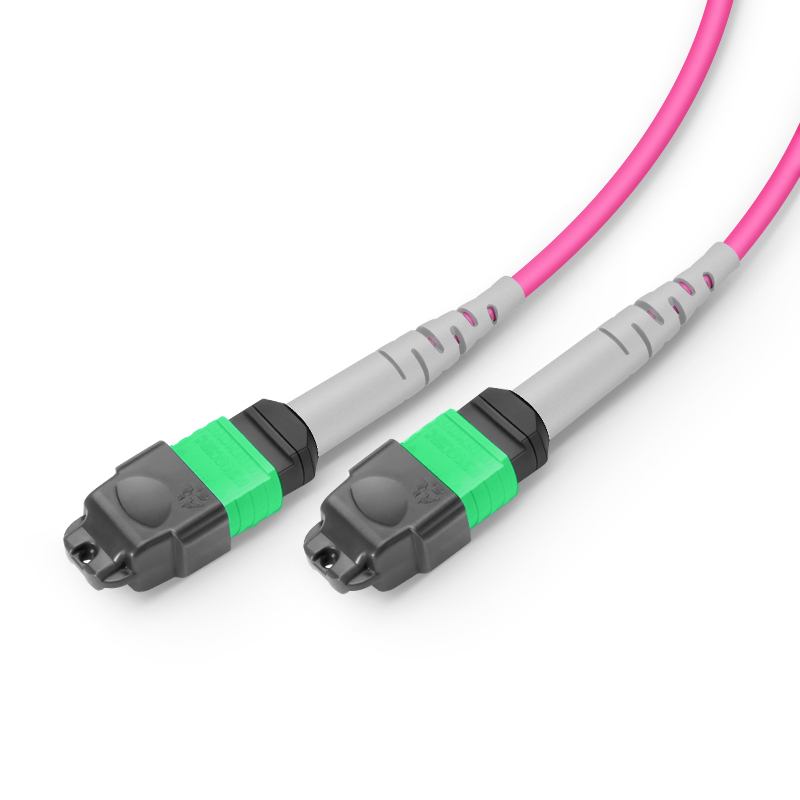

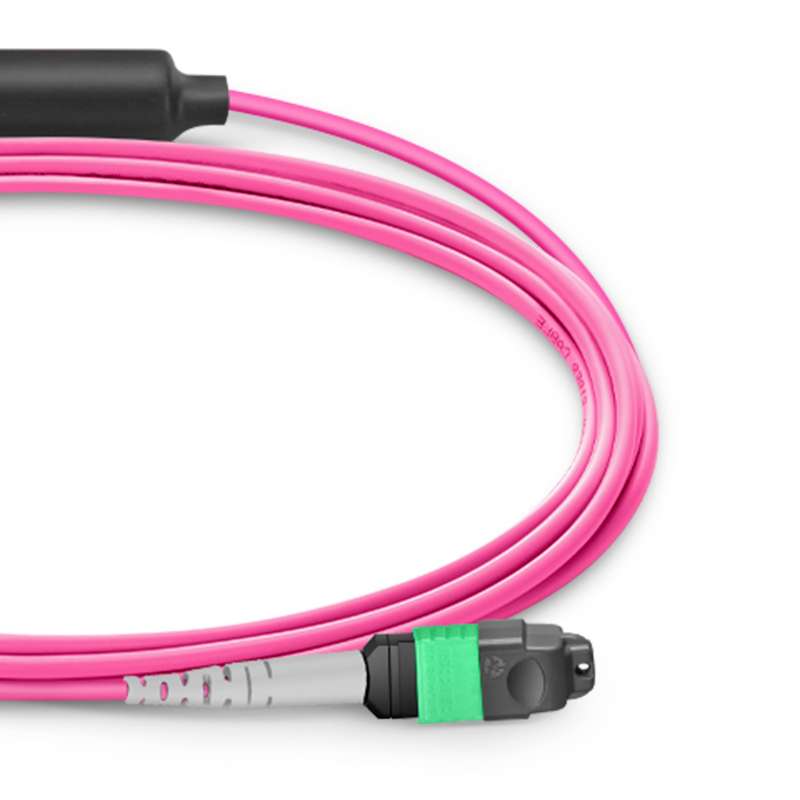

1m (3ft) OM4 12-core MTP®-12 APC (female) to 2x MTP®-4 APC (female) multimode conversion patch cord, PVC, 0.35dB, polarity B, magenta

￥680

型号：MTP®-12 to 2×MTP®-4, OM4

Length:

1m 2m 3m 5m 10m

加入购物车

产品特征

US Conec MTP® connector with 0.35dB low insertion loss

Corning ClearCurve® Fiber Optic, minimum bend radius 7.5mm

Color-coded connector housing for easy identification

Convert 12 fiber connections into 4 fiber connections to achieve full utilization of the fibers

商品详情
资料下载(PDF)

MTP® Conversion Patch Cord, MTP®-12 (Female) APC to 2xMTP®-4 (Female) APC, 12 Fibers, OM4, LSZH, Polarity B

MTP conversion patch cords are designed to provide greater flexibility for MTP®-based cabling systems. Unlike MTP breakout patch cords, MTP conversion patch cords are terminated with MTP® connectors on both ends, offering more possibilities for existing 8-fiber cabling systems.

In the MTP-12 APC to 2xMTP-4 APC conversion patch cord, the MTP-12 connector only uses 8 active fibers of the MTP®-12 for transmission, with the remaining 4 unused.

The MTP-4 connector only uses 4 active fibers of the MTP-12 for transmission, with the remaining 8 unused. It is designed to connect 4 200G NVIDIA InfiniBand OSFP/QSFP56/QSFP112 optical modules to an 800G NVIDIA InfiniBand dual-port OSFP optical module. Compared to purchasing and installing conversion boxes separately, using MTP conversion patch cords is a more cost-effective and lower-loss option.

Specification Parameters

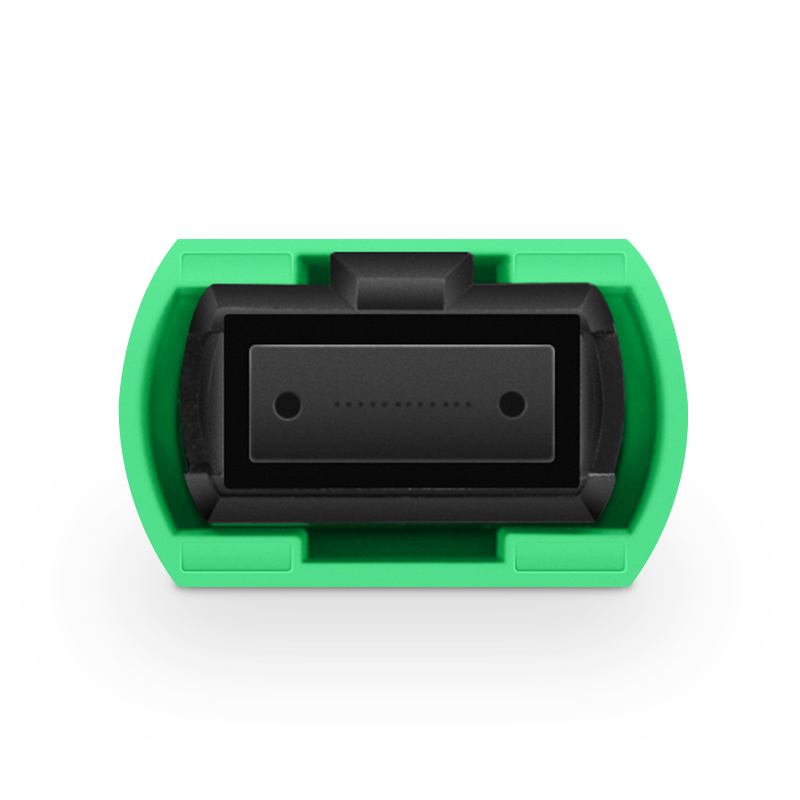

Connector A	US Conec MTP® Female (No Pins)	Connector B	US Conec MTP® Female (No Pins)
Fiber Type	OM4 50/125μm	Wavelength	850/1300nm
40/100G Ethernet Distance	50/100m@850nm	10G Ethernet Distance	50m@850nm
Fiber Type	Corning ClearCurve®	Polish Type	APC-APC
Insertion Loss	≤0.35dB (0.15dB Typical)	Return Loss	≥20dB
Attenuation @1310nm	≤2.3dB/km	Attenuation @1550nm	≤0.6dB/km
Cable Jacket	LSZH	Minimum Bend Radius	7.5mm
Cable Outer Diameter (OD)	3.0mm	Branch Length	0.5mm
Installation Tensile Load	66N	Tensile Strength (Long/Short Term)	60/120N
Operating Temperature	-10~60°C (14~140°F)	Storage Temperature	-40~+85°C (-40~185°F)
