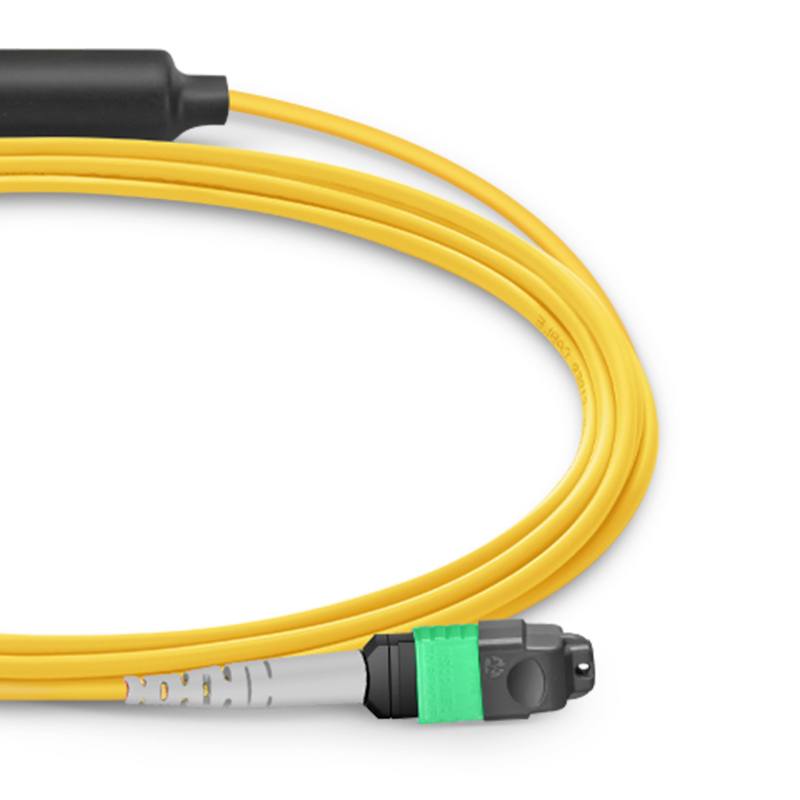

1m (3ft) OS2 12-core MTP®-12 APC (female) to 2x MTP®-4 APC (female) single-mode conversion patch cord, PVC, 0.35dB, polarity B, yellow

￥830

型号：MTP®-12 to 2×MTP®-4, OS2

Length:

1m 2m 3m 5m 10m

加入购物车

产品特征

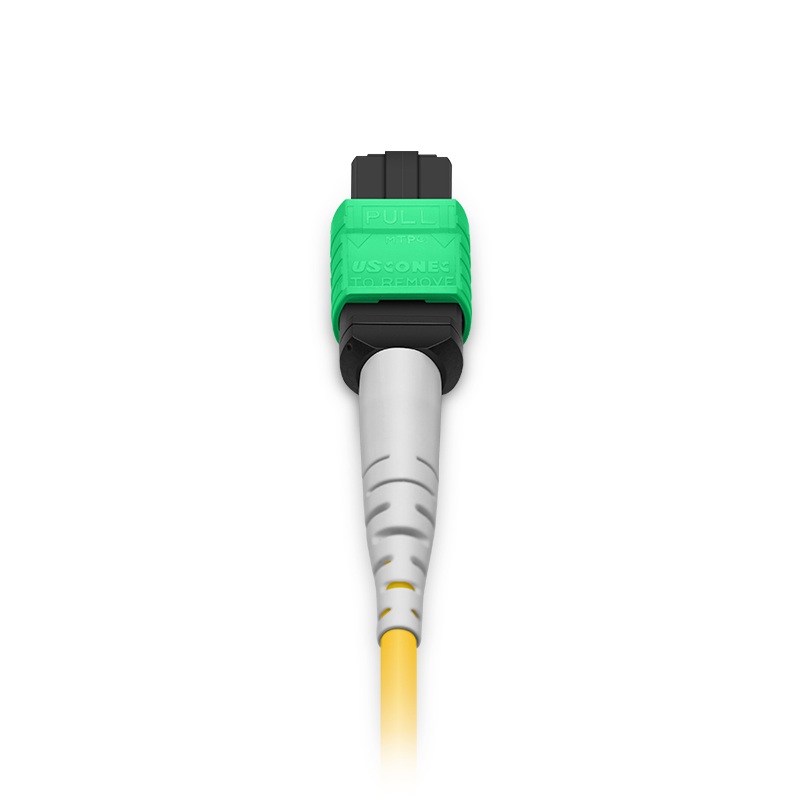

US Conec MTP® connector with 0.35dB low insertion loss

Corning SMF-28® optical fiber, minimum bend radius 10mm

Color-coded connector housing for easy identification

Convert 12 fiber optic connections into 4 fiber optic connections to achieve full utilization of the fibers

商品详情
资料下载(PDF)

MTP® Conversion Patch Cord, MTP®-12 (Female) APC to 2xMTP®-4 (Female) APC, 12 Fibers, OS2, LSZH, Polarity B

MTP conversion patch cords are designed to provide greater flexibility for MTP-based cabling systems. Unlike MTP breakout patch cords, MTP conversion patch cords use MTP connectors on both ends and can offer more possibilities for existing 8-fiber cabling systems.
In the MTP-12 APC to 2xMTP-4 APC conversion patch cord, the MTP-12 connector uses only 8 active fibers of the MTP-12 for transmission, leaving the remaining 4 fibers unused.
The MTP-4 connector only uses 4 active fibers from the MTP-12 for transmission, leaving the other 8 fibers unused. It is designed to connect four 200G NVIDIA InfiniBand OSFP/QSFP56/QSFP112 optical modules to an 800G NVIDIA InfiniBand dual-port OSFP optical module. Compared with separately purchasing and installing a conversion box, using an MTP conversion patch cord is a more cost-effective and lower-loss option.

Specifications and parameters

Connector A	US Conec MTP® Female (No Pins)	Connector B	US Conec MTP® Female (No Pins)
Fiber Type	OS2 9/125μm	Wavelength	1310/1550nm
Optical Fiber	Corning SMF-28®	Polish Type	APC-APC
Insertion Loss	≤0.35dB (0.15dB Typical)	Return Loss	≥60dB
Attenuation @1310nm	≤0.32dB/km	Attenuation @1550nm	≤0.18dB/km
Cable Jacket	LSZH	Minimum Bend Radius	10mm
Cable Outer Diameter (OD)	3.0mm	Branch Length	0.5mm
Installation Tensile Load	66N	Tensile Strength (Long/Short Term)	80/240N
Operating Temperature	-10~60°C (14~140°F)	Storage Temperature	-40~+85°C (-40~185°F)
