1m（3ft）OM4 16芯MTP®-16 APC（母头）转2xMTP®-8 UPC（母头）多模转换跳线，PVC，0.35dB，极性B，品红色

￥830

型号：MTP®-16 to 2×MTP®-8, OM4

Length:

1m 2m 3m 5m 10m

加入购物车

产品特征

US Conec MTP® connector with 0.35dB low insertion loss

Corning ClearCurve® Fiber Optic, minimum bend radius 7.5mm

Color-coded connector housing for easy identification

Convert 16 fiber optic connections into 8 fiber optic connections to make full use of the fibers

商品详情
资料下载(PDF)

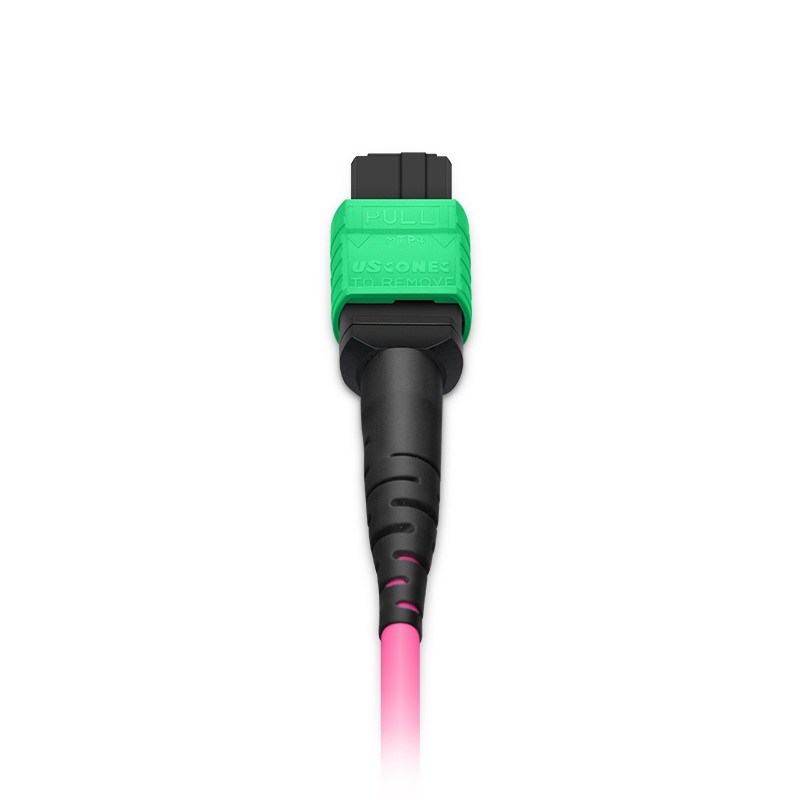

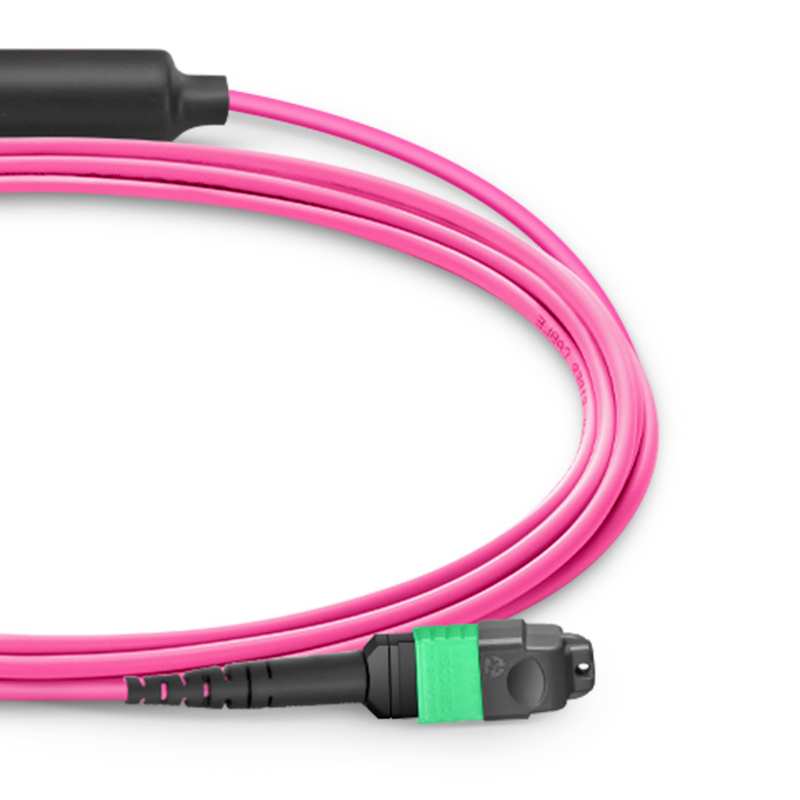

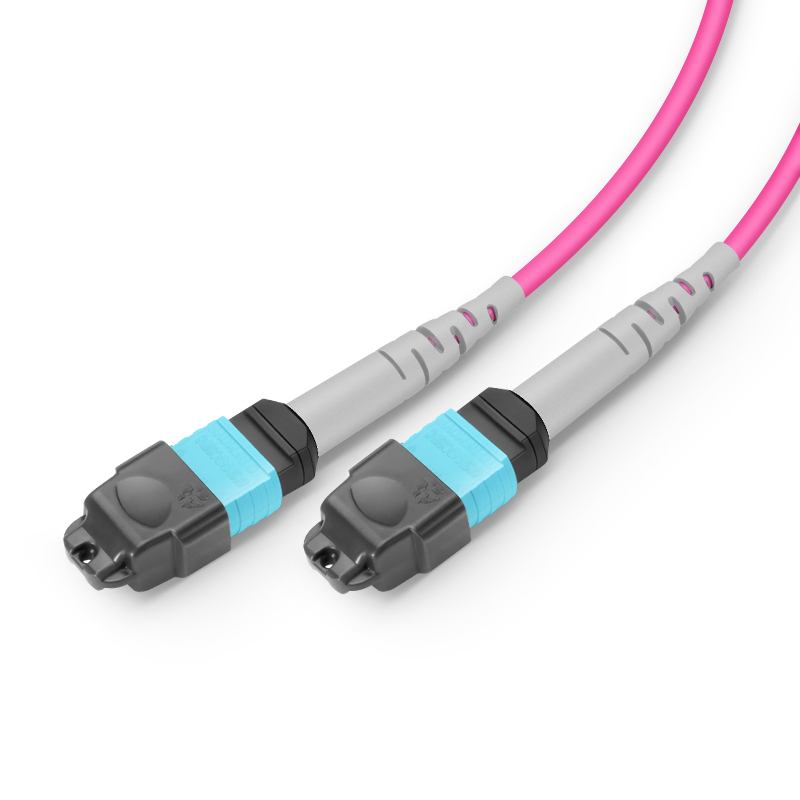

MTP® Conversion Patch Cord, MTP®-16 (Female) APC to 2xMTP®-8 (Female) UPC, 16 Fibers, OM4, LSZH, Polarity B

MTP conversion patch cords are designed to provide greater flexibility for MTP-based cabling systems. Unlike MTP fanout cables, MTP conversion patch cords feature MTP connectors at both ends and can offer more possibilities for existing 16-fiber cabling systems.

In MTP-16 APC to 2xMTP-8 UPC conversion patch cords, the MTP-8 connectors use only 8 active fibers from the MTP-12 for transmission, leaving the remaining 4 fibers unused. They are designed to connect two NVIDIA InfiniBand 200G QSFP56 or QSFP56 optical modules to NVIDIA 400G QSFP-DD or QSFP-DD/OSFP optical modules. Compared to purchasing and installing an adapter separately, using MTP conversion patch cords is a more economical and lower-loss option.

Specification Parameters

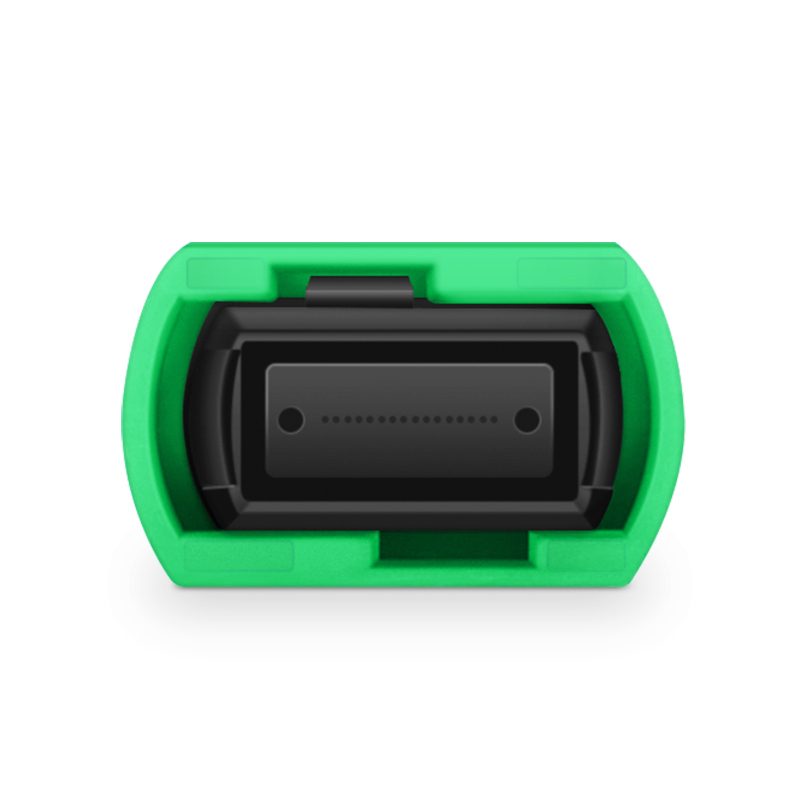

Connector A	US Conec MTP® Female (No Pins)	Connector B	US Conec MTP® Female (No Pins)
Fiber Type	OM4 50/125μm	Wavelength	850/1300nm
40/100G Ethernet Distance	50/100m@850nm	10G Ethernet Distance	50m@850nm
Fiber Type	Corning ClearCurve®	Polish Type	APC-APC
Insertion Loss	≤0.35dB (0.15dB Typical)	Return Loss	≥20dB
Attenuation @1310nm	≤2.3dB/km	Attenuation @1550nm	≤0.6dB/km
Cable Jacket	LSZH	Minimum Bend Radius	7.5mm
Cable Outer Diameter (OD)	3.0mm	Branch Length	0.5mm
Installation Tensile Load	66N	Tensile Strength (Long/Short Term)	60/120N
Operating Temperature	-10~60°C (14~140°F)	Storage Temperature	-40~+85°C (-40~185°F)
