1m (3ft) OM4 24-fiber MTP®-24 UPC (female) to 2x MTP®-12 UPC (female) multimode breakout patch cord, PVC, 0.35dB, polarity A, magenta
￥920

型号：MTP®-24-2XMTP®-12，OM4

Length:
1m 2m 3m 5m 10m
加入购物车

产品特征

US Conec MTP® connector with 0.35dB low insertion loss

Corning ClearCurve® fiber optic cable, minimum bend radius 7.5mm

Color-coded connector housing for easy identification

Provides conversion from 24-core to 12-core fiber connections to achieve full utilization of fiber.

  • 商品详情
  • 资料下载(PDF)

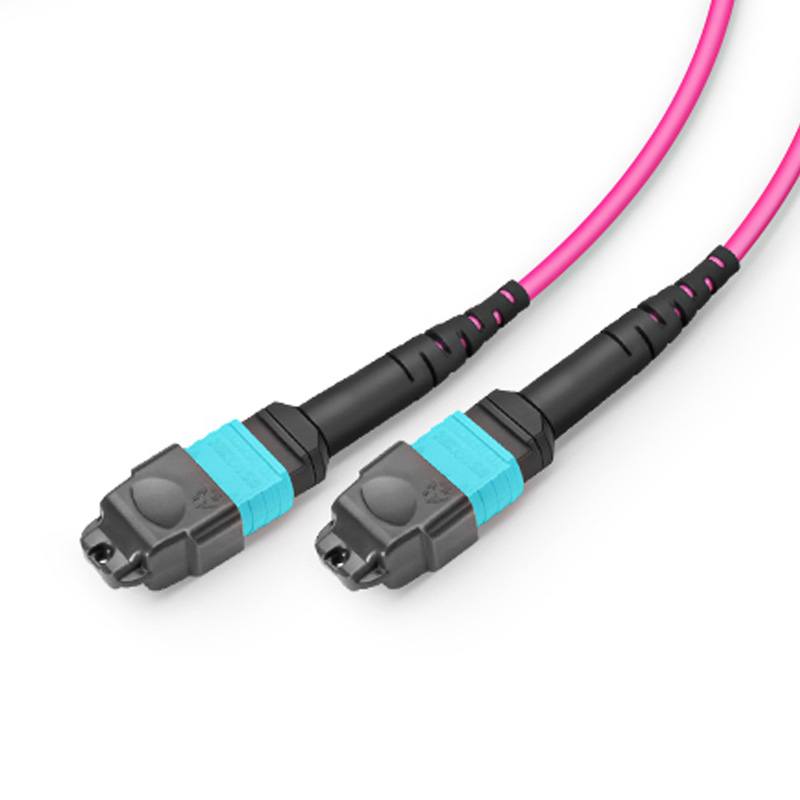

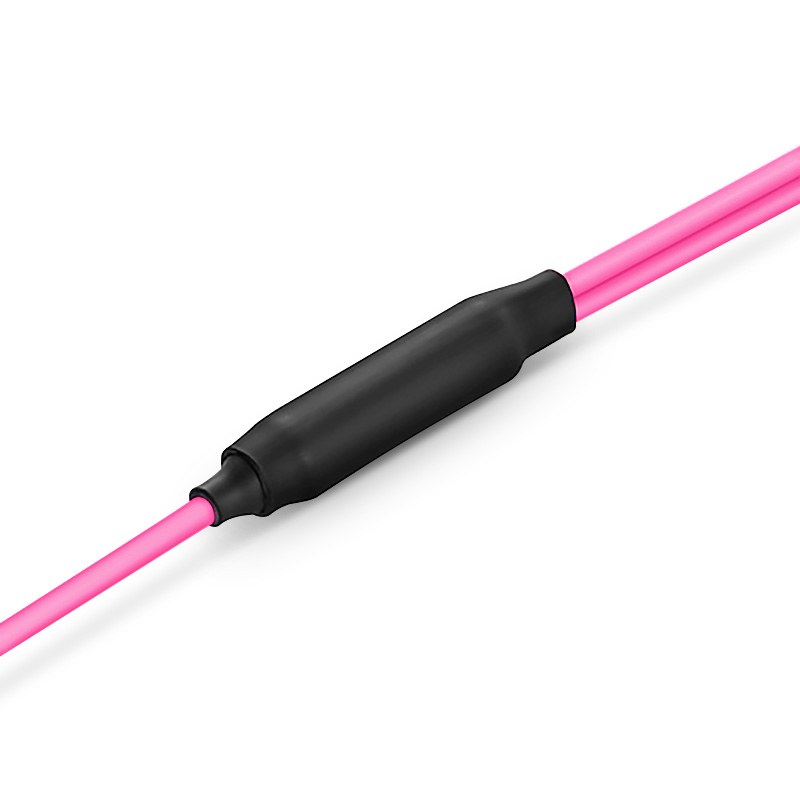

MTP® Conversion Patch Cord, MTP®-24 (Female) UPC to 2xMTP®-12 (Female) UPC, 24 Fibers, OM4, LSZH, Polarity A

MTP® conversion patch cords are designed to provide greater flexibility for MTP-based cabling systems. Unlike MTP breakout cords, MTP conversion patch cords are terminated with MTP connectors on both ends, offering more possibilities for existing 24-fiber cabling systems.

40G/100G MTP® conversion patch cords reduce fiber waste in current 40G transmissions and upcoming 100G transmissions. Compared with purchasing and installing conversion boxes separately, using MTP conversion patch cords is a more economical and lower-loss option.

Specification Parameters

Connector A

US Conec MTP®

Connector B

Female Connector

Fiber Type

OM4 50/125μm

Wavelength

850/1300nm

Optical Fiber

Corning ClearCurve®

Polish Type

UPC-UPC

Insertion Loss

≤0.35dB (0.15dB Typical)

Return Loss

≥20dB

Attenuation @1310nm

≤2.3dB/km

Attenuation @1550nm

≤0.6dB/km

Cable Jacket

LSZH

Minimum Bend Radius

7.5mm

Cable Outer Diameter (OD)

3.0mm

Branch Length

0.5mm

Installation Tensile Load

66N

Tensile Strength (Long/Short Term)

80/240N

Operating Temperature

-10~70°C (14~158°F)

Storage Temperature

-40~85°C (-40~185°F)
