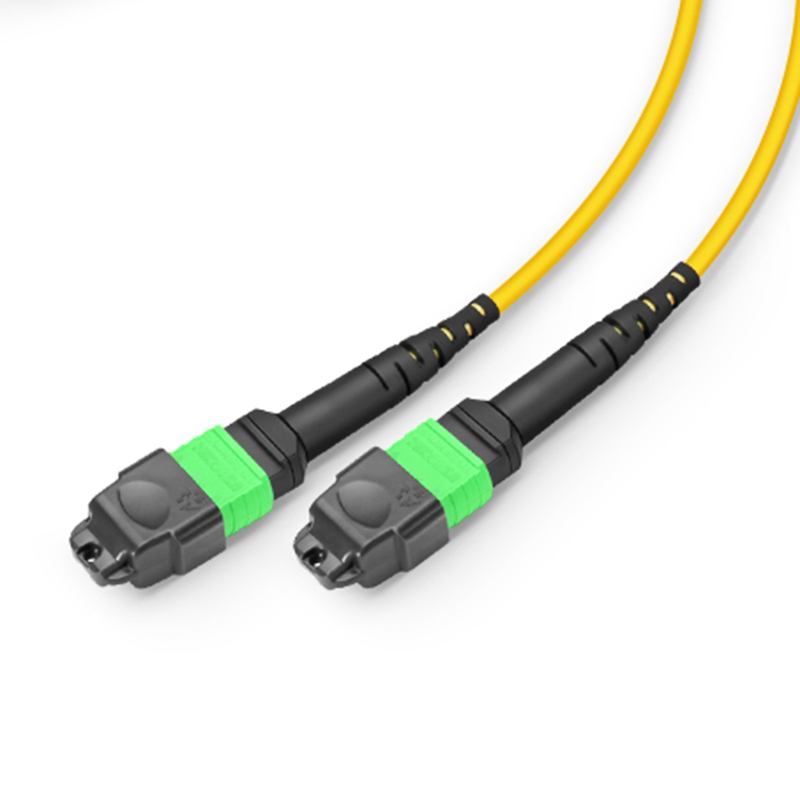

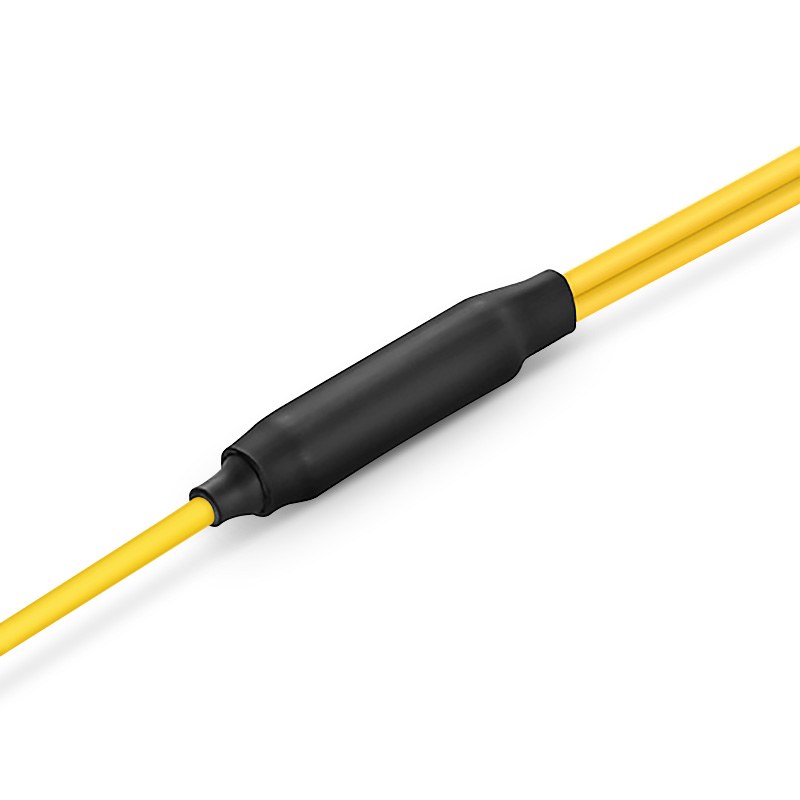

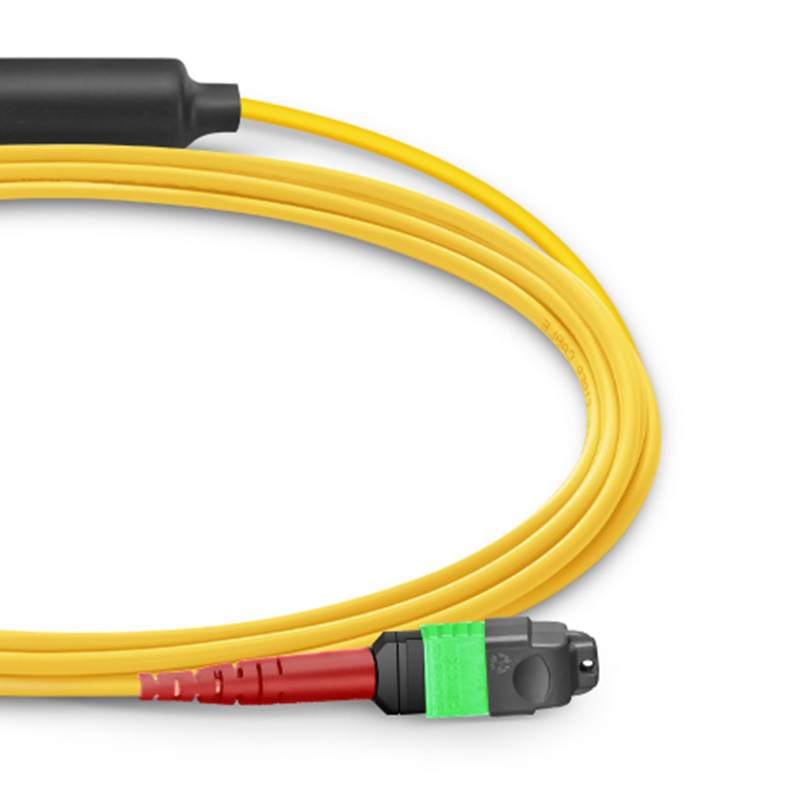

1m (3ft) OS2 24-core MTP®-24 APC (female) to 2x MTP®-12 APC (female) single-mode conversion patch cord, PVC, 0.35dB, polarity A, yellow

￥1400

型号：MTP®-24-2XMTP®-12，OS2

Length:

1m 2m 3m 5m 10m

加入购物车

产品特征

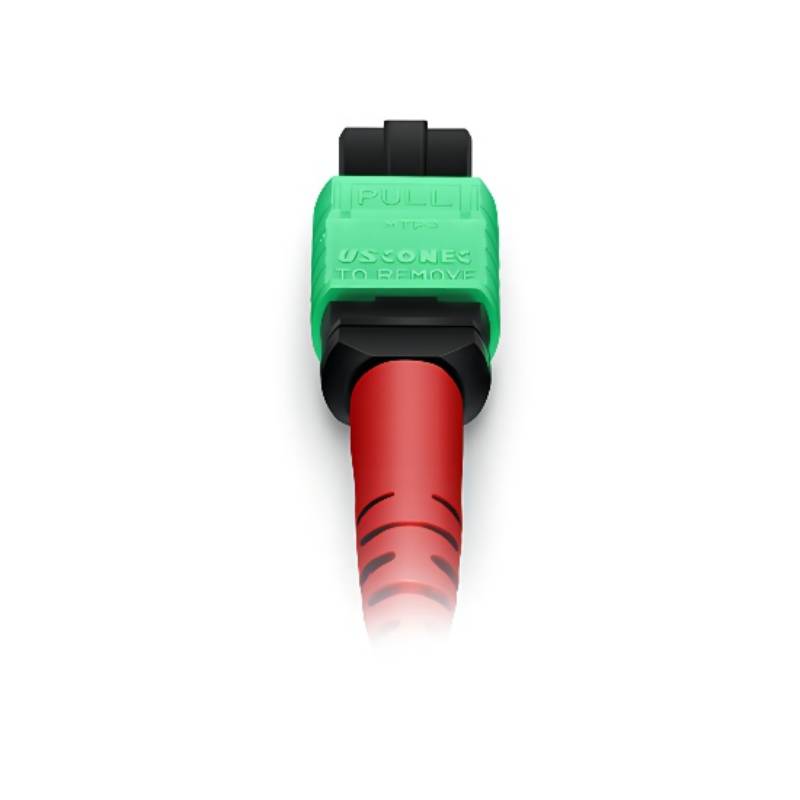

US Conec MTP® connector with 0.35dB low insertion loss

Color-coded connector housing for easy identification

Provides conversion from 24-core to 12-core fiber connections to achieve full utilization of fiber.

商品详情
资料下载(PDF)

MTP® Conversion Patch Cord, MTP®-24 (Female) APC to 2xMTP®-12 (Female) APC, 24 Fibers, OS2, LSZH, Polarity A

The MTP® conversion patch cord is designed to provide greater flexibility for MTP-based cabling systems. Unlike MTP breakout patch cords, MTP® conversion patch cords have MTP connectors at both ends, offering more possibilities for existing 24-fiber cabling systems.

40G/100G MTP conversion patch cords reduce fiber waste in current 40G transmissions and upcoming 100G transmissions. Compared to separately purchasing and installing conversion boxes, using MTP conversion patch cords is a more cost-effective and lower-loss option.

Specification Parameters

Connector A	US Conec MTP®	Connector B	Female Connector
Fiber Type	OS2 9/125μm	Wavelength	1310/1550nm
Optical Fiber	Corning SMF-28®	Polish Type	APC-APC
Insertion Loss	≤0.35dB (0.15dB Typical)	Return Loss	≥60dB
Attenuation @1310nm	≤0.32dB/km	Attenuation @1550nm	≤0.18dB/km
Cable Jacket	LSZH	Minimum Bend Radius	10mm
Cable Outer Diameter (OD)	3.0mm	Branch Length	0.5mm
Installation Tensile Load	66N	Tensile Strength (Long/Short Term)	80/240N
Operating Temperature	-10~70°C (14~158°F)	Storage Temperature	-40~85°C (-40~185°F)
