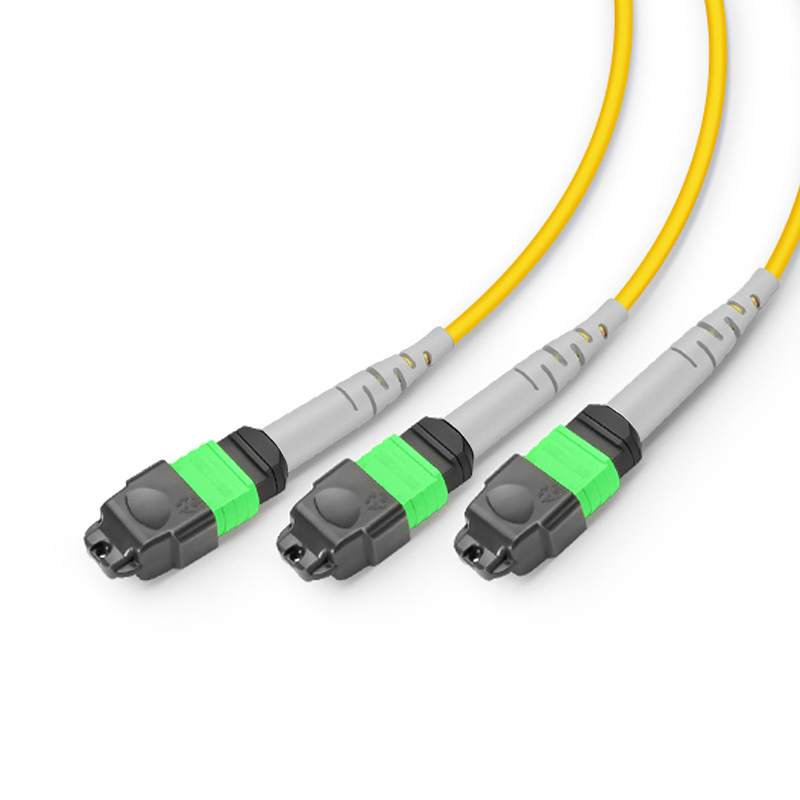

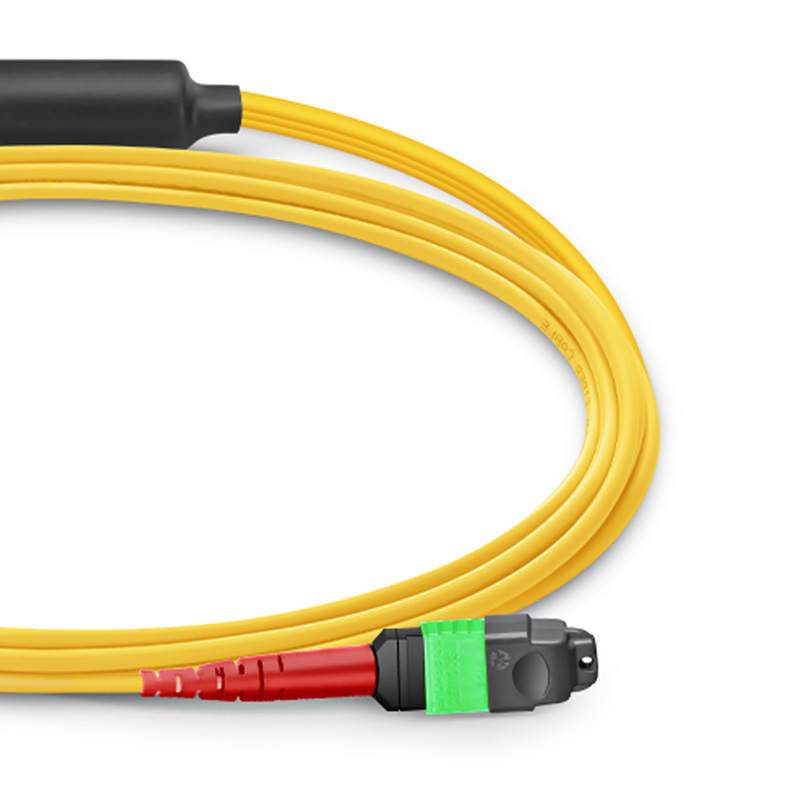

1m (3ft) OS2 24-core MTP®-24 APC (female) to 2x MTP®-8 APC (female) single-mode conversion patch cord, PVC, 0.35dB, polarity B, yellow
￥1700

型号：MTP®-24-3XMTP®-8, OS2

Length:
1m 2m 3m 5m 10m
加入购物车

产品特征

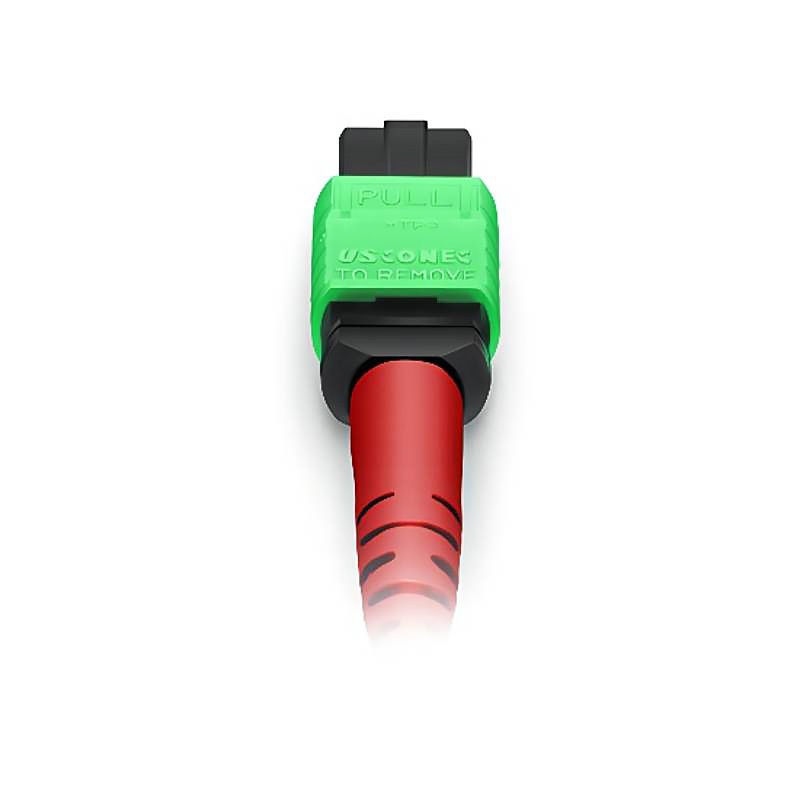

US Conec MTP® connector with 0.35dB low insertion loss

Corning SMF-28® optical fiber, minimum bend radius 10mm

Color-coded connector housing for easy identification

Provides conversion from 24-core to 8-core fiber connections to achieve full utilization of fiber.

  • 商品详情
  • 资料下载(PDF)

MTP® Conversion Patch Cord, MTP®-24 (Female) APC to 3xMTP®-8 (Female) APC, 24 Fibers, OS2, LSZH, Polarity B

MTP® conversion jumpers are designed to provide greater flexibility for MTP®-based cabling systems. Unlike MTP breakout jumpers, MTP® conversion jumpers are terminated with MT® connectors at both ends, offering more possibilities for existing 24-fiber cabling systems.

40G/100G MTP conversion jumpers reduce fiber waste in current 40G transmissions and upcoming 100G transmissions. Compared to purchasing and installing conversion boxes separately, using MTP conversion jumpers is a more cost-effective and lower-loss option.

Specification Parameters

Connector A

US Conec MTP®

Connector B

Female Connector

Fiber Type

OS2 9/125μm

Wavelength

1310/1550nm

Optical Fiber

Corning SMF-28®

Polish Type

APC-APC

Insertion Loss

≤0.35dB (0.15dB Typical)

Return Loss

≥60dB

Attenuation @1310nm

≤0.32dB/km

Attenuation @1550nm

≤0.18dB/km

Cable Jacket

LSZH

Minimum Bend Radius

10mm

Cable Outer Diameter (OD)

3.0mm

Branch Length

0.5mm

Installation Tensile Load

66N

Tensile Strength (Long/Short Term)

80/240N

Operating Temperature

-10~70°C (14~158°F)

Storage Temperature

-40~85°C (-40~185°F)
