3m (10ft) OM4 24-core 2x MTP®-12 UPC (male) to 3x MTP®-8 UPC (female) multimode conversion patch cord, PVC, maximum 0.35dB, Polarity A, magenta color

￥1520

型号：MTP®-12 to 3X MTP®-8, OM4

加入购物车

产品特征

US Conec MTP® connector with 0.35/0.25dB low insertion loss

Corning ClearCurve® Fiber Optic, minimum bend radius 7.5mm

Color-coded connector housing for easy identification

Convert 12 fiber connections into 8 fiber connections to achieve full utilization of the fibers

商品详情
资料下载(PDF)

MTP® Conversion Patch Cord, 2xMTP®-12 (Male) UPC to 3xMTP®-8 (Female) UPC, 24 Fibers, OM4, LSZH, Polarity A

The MTP® conversion patch cord is designed to offer greater flexibility for MTP-based cabling systems. Unlike MTP breakout patch cords, MTP conversion patch cords are terminated with MTP connectors at both ends, providing more options for existing 12-fiber cabling systems.
40G/100G MTP conversion patch cords help reduce fiber waste in current 40G transmissions and future 100G transmissions. Compared to separately purchasing and installing conversion boxes, using MTP conversion patch cords is a more cost-effective and lower-loss solution.

Specifications and parameters

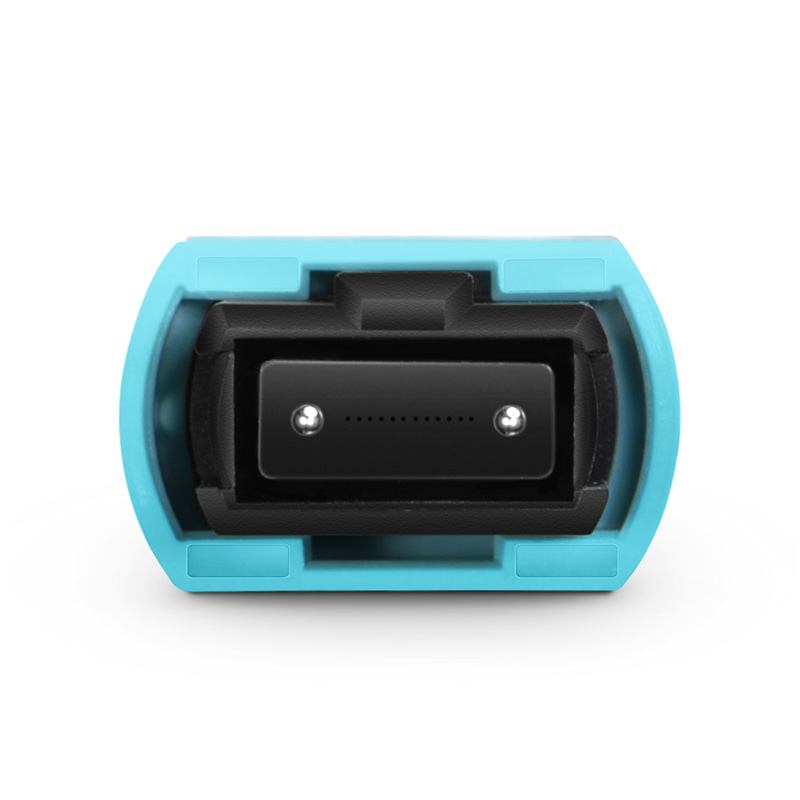

Connector A	US Conec MTP® Male (With Pins)	Connector B	US Conec MTP® Female (No Pins)
Polish Type	UPC-UPC	Optical Fiber	Corning ClearCurve®
Fiber Type	OM4 50/125μm	Wavelength	850/1300nm
Fiber Count	24 Fibers	Polarity	Polarity A
Cable Outer Diameter (OD)	3.0mm	Cable Jacket	LSZH
Minimum Bend Radius (Fiber)	7.5mm	Minimum Bend Radius (Patch Cord)	20/10D (Dynamic/Static)
Connector Durability	500 Cycles	Tensile Strength (Long/Short Term)	90/180N
Insertion Loss	≤0.35dB (MTP-12)	Return Loss	≥20dB
Attenuation @850nm	≤3.5dB/km	Attenuation @1300nm	≤1.5dB/km
Operating Temperature	-10~+60°C (14~140°F)	Storage Temperature	-10~+70°C (14~158°F)
