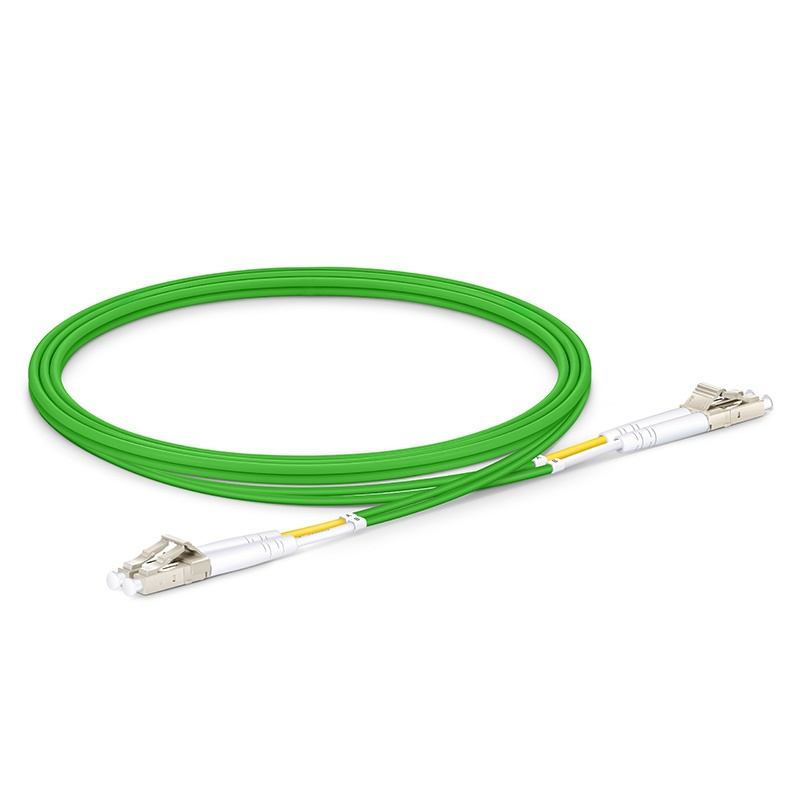

1m LC/UPC - LC/UPC Duplex Multimode OM5 Bandwidth Fiber Patch Cable - 2.0mm PVC

￥45

型号：OM5 50/125 Multimode

Length:

1m 2m 3m 5m 10m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

The double-layer fiber core structure provides better mechanical performance and a lower risk of curling damage.

Bend-insensitive optical fiber & minimum bending radius 7.5mm

Broadband multimode fiber solution, supporting at least 4 wavelengths in the 850-950nm range

When using SWDM in the 850-950nm range, extended distance is supported

Optical testing ensures network performance

Compliant with TIA-604 (FOCIS)

商品详情
资料下载(PDF)

LC/UPC - LC/UPC Duplex Multimode OM5 Wideband Fiber Optic Jumper - 2.0mm PVC

OM5 multimode wideband bend - insensitive fiber optic jumper is optimized for multi - wavelength transmission systems operating in the 850 - 950nm range. It can provide ideal support for emerging short - wavelength division multiplexing (SWDM) applications, reducing the number of parallel fibers by at least a quarter. This allows for the continuous use of only two fibers (instead of eight) to transmit 40 Gb/s and 100 Gb/s, and reduces the number of fibers to achieve higher speeds.

OM5 meets the requirements of TIA - 492AAAE and IEC 60793 - 2 - 10 A1a.4, and is fully backward - compatible with existing OM4 networks and applications. It complies with the RoHS standard, and the fiber optic jumper has undergone insertion loss optical testing to ensure high quality.

Specification Parameters

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	Bend-insensitive
Fiber Type	OM5 50/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation @850nm	3.0dB/km	Attenuation @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
