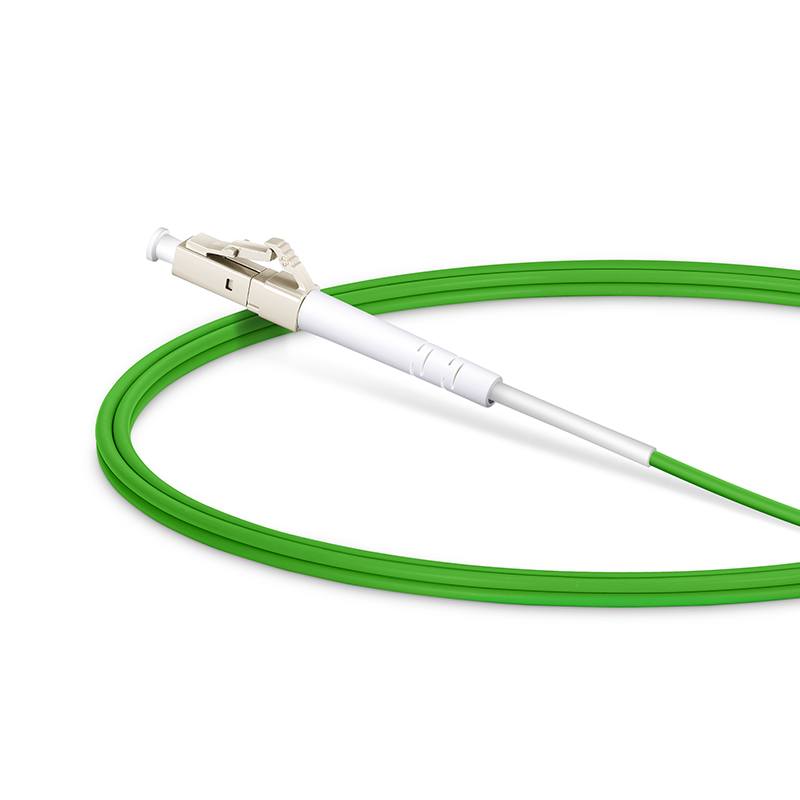

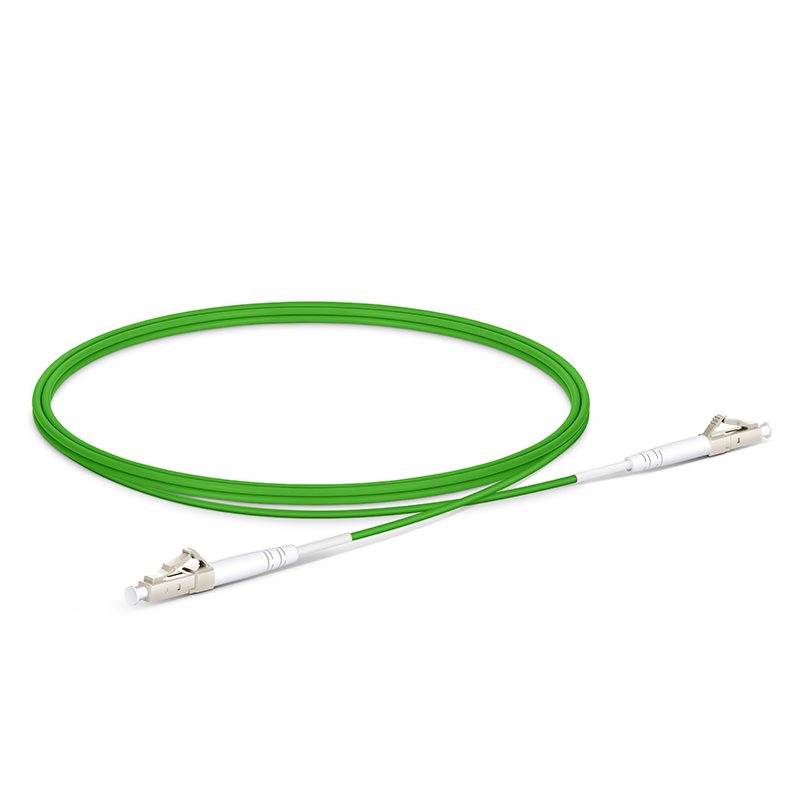

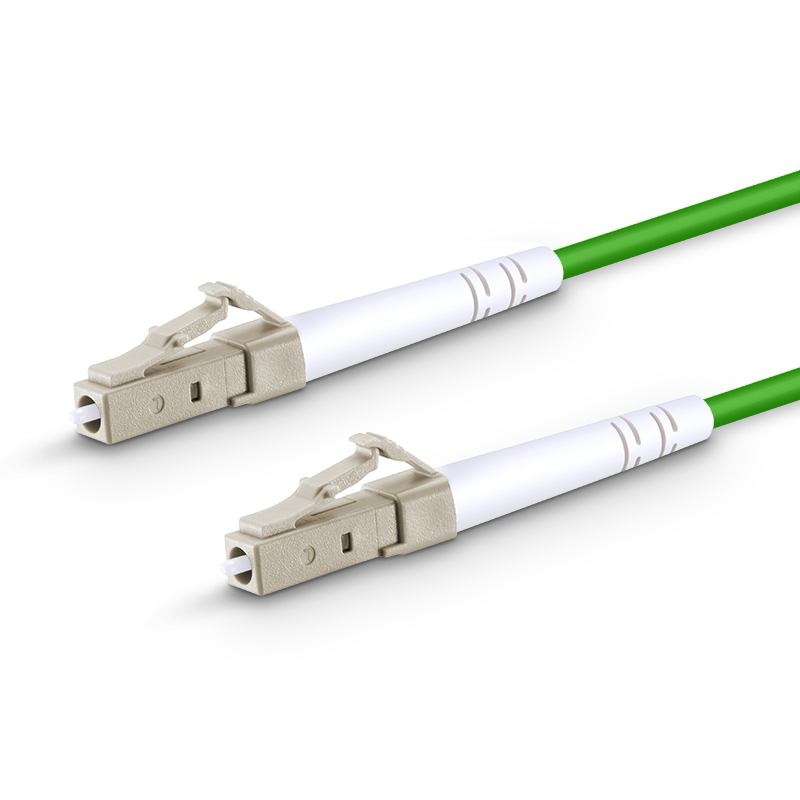

1m (3ft) LC UPC - LC UPC Simplex OM5 Multimode Wideband Fiber Patch Cable PVC 2.0mm

￥30

型号：OM5 50/125 Multimode

Length:

1m 3m 5m 10m 15m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

Bend-insensitive optical fiber & 7.5mm minimum bend radius

Broadband Multimode Fiber Solution

Supports long distance when using SWDM at 850-953nm

Optical testing ensures network performance

Suitable for unidirectional data transmission

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

LC UPC - LC UPC Simplex OM5 Multimode Wideband Fiber Optic Jumper, PVC (LSZH), 2.0mm

OM5 wideband multimode bend-insensitive fiber is specifically designed for multi-wavelength transmission systems in the 850 - 953nm range and supports emerging short wavelength division multiplexing (SWDM) applications. These applications are mainly used for short-distance, high-speed fiber optic communications. By using multi-wavelength transmission, it improves the efficiency and capacity of fiber optic transmission, reduces the number of fibers, and achieves higher speeds at the same time.
OM5 meets the standard requirements of TIA-492AAAE and IEC 60793-2-10 A1a.4, and is fully compatible with existing OM4 networks and applications. In addition, it also complies with the RoHS standard and has passed optical tests to ensure that the fiber optic jumper has low insertion loss, providing a high-quality product.

Specification Parameters

Connector A	LC UPC Simplex	Connector B	LC UPC Simplex
Number of Fiber Cores	Single - core	Fiber Grade	Bend - insensitive
Fiber Type	OM5 50/125μm	Wavelength	850/1300nm
RoHS Compliance	Compliant	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	10mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation @850nm	3.0dB/km	Attenuation @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
