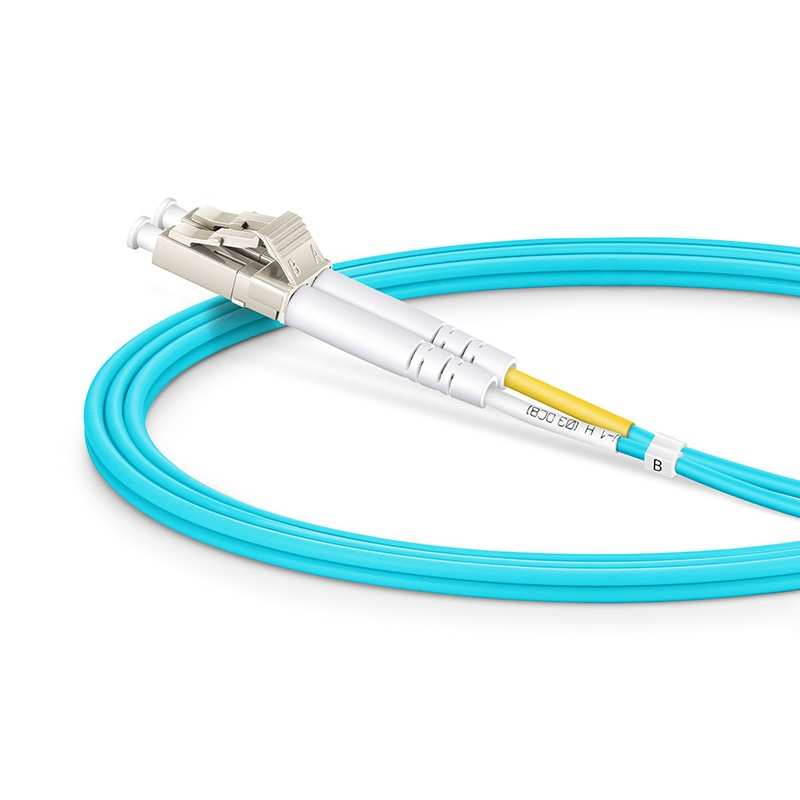

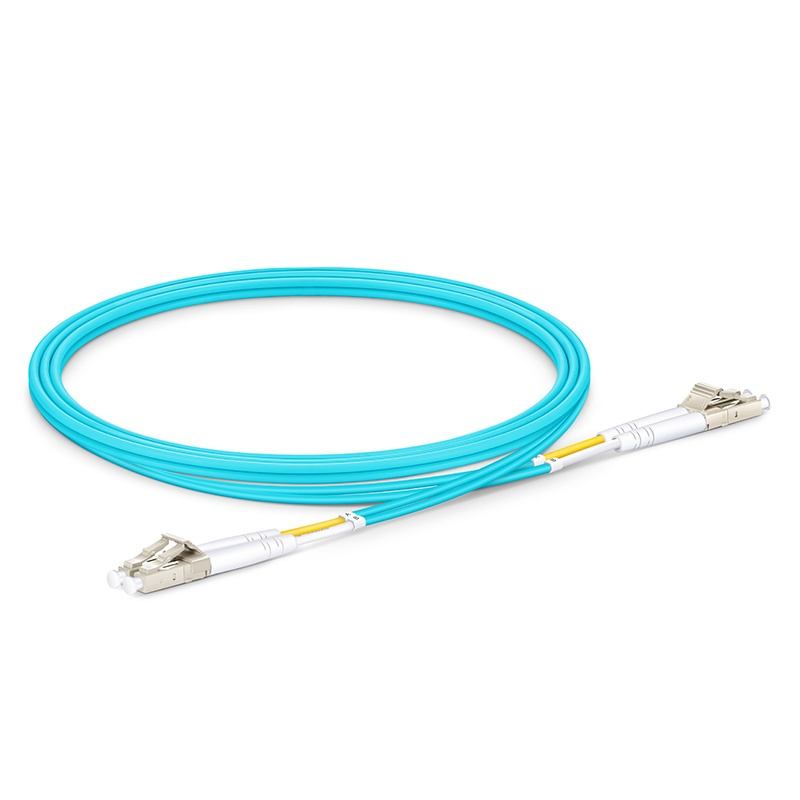

1M LC/UPC-LC/UPC Duplex Multimode OM4 Fiber Patch Cord - 2.0mm PVC

￥30

型号：HZ-LC-LC-DX-1M4

Length:

1m 2m 3m 5m 7m 10m 15m 20m 25m

加入购物车

产品特征

Precision zirconia ferrule connectors ensure low loss

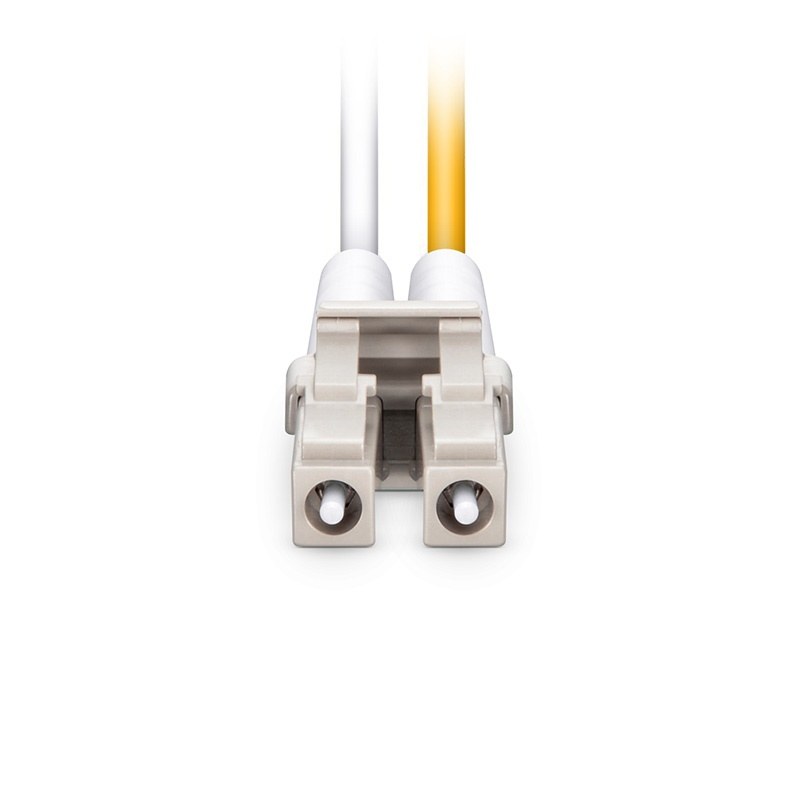

Duplex clip prevents the fiber from rotating and maintains polarity

Bend-insensitive optical fiber & minimum bending radius 7.5mm

Fiber optic testing ensures network performance

Compliant with TIA-604 (FOCIS)

Suitable for 10/40/100G networks, and widely used in 40/100G applications

商品详情
资料下载(PDF)

LC/UPC - LC/UPC Duplex cMultimode OM4 Fiber Optic Jumper - 2.0mm PVC

Compared with traditional fiber optic patch cords, the 50/125μm OM4 multimode bend-insensitive patch cord has lower attenuation when bent or twisted, which makes the installation and maintenance of the patch cord more efficient.

This type of 50/125 OM4 multimode fiber optic patch cord is very suitable for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ optical modules, etc., and is used for 10/40/100G Ethernet connections. It is the preferred fiber optic patch cord for 40/100G applications. It can also provide higher-density cabling and save more space for application scenarios that require fiber optic patch cords, such as data centers, enterprise networks, telecommunications equipment rooms, servers, and cloud storage networks.

Specification Parameters

Connector A	LC UPC Simplex	Connector B	LC UPC Simplex
Number of Fiber Cores	Single-core	Fiber Grade	Bend-insensitive
Fiber Type	OM5 50/125μm	Wavelength	850/1300nm
RoHS Compliance	Compliant	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	10mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
