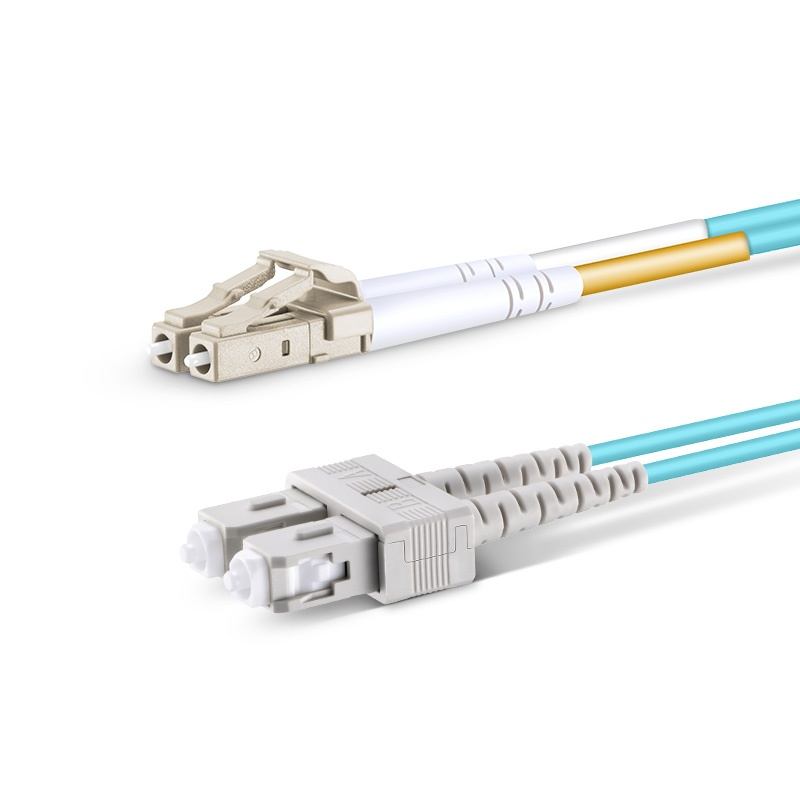

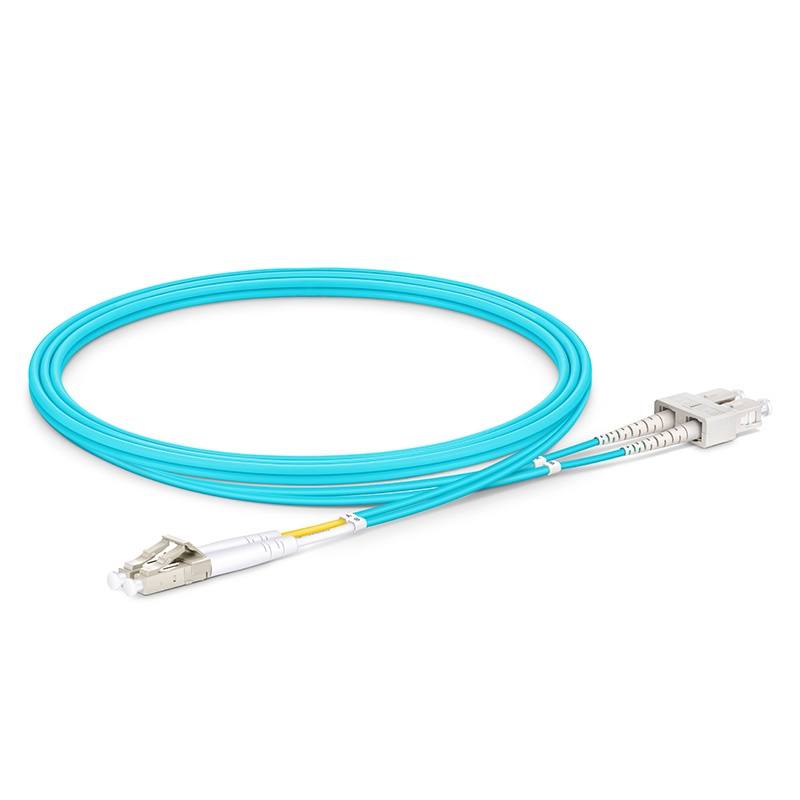

1M LC/UPC-SC/UPC 10G Duplex Multimode OM4 Fiber Patch Cable - 2.0mm PVC

￥40

型号：OM4 50/125 Multimode

Length:

1m 2m 3m 5m 7m 10m 15m

加入购物车

产品特征

Precision zirconia ferrule connectors ensure low loss

Duplex clip prevents the fiber from rotating and maintains polarity

Bend-insensitive optical fiber & minimum bending radius 7.5mm

Fiber optic testing ensures network performance

TIA-604 (FOCIS) compliant

Suitable for 10/40/100G networks, and widely used in 40/100G applications

商品详情
资料下载(PDF)

50/125μm OM4 multimode bend insensitive fiber jumper with high quality and cost performance.

Compared with the traditional optical fiber jumper, the 50/125μm OM4 multimode bending insensitive jumper has less attenuation when it is bent or twisted, which will make the installation and maintenance of the jumper more efficient.

This kind of 50/125 OM4 multimode fiber jumper is very suitable for connecting 40G BIDI SR, 10G SR, QSFP+ optical modules, etc. It is used for 10/40/100G Ethernet connection and is the preferred fiber jumper for 40/100G applications. It can also provide higher density wiring for data centers, enterprise networks, telecom rooms, servers, cloud storage networks and other application scenarios that require optical fiber jumpers, saving more space.

Specification Parameters

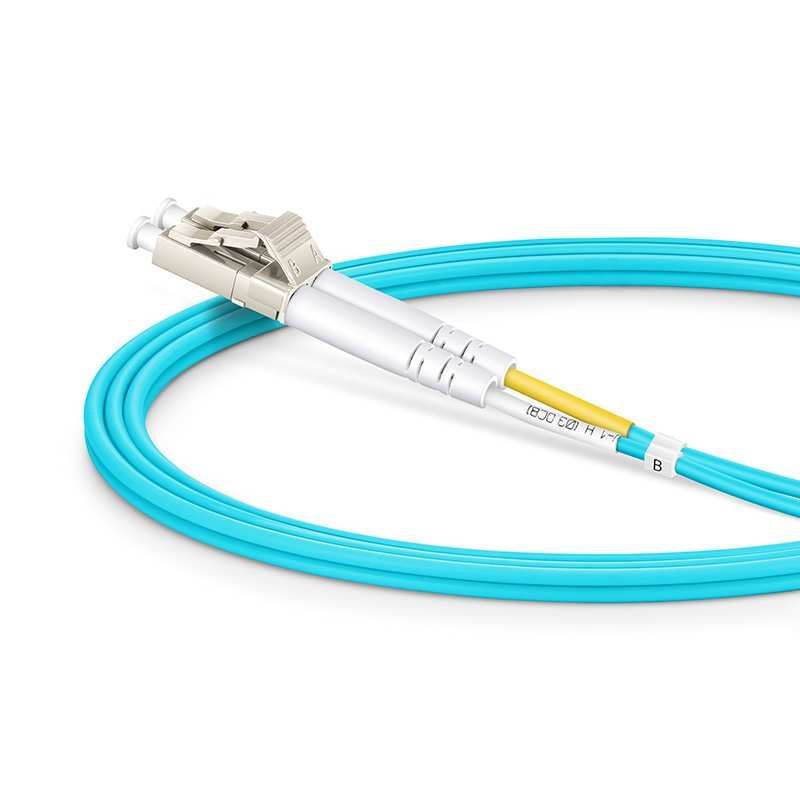

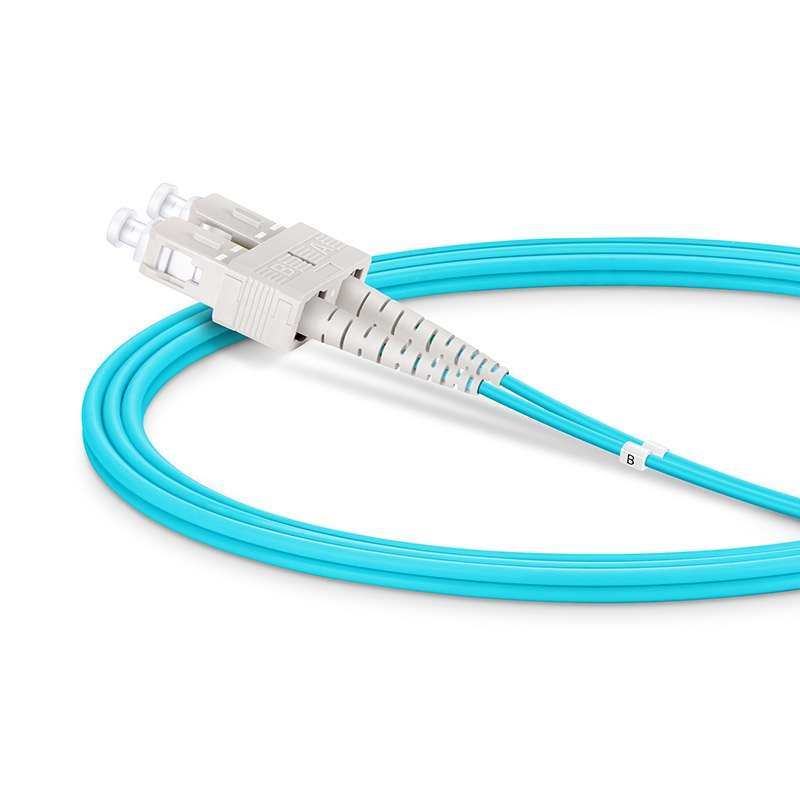

Connector A	LC UPC Duplex	Connector B	SC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	Bend-insensitive
Fiber Type	OM4 50/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
