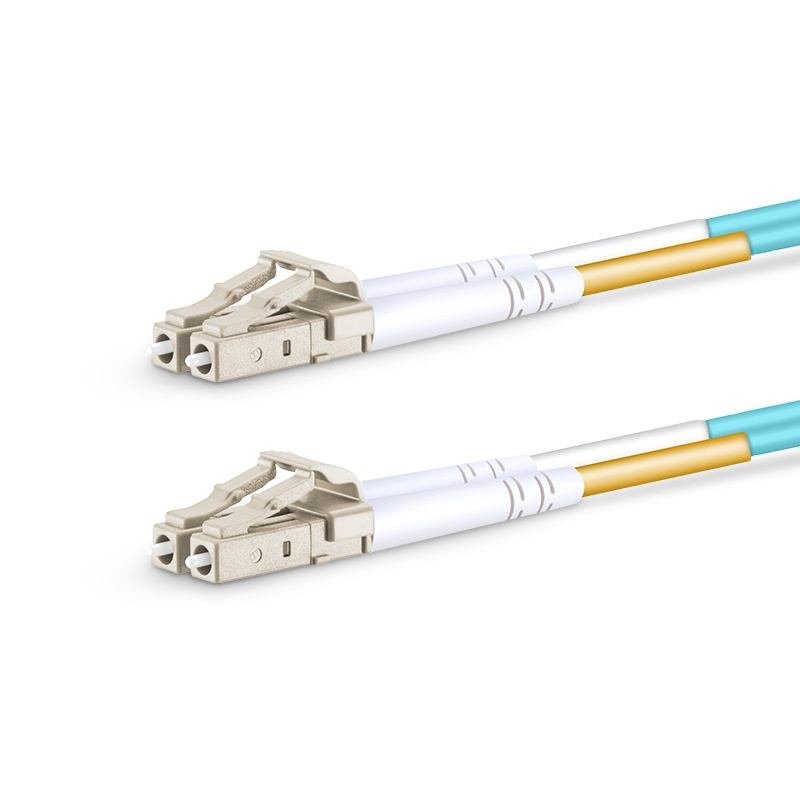

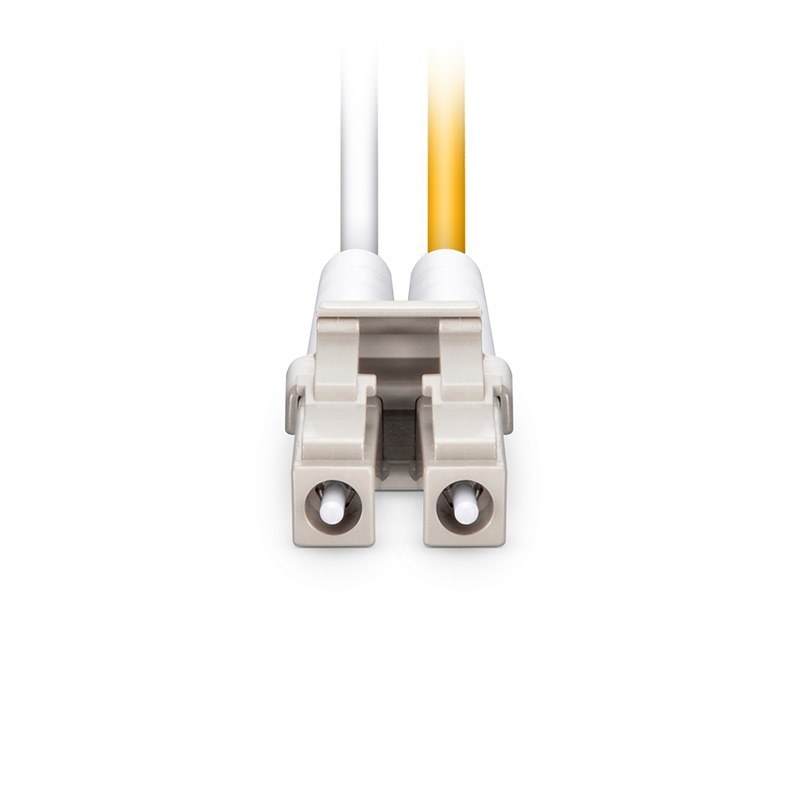

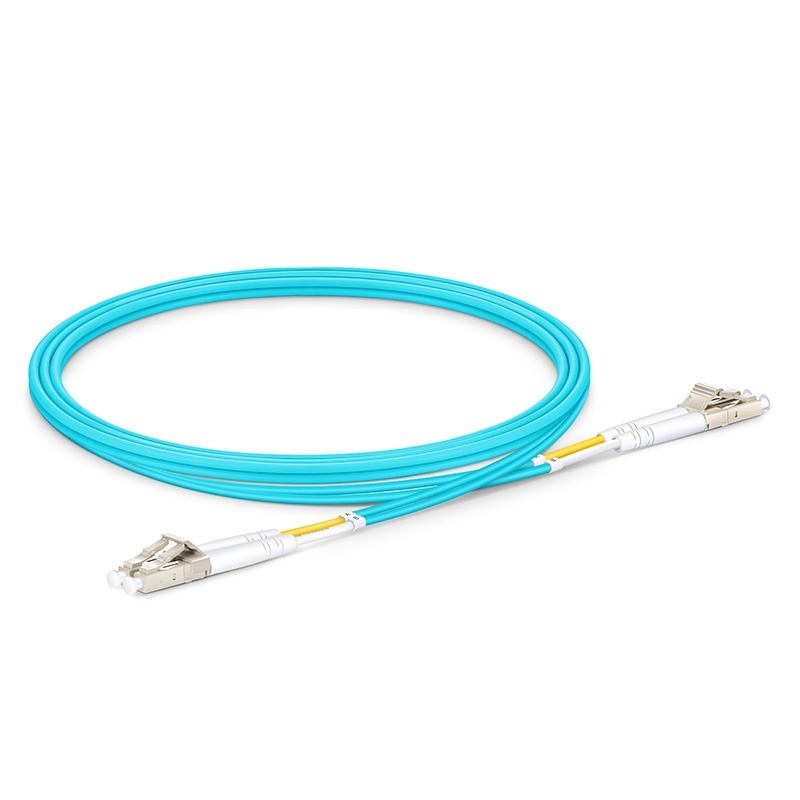

1m LC/UPC-LC/UPC Duplex Multimode OM4 Fiber Patch Cable 0.15dB Low Insertion Loss Bend-Insensitive PVC_OM4 multimode fiber patch cord_Ordinary Fiber Patch Cords_Fiber Patch Cord_Product Center

型号：OM4 50/125 Multimode

Length:

1m 2m 3m 5m

0.08dB typical low insertion loss

Bend-insensitive optical fiber & minimum bending radius 7.5mm

Precision zirconia ring connectors ensure low loss

Compliant with TIA 604 (FOCIS) and IEC 61753-1 standards

Suitable for 10/40/100G networks, and widely used in 40/100G applications

LC/UPC - LC/UPC Duplex cMultimode OM4 Fiber Optic Jumper - 2.0mm PVC(LSZH)

The 1M LC/UPC - LC/UPC duplex multimode OM4 fiber optic jumper with 2.0mm PVC(OFNR) outer sheath offers outstanding performance:

Specification Parameters

Connector A	LC UPC Simplex	Connector B	LC UPC Simplex
Number of Fiber Cores	Single-core	Fiber Grade	Bend-insensitive
Fiber Type	OM5 50/125μm	Wavelength	850/1300nm
RoHS Compliance	Compliant	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	10mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
