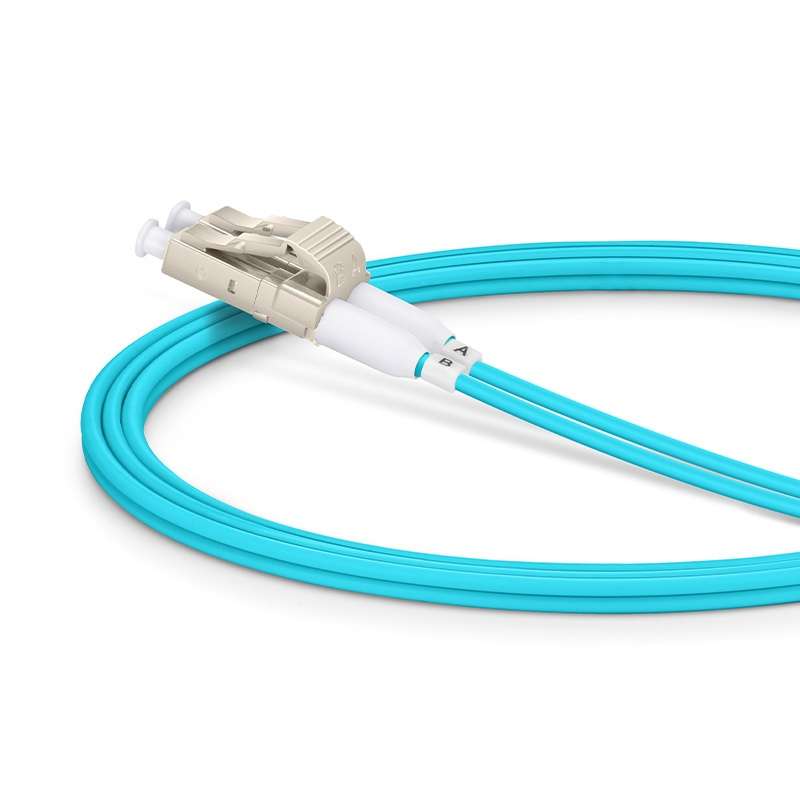

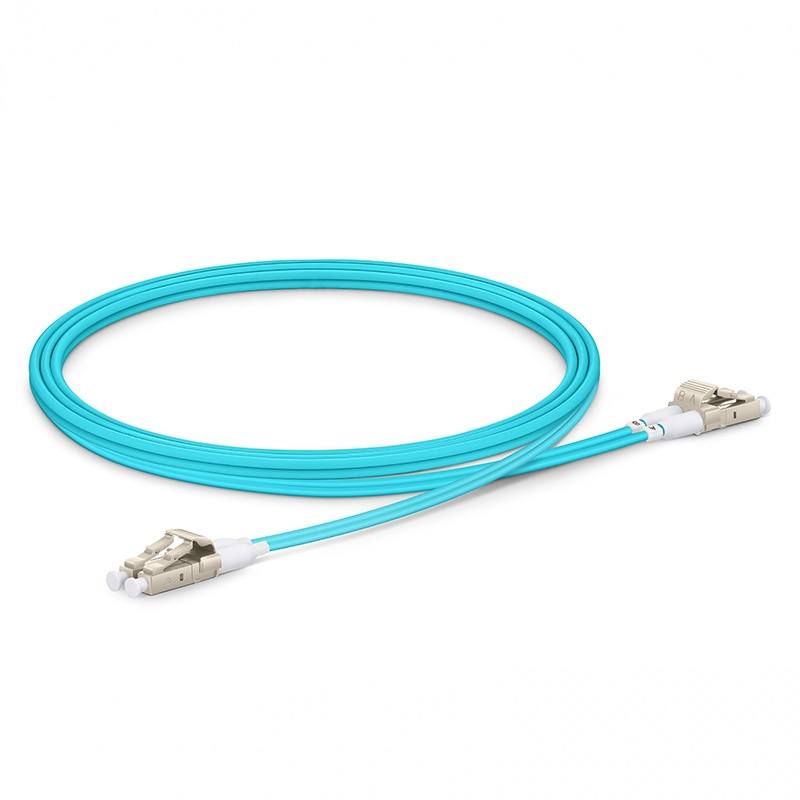

1M LC/UPC-LC/UPC Short Tail Boot 10G Duplex Multimode OM4 Fiber Patch Cable - 2.0mm PVC

￥50

型号：OM4 50/125 Multimode

Length:

1m 2m 3m 5m

加入购物车

产品特征

Tail cover shortened by 60% & total length of connector shortened by 30%

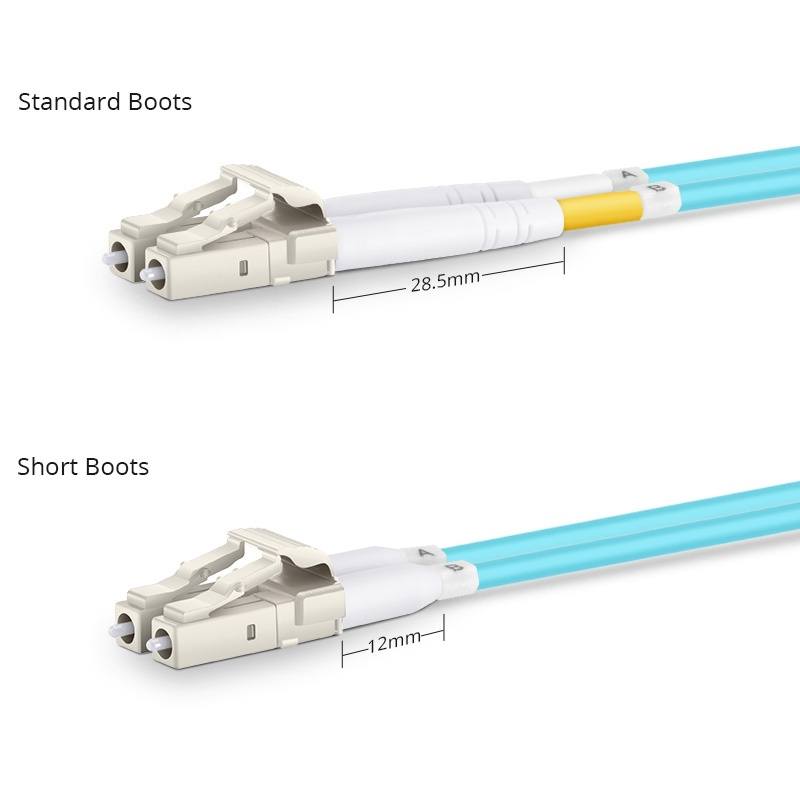

12mm short sheath design, allows connections in tight spaces

The non-heat shrinkable tubing fittings improve patch cord flexibility

Precision zirconia ferrule connector ensures low loss

Bend-insensitive optical fiber & minimum bending radius 7.5mm

Compliant with TIA-604 (FOCIS)

Suitable for 10/40/100G networks, and widely used in 40/100G applications

商品详情
资料下载(PDF)

High-quality and cost-effective 50/125μm OM4 multimode LC stub optical fiber jumper

The short tail sleeve structure is especially suitable for high-density applications with tight space requirements. When used with bend-insensitive fiber jumpers, it can reduce the attenuation during bending or twisting, thus making the installation and maintenance of jumpers more efficient. Therefore, it can be used in central office, passive optical network (PON), FTTx, data center and any place where optical fiber jumpers are needed.

This kind of 50/125 OM4 multimode fiber jumper is very suitable for connecting 40G BIDI SR, 10G SR, QSFP+ optical modules, etc. It is used for 10/40/100G Ethernet connection and is the preferred fiber jumper for 40/100G applications.

Specification Parameters

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	Bend-insensitive
Fiber Type	OM4 50/125μm	Wavelength	850/1300nm
Boot Type	12mm Boot	Outer Sheath Color	Aqua
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation @850nm	3.0dB/km	Attenuation @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
